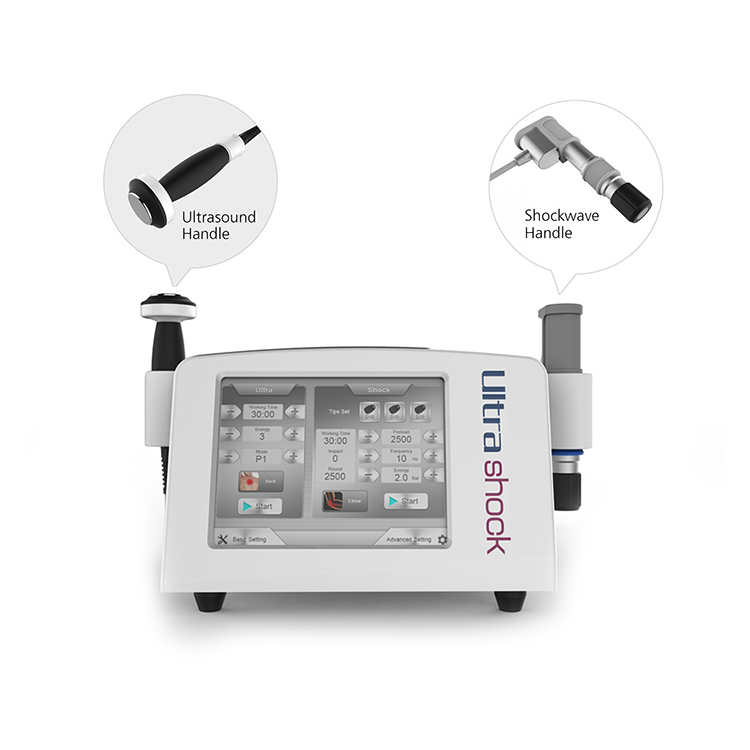

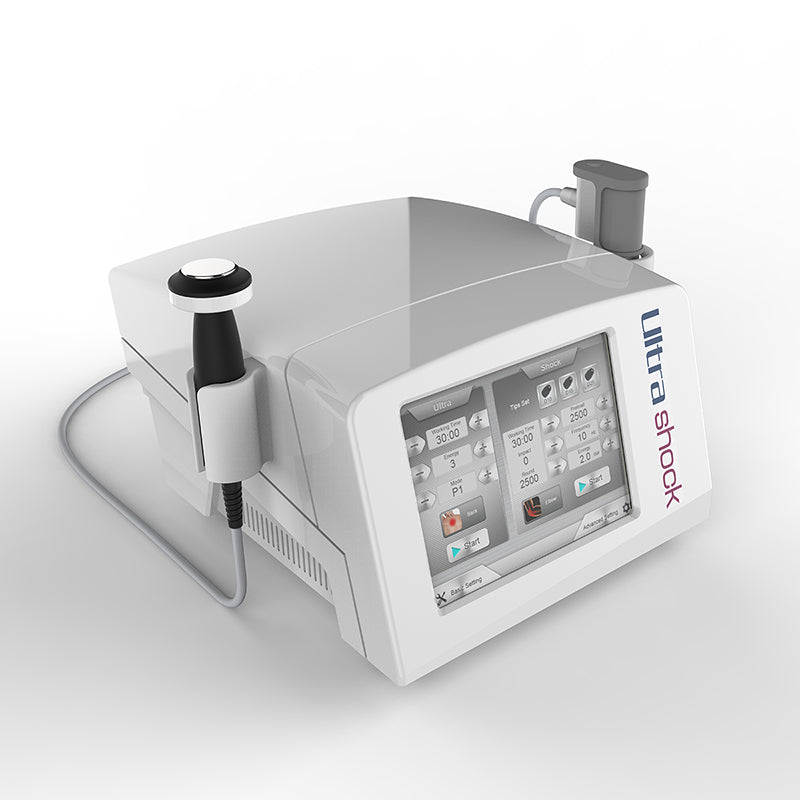

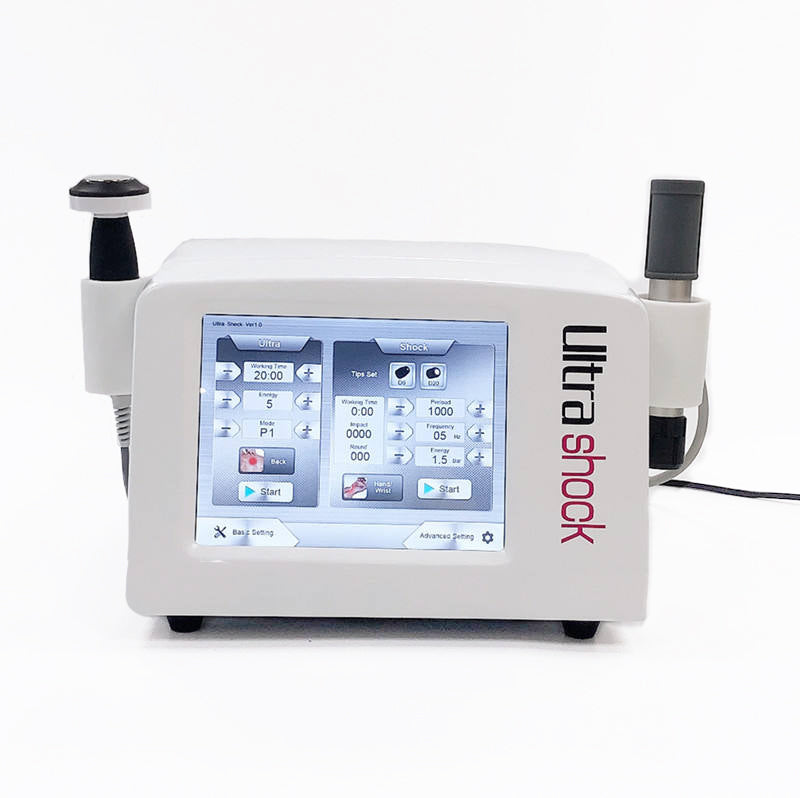

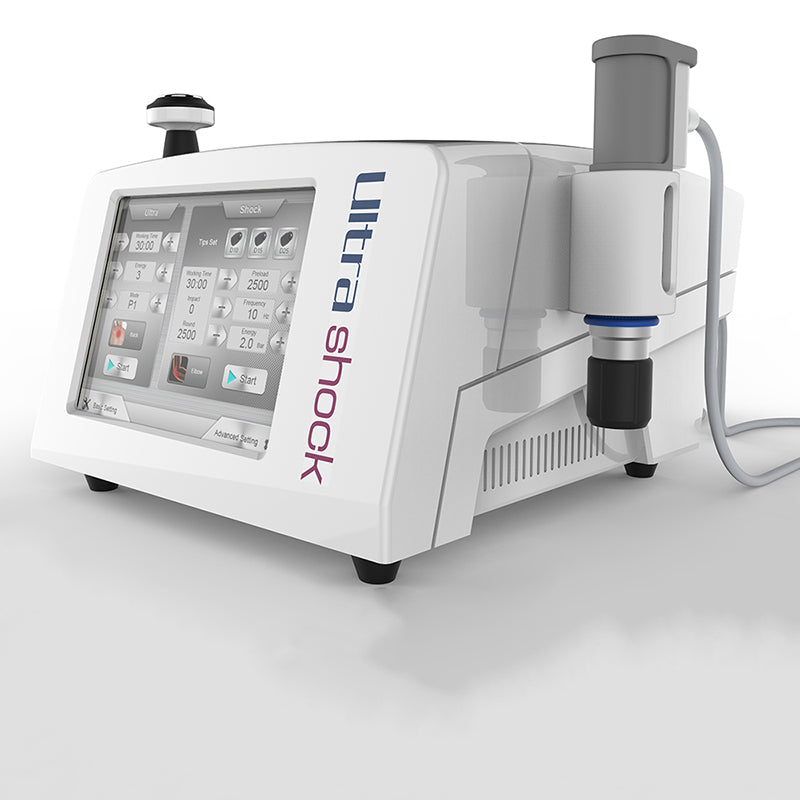

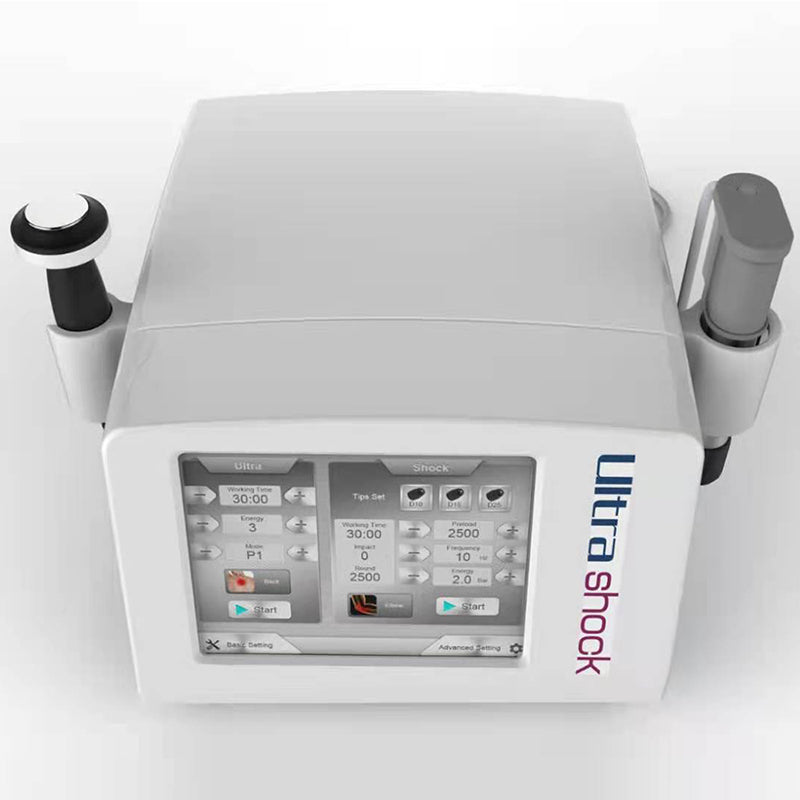

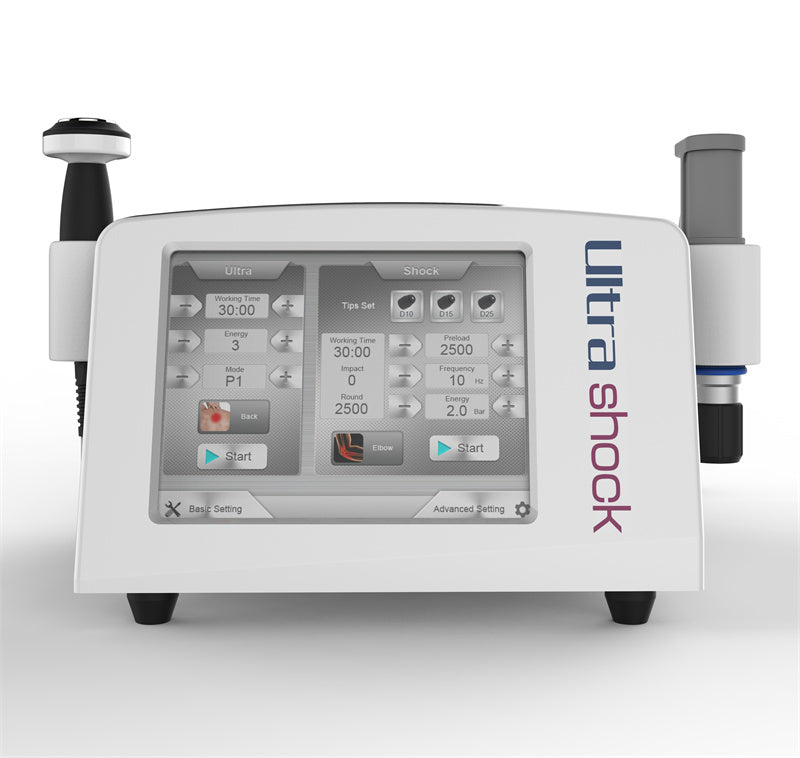

2IN1 Ultrashock Shockwave & Ultrasound Therapy Machine – Dual Technology Pain Relief & Rehabilitation System

The Ultrashock is a professional dual-technology therapy system combining pneumatic ballistic shockwave and therapeutic ultrasound. It is designed for pain relief, sports injury rehabilitation, and physiotherapy. The system features 12 interchangeable shockwave tips (flat, radial, focus) and a dedicated ultrasound handpiece for versatile clinical applications.

With 0.5–6 Bar energy, 1–21Hz frequency, and ultrasound levels 1–20, it provides non-invasive, safe, and effective treatments for musculoskeletal pain and tissue repair.

Installation Video

Specifications

Specification	Details
Shockwave Type	Pneumatic Ballistic
Shockwave Frequency	1–21 Hz
Shockwave Energy	0.5–6 Bar
Shockwave Tips	12 pcs (Flat, Radial, Focus)
Ultrasound Levels	1–20
Ultrasound Modes	P1–P6
Display	Touch screen Control
Voltage	AC110V/220V, 50/60Hz

Key Advantages

• 2-in-1 System: Combines pneumatic shockwave and therapeutic ultrasound.

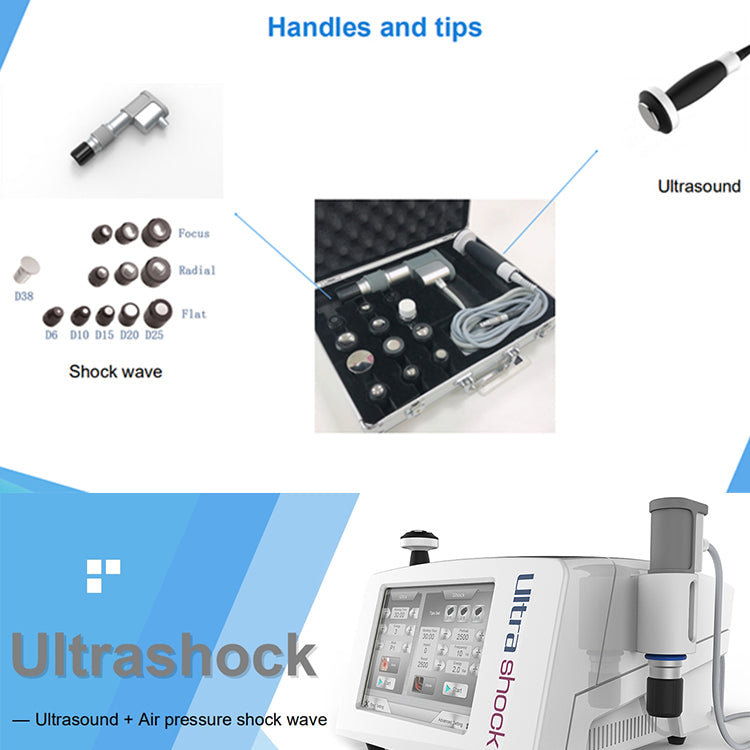

• 12 Shockwave Tips: Flat, radial, and focus heads for different depths and areas.
• Ultrasound Handpiece: Reduces inflammation, improves circulation, accelerates healing.
• Customizable Settings: Shockwave (1–21Hz, 0.5–6 Bar) and ultrasound (1–20 levels, P1–P6 modes).
• Non-invasive Therapy: Safe, painless, and drug-free treatment.
• Clinical Applications: Suitable for physiotherapy, rehabilitation, and sports medicine.

Principle

The Ultrashock uses pneumatic shockwaves to deliver mechanical pressure pulses into tissues, dissolving calcifications, stimulating collagen, and relieving chronic pain. Simultaneously, ultrasound waves create deep tissue vibrations that reduce inflammation, increase circulation, and accelerate healing.

How to Use

1. Connect shockwave and ultrasound handles.
2. Select appropriate tip (flat, radial, or focus) or ultrasound probe.
3. Apply gel to treatment area.
4. Set shockwave frequency (1–21Hz) and energy (0.5–6 Bar), or ultrasound level (1–20).
5. Press “Start” on touchscreen, move applicator slowly over treatment area.
6. After session, clean tips and probes with warm towel.

Typical Applications

• Chronic pain relief: shoulder pain, tennis elbow, plantar fasciitis
• Sports rehabilitation: shin splints, hamstring strain, jumper’s knee
• Joint therapy: hip pain, knee osteoarthritis, lumbar rehabilitation
• Trigger points: neck, back, calf stiffness
• Soft tissue repair: scar tissue, inflammation, post-surgery recovery

What’s in the Box

• 1 × Main Machine
• 1 × Shockwave Handle
• 1 × Ultrasound Handle
• 12 × Shockwave Tips (Flat, Radial, Focus)
• 1 × Accessory Frame
• 1 × Power Cable
• 1 × User Manual
