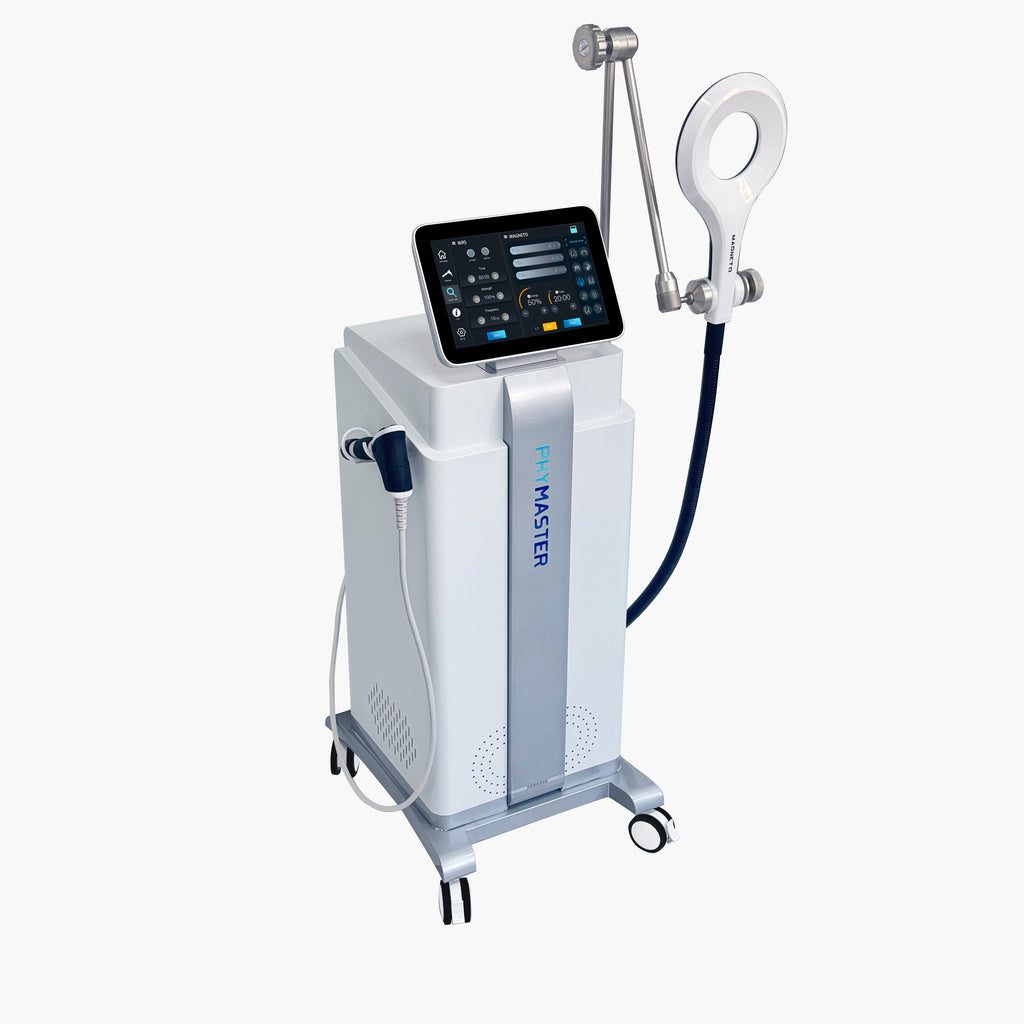

The EMTSL is a 3-in-1 physiotherapy system that combines pneumatic shockwave, magneto therapy, and cold laser therapy in a single device.
It delivers powerful, non-invasive treatments for pain relief, muscle relaxation, sports injury recovery, and rehabilitation.

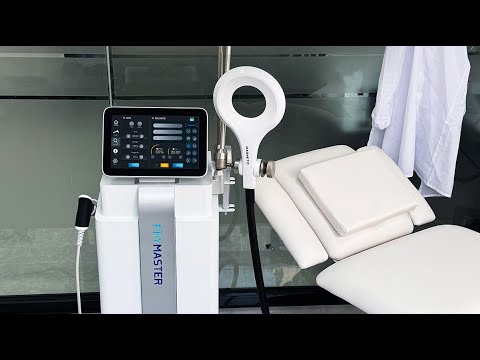

Installation Video
Specifications
| Specification | Details |
|---|---|
| Shockwave Energy | 0.1 – 10 bar adjustable |
| Shockwave Frequency | 1 – 21 Hz |
| Magneto Therapy | 100 – 300 kHz, penetration up to 18 cm |
| Laser Wavelength | 808 nm / 650 nm (NIRS cold laser) |
| Screen | 12.1-inch HD touchscreen |
| Shockwave Applicator Heads | 6 pcs, different sizes |
| Voltage | 100–130V / 220–240V, 50/60Hz |
| Product Size | 38 × 37 × 112 cm |
| Package Size | 64.5 × 54 × 114.5 cm |
| Gross Weight | ~76 kg |
| Warranty | 1 year (main host); 3 months (handles) |
| Certificates | CE & ROHS |
Key Advantages

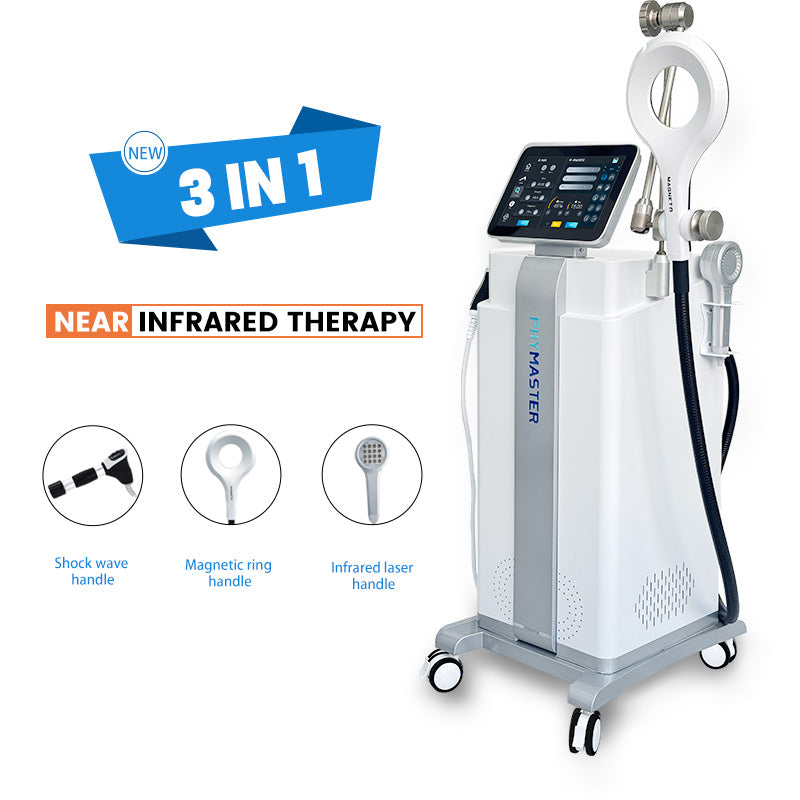

- 3-in-1 Function: Combines shockwave, magneto, and cold laser therapy in one system.
- Deep Treatment: Magneto therapy penetrates up to 18 cm, reaching muscles, bones & nerves.
- Comprehensive Coverage: 6 applicator heads for different body areas.
- Easy to Operate: 12.1-inch touch screen with simple interface.
- Safe & Non-invasive: No drugs, no downtime, short 5–20 min sessions.
- Professional Support: Lifetime online support and training included.
Principle
Shockwave Therapy: Pneumatic ballistic energy penetrates the fascia, improving blood circulation and relieving muscle tension.
Magneto Therapy: High-energy magnetic pulses synchronize with the body’s field, stimulating tissue regeneration.
Cold Laser (NIRS): Near-infrared light penetrates deep into tissues, promoting healing and reducing inflammation.
How to Use
- Connect the handpieces and power supply, then turn on the machine.
- Select treatment mode: Shockwave, Magneto, or Cold Laser.
- Choose the applicator head based on treatment area.
- Apply ultrasound gel to the target area.
- Adjust energy and frequency according to patient tolerance.
- Press “Start” on screen and begin treatment.
- After session, clean applicator heads and maintain bullet pipe.
Typical Applications
- Musculoskeletal Pain: plantar fasciitis, tennis elbow, shoulder pain, back pain.
- Sports Rehabilitation: injuries, inflammation reduction, faster recovery.
- Chronic Conditions: arthritis, neuropathic pain, delayed healing.
- Wellness & Aesthetics: collagen remodeling, improved skin elasticity.
Notes
- Not for pregnant women, children under 14, or patients with pacemakers.
- Avoid use on tumors, spine, or vascular disease areas.
- Always use with ultrasound gel for best effect.

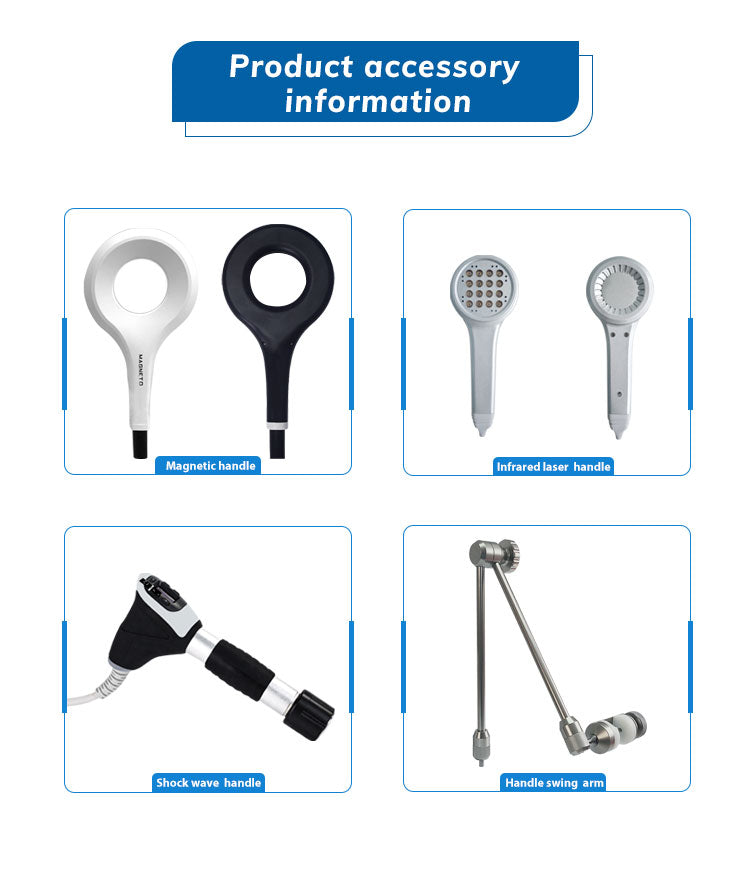

What’s in the Box
- Main Machine × 1
- Shockwave Handle × 1
- Magneto Therapy Handle × 1
- Cold Laser Handle × 1
- Shockwave Applicator Heads × 6
- Bullets × 2 (incl. 1 in handle)
- Handle Bracket × 1
- Holding Arm × 1
- Power Cable × 1
- Funnel & Hose × 1
- Brush + Small Iron Rod × 1
- User Manual × 1
Warranty & Support
1-year warranty for main unit; 3-month warranty for handles.
24/7 lifetime online support.
Training
Free 1-on-1 online training.
Certificate provided after completion.
Shipping
Worldwide delivery via FedEx / DHL / UPS.
DDP door-to-door service available on request.
CUSTOMIZATION & WHOLESALE
We support logo customization. Add your brand logo to the machine body or start-up screen for bulk/wholesale orders.
FAQ
Q: Is gel required?
A: Yes, ultrasound gel is needed for smooth energy conduction. Click here to order gel.
Q: What voltage does it support?
A: 110V / 220V 50/60Hz, plug type based on destination country.
Q: How deep does magneto therapy work?
A: Penetrates up to 18 cm, targeting muscle, bone, and nerve tissue.
Q: What is the warranty?
A: 1 year for host, 3 months for handles, plus lifetime online technical support.
