The CTM49 is a professional 360° cryolipolysis fat freezing system designed for non-invasive body slimming and contouring. It uses vacuum-assisted cooling technology to freeze and eliminate fat cells naturally through metabolic processes. With four 360° cooling handles, users can target multiple areas simultaneously with precise temperature control down to -13°C.
The system features a 10.4” color touchscreen, 1600W power output, and a water + air + semiconductor cooling system for efficient heat dissipation, ensuring stable operation during continuous sessions.
Installation Video

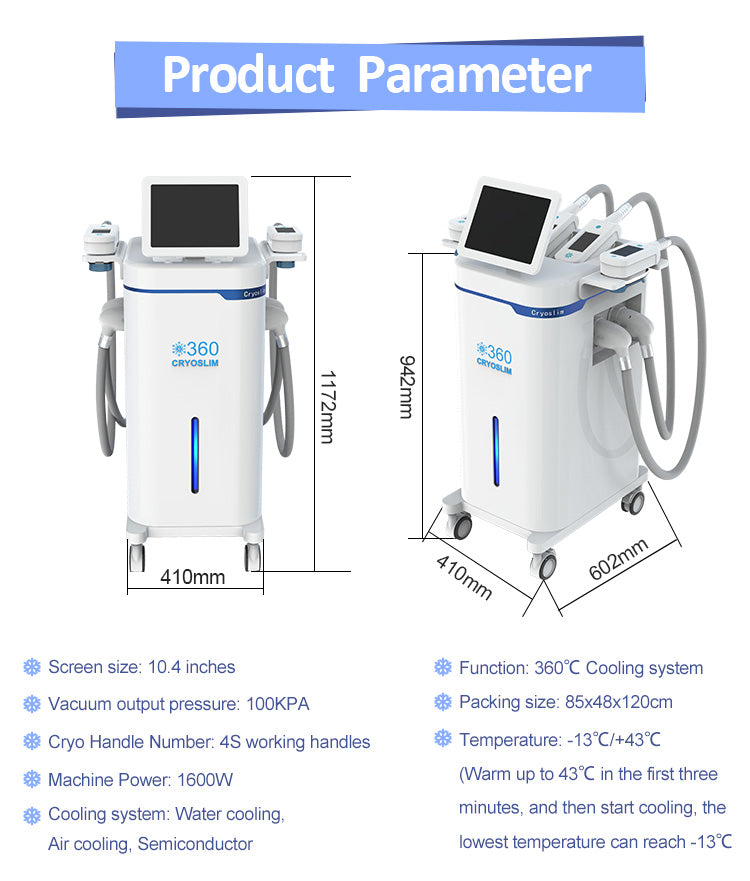

Specifications
| Specification | Details |
|---|---|
| Model | CTM49 |

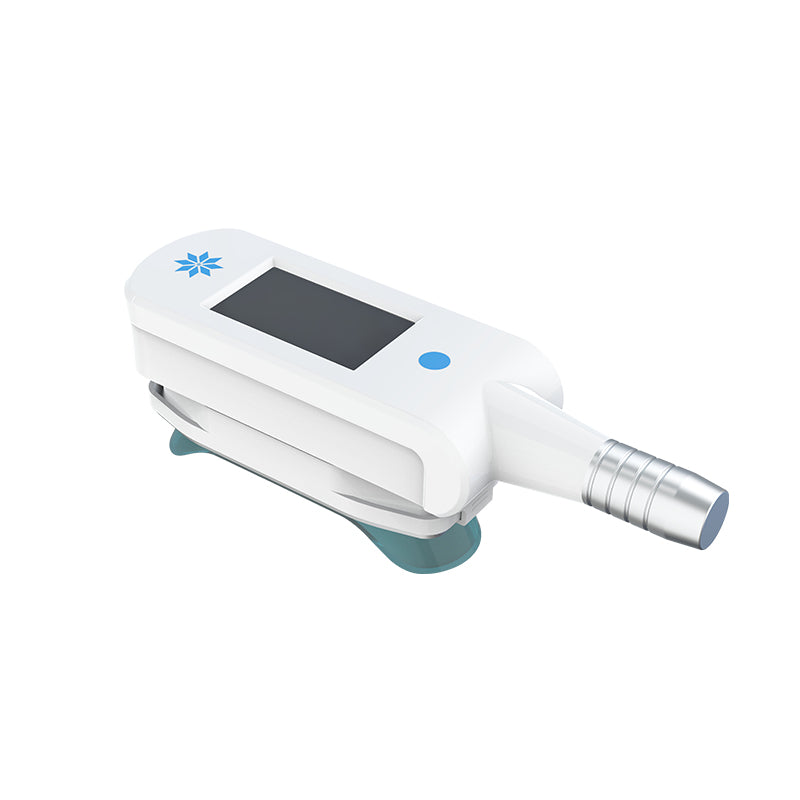

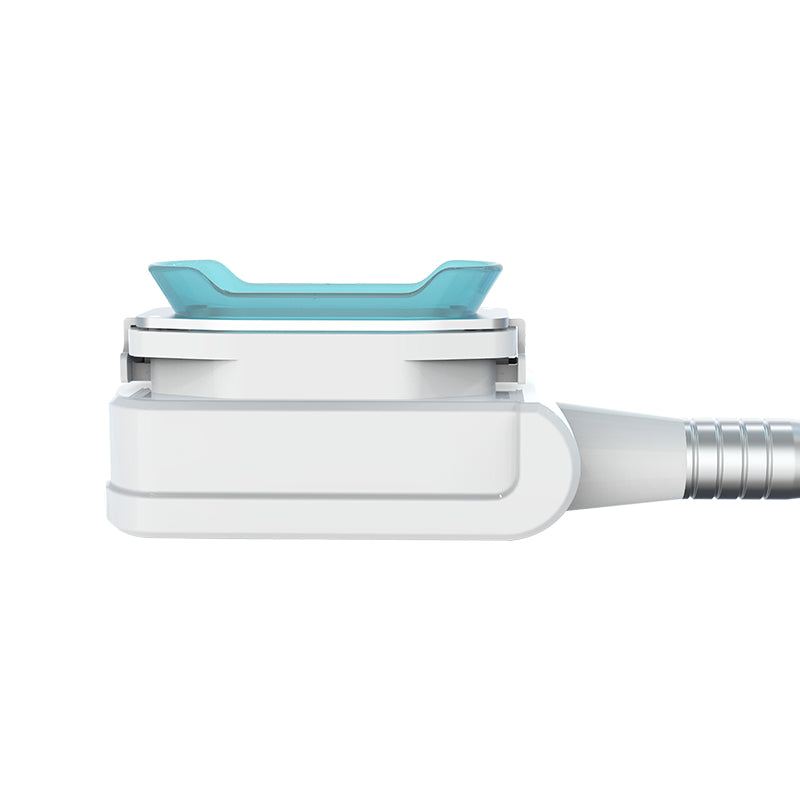

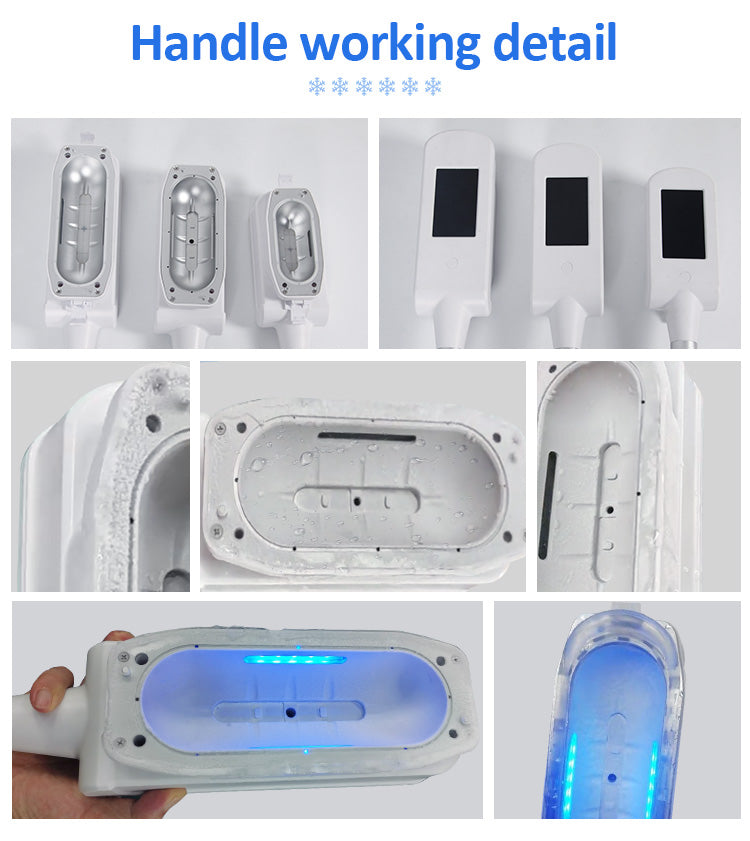

| Cryo Handle Number | 4 Working Handles (Large, Medium, Small) |

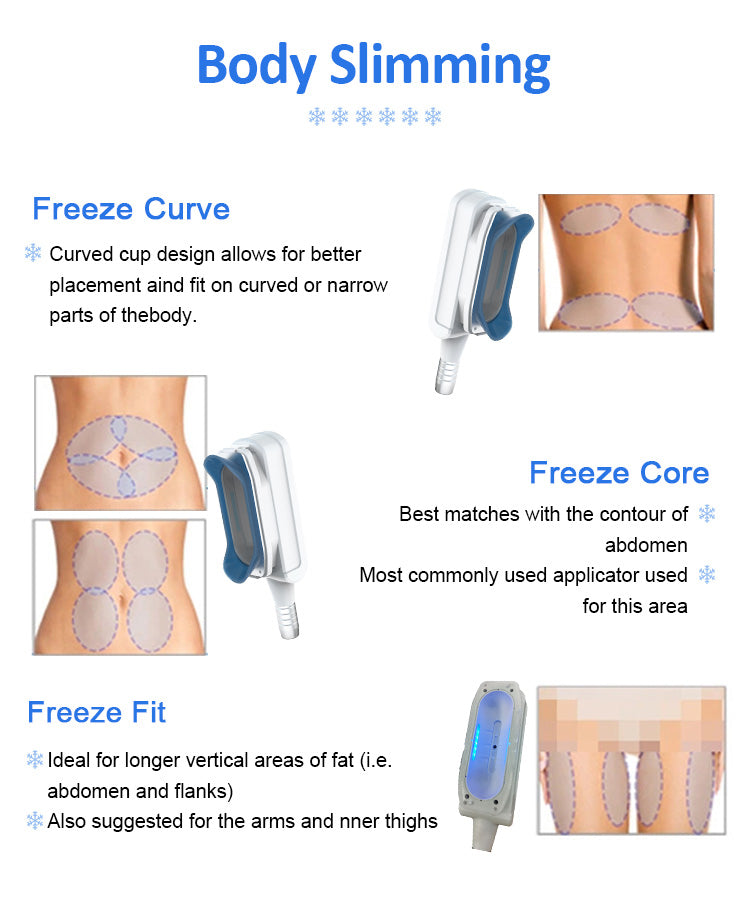

| Handle Sizes | Large: Belly/Back; Middle: Waist/Thigh; Small: Arms/Legs |
| Display | 10.4” Touchscreen |
| Cooling Temperature | -13°C (Warm up to 43°C for 3 min, then cooling) |
| Vacuum Output | 0–100 KPa Adjustable |
| Working Time | 0–60 Minutes Adjustable |
| Cooling System | Water + Air + Semiconductor |
| Cooling Liquid | Pure Water (9L Tank) |
| Power | 1600 W |
| Voltage | AC 110V/220V, 50/60Hz |
| Package Size | 85 × 48 × 120 cm |
Key Advantages
- 360° Cooling Plates: Full-area freezing for consistent temperature and better fat reduction results.
- Four Working Handles: Treat up to four body parts simultaneously for maximum efficiency.
- Smart Temperature Control: Dual-phase operation: preheat to 43°C, then cool to -13°C.
- Large 10.4” Display: Touchscreen interface with multilingual support.
- 9L Water Cooling System: Ensures long, stable operation with automatic flow detection.
- Non-invasive: No anesthesia, no downtime, safe for all skin types.
Principle
The CTM49 adopts the principle of cryolipolysis (fat freezing), using controlled cooling to target fat cells without harming surrounding tissues. Triglycerides in fat crystallize at low temperatures, leading to natural apoptosis (cell death). The body then metabolizes and eliminates the treated fat cells, achieving a slimming and contouring effect over time.
How to Use
- Check fat thickness with calipers to ensure suitability.
- Clean and mark the treatment area.
- Apply antifreeze membrane on the skin.
- Set temperature (0°C to -13°C), time (30–60 min), and vacuum level.
- Attach the cryo handle and press the start button.
- After treatment, perform a light massage for 5–10 minutes.
- Clean handle surfaces after use.

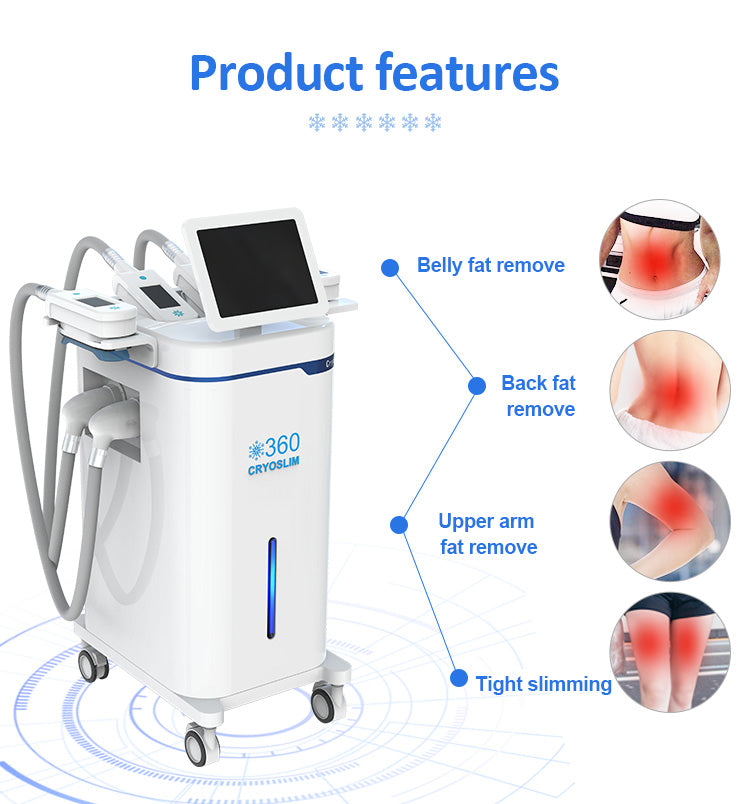

Typical Applications
- Belly & Abdomen: Reduce stubborn fat and improve waistline.
- Thighs & Hips: Target cellulite and reshape curves.
- Arms & Back: Tone and slim difficult areas.
- Chin & Jawline: Double-chin contouring and tightening.
- Buttocks: Lift and smooth body profile.
What’s in the Box

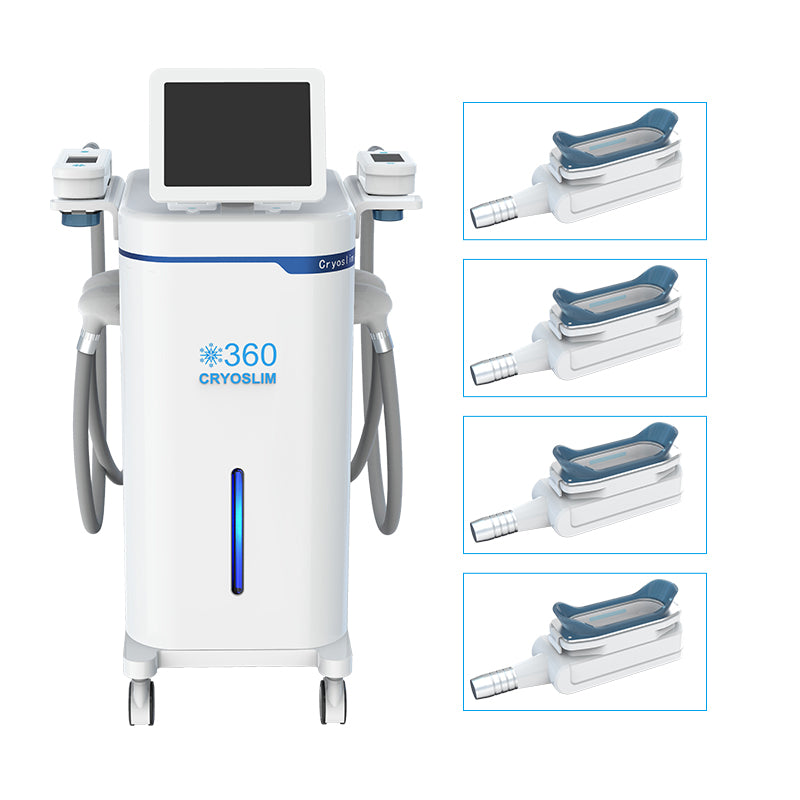

- 1 × CTM49 Main Machine
- 4 × 360° Cryo Handles (S / M / L)

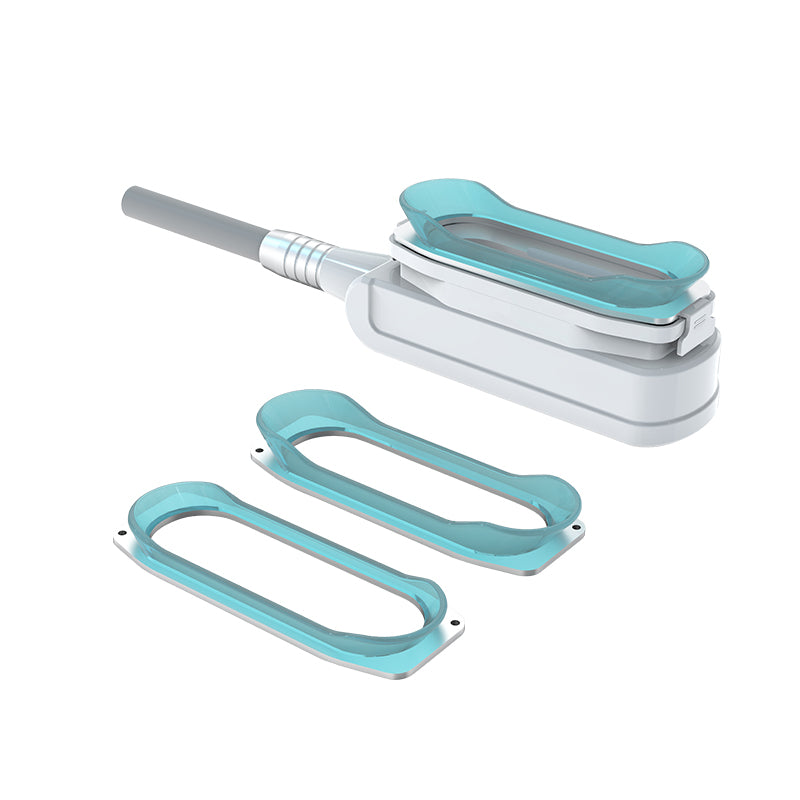

- 9 × Interchangeable Handle Cups
- 1 × Power Cord
- 1 × Set of Filters
- 1 × Water Inlet / Outlet Tubes
Warranty & Support
2-year warranty for main unit.
24/7 technical support.
Training
Free online 1-on-1 training with certification after completion.
Shipping
Worldwide shipping via DHL / FedEx / UPS.
DDP door-to-door service available on request.
CUSTOMIZATION & WHOLESALE
We offer full logo customization and branding options on both the machine body and the startup interface for distributors and OEM clients.
FAQ
Q: How many handles can work at the same time?
A: Up to four handles can operate simultaneously on different body parts.
Q: What’s the lowest cooling temperature?
A: Down to -13°C after a 3-minute preheating phase.
Q: Is antifreeze membrane necessary?
A: Yes, always use a qualified antifreeze membrane to avoid frostbite.
Q: What’s the power requirement?
A: 1600W, AC110/220V, 50/60Hz.
