The SW7 is a professional electromagnetic radial shockwave therapy system designed for pain relief, rehabilitation, and physiotherapy. It features a water-cooled integrated emitter and delivers up to 50J of energy with smart CRS tracking, making it ideal for clinics and sports centers.
12 preset treatment zones and a 10.1” Android touch screen support multi-language operation and enable smart data tracking.
Video
Specifications
| Specification | Details |
|---|---|
| Shockwave Type | Electromagnetic |
| Energy | 4.5–50 J (Capacitor Stored) |
| Penetration Depth | 0–66 mm |
| Pulse Frequency | 60–120 pulses/min |
| Display | 10.1” Android Touchscreen (800×1280) |
| Cooling System | Closed-loop Water Cooling |
| Voltage | AC110V/220V ±10%, 50/60Hz |
| Power | ≤550 VA |
| Handle Lifespan | 500,000+ shots |
| Pump Lifespan | 6000+ hours |
| Certificates | CE, ISO13485 |
Key Advantages
- Electromagnetic Technology: Consistent and powerful shockwave output with 50J energy.
- Water Cooling System: Keeps emission stable during long-term clinical operation.
- Smart CRS Tracking: Manages users, sessions, and consumables automatically.
- Android Interface: Easy navigation, upgradeable via WiFi.

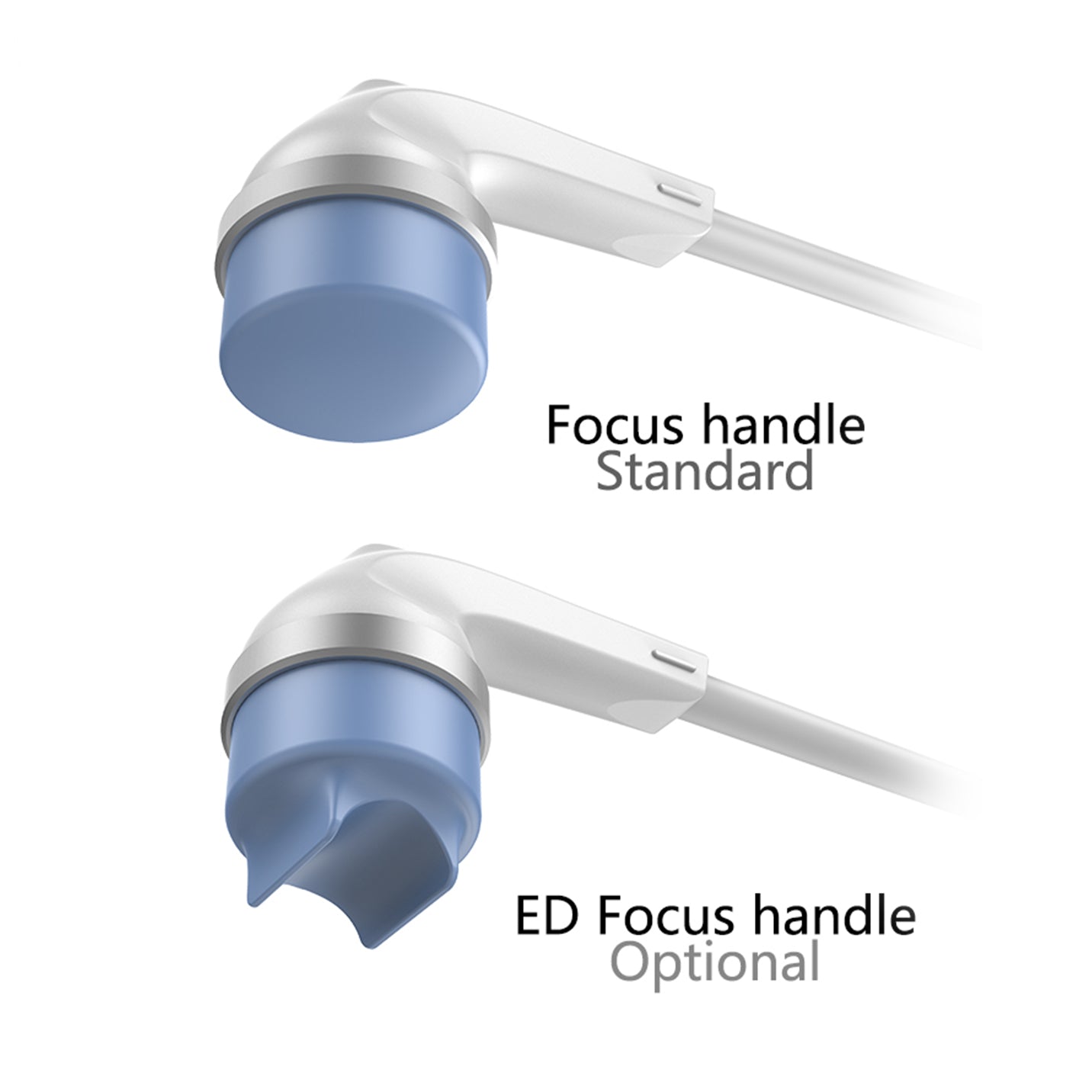

- 12 Preset Zones: Head-to-toe coverage including ED treatment (optional).
- Low Maintenance: Durable consumables and modular parts design.
Principle
The SW7 emits shockwaves generated by electromagnetic force through a water membrane and metal diaphragm. These waves trigger mechanical stress, cavitation, and neurovascular stimulation, promoting blood flow, relieving pain, relaxing soft tissue, and accelerating healing.
How to Use
- Fill water into the space cup using the funnel.
- Plug in power cord and connect focus handle.
- Turn on the switch, scan QR code to activate system.
- Enter activation + consumable code shown on handle.
- Click “AIR BUBBLES” to remove trapped air.
- Select treatment area (R1–R12) from screen presets.
- Adjust energy, frequency, swelling level.
- Click Standby → Ready → Press handle button to start.
- Click “DRAINAGE” after session to empty water sac.
Typical Applications
- Chronic pain relief: arthritis, tendonitis, frozen shoulder
- Sports rehabilitation: muscle tightness, injury recovery
- Trigger point therapy: neck, back, calf stiffness
- ED therapy: optional male function program
- Mobility support: tissue repair, nerve stimulation
What’s in the Box
- 1 × SW7 Main Machine
- 1 × Electromagnetic Focus Handle
- 1 × Funnel + Space Cup (Water Filling)
- 1 × Power Cord
- 1 × English User Manual
Warranty & Support
2-year warranty for the main unit.
24/7 online technical support.
Training
Free 1-on-1 online training.
Certificate provided after completion.
Shipping
Worldwide delivery via FedEx / DHL / UPS.
DDP door-to-door service available on request.
CUSTOMIZATION & WHOLESALE

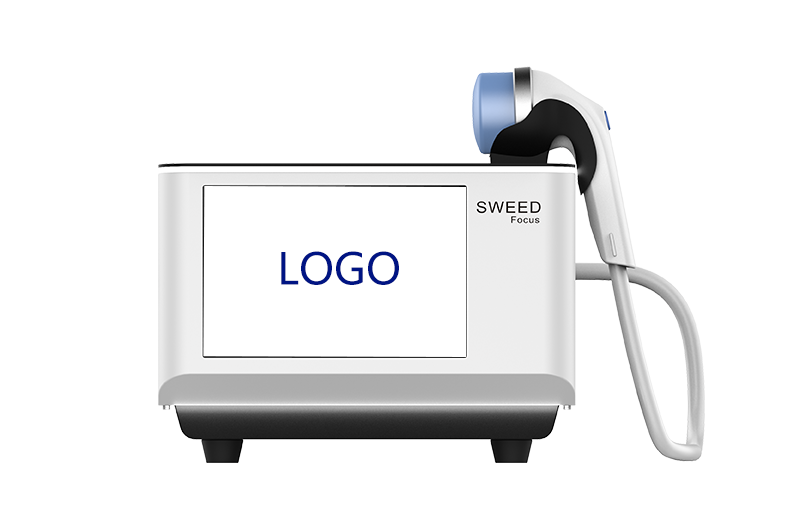

We fully support logo customization and can add your brand logo to the machine body and/or the start-up screen for most all of our professional machines.
FAQ
Q: Is the handle lifespan tracked automatically?
A: Yes, the CRS system logs usage and alerts when replacement is needed.
Q: Can I update the software?
A: Yes, the device supports WiFi-based remote upgrade functions.
Q: What liquid is used for cooling?
A: Only purified or distilled water is allowed.
Q: Do I need to remove air before starting?
A: Yes, always click "AIR BUBBLES" before treatment to ensure accurate energy output.
