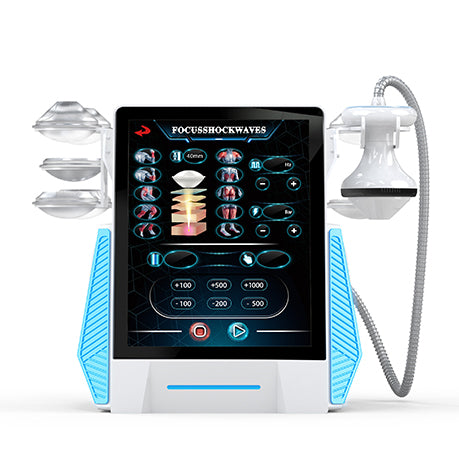

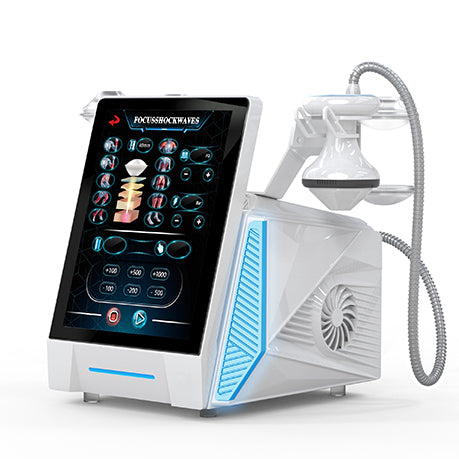

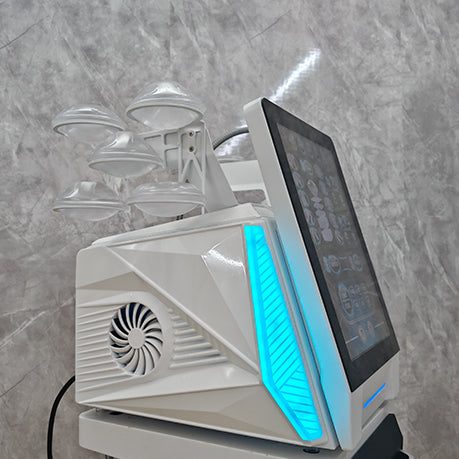

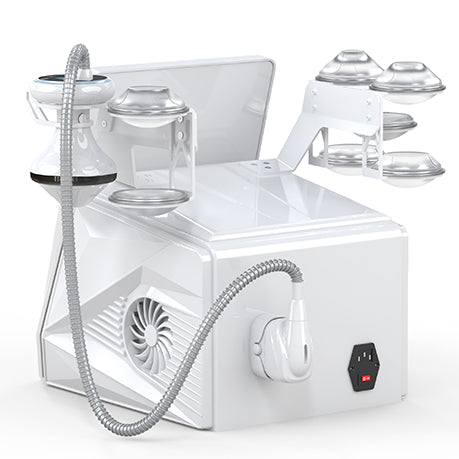

The Focus Shockwaves is a professional piezoelectric focused shockwave therapy system designed for pain relief, rehabilitation, and physiotherapy. It features 7 replaceable silicone pad probes with adjustable penetration depth from 4–66mm, delivering accurate and safe treatment for deep tissues.
15-inch capacitive touchscreen supports intelligent control, with user-friendly operation and multi-parameter adjustment for various clinical applications.
Installation Video
Specifications
| Specification | Details |
|---|---|
| Shockwave Type | Piezoelectric Focused Shockwaves |
| Penetration Depth | 4–66 mm (7 replaceable silicone pads) |
| Pulse Frequency | 1–10 Hz |
| Strength | 1–8 Bar |
| Display | 15” Capacitive Touchscreen |
| Voltage | AC100–240V, 50/60Hz |
| Power | 10–500 W |
| Noise Level | Ultra-quiet, low vibration |
Key Advantages
- Piezoelectric Technology: Provides high-intensity focused energy with precision.

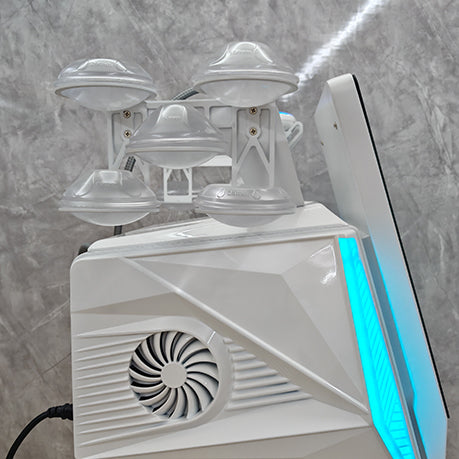

- 7 Silicone Pads: Adjustable penetration depth 4–66mm for targeted treatment.
- Non-invasive & Green Therapy: Safe, painless, no downtime required.
- Ultra-Quiet Design: Low noise and vibration for patient comfort.
- 15-inch Touchscreen: Easy-to-use interface with customizable parameters.
- Fast Results: Each treatment lasts 10–15 minutes with immediate effect.
Principle
The Focus Shockwaves system uses a piezoelectric shockwave source to generate focused shock waves that penetrate skin and soft tissues. The energy stimulates new blood vessel growth, accelerates tissue repair, relieves chronic pain, breaks calcification, and promotes musculoskeletal recovery.
How to Use
- Install hanger and connect the handpiece.
- Insert power cord and turn on the main switch.

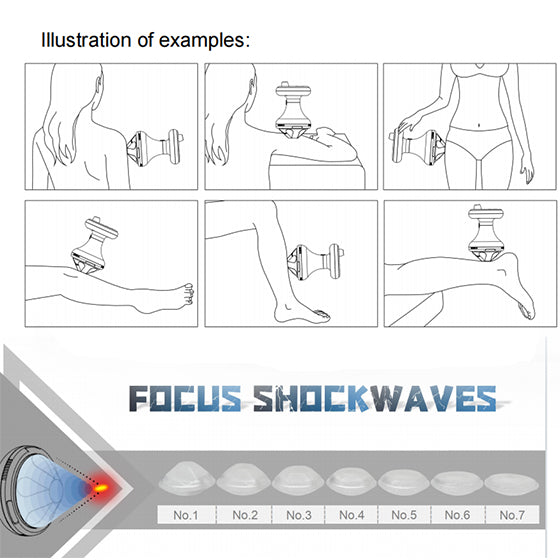

- Select appropriate silicone pad (No.1–No.7) for desired penetration depth.
- Apply gel coupling agent to treatment area.
- Adjust frequency (1–10Hz) and strength (1–8 Bar) on touchscreen.
- Press handle button to start treatment, move slowly over trigger points.
- After session, remove gel, clean silicone pad and handpiece.
Typical Applications
- Orthopedics: fracture recovery, arthritis, ligament injuries
- Sports Medicine: muscle strain, shin splints, hamstring injuries
- Chronic Pain: shoulder pain, tennis elbow, lumbago, plantar fasciitis
- Rehabilitation: nerve injury, post-surgical recovery
- Trigger Point Therapy: neck, back, hip, and knee pain
Warranty & Support
1-year warranty for host.
3-month warranty for accessories.
24/7 online support.
Training
Free 1-on-1 online training.
Certificate after completion.
Shipping
Worldwide delivery via FedEx / DHL.
Aluminum box packaging for safe transport.
CUSTOMIZATION & WHOLESALE
We fully support logo customization and can add your brand logo to the machine body and/or the start-up screen for most all of our professional machines.
FAQ
Q: How many silicone pads are included?
A: The device comes with 7 replaceable pads for depths from 4–66mm.
Q: Is it painful?
A: No, the piezoelectric system reduces skin surface pain, making treatment comfortable.
Q: Can the software be updated?
A: Yes, via built-in system updates.
Q: How long is one treatment session?
A: Around 10–15 minutes per area, depending on condition.
