The B51 is a professional ice-sculpture board cryotherapy system designed for non-vacuum fat reduction, body contouring, and aesthetic cryo care. It uses flat cooling plates to deliver controlled cold exposure down to -11 °C, encouraging adipocyte apoptosis with comfortable, even contact—ideal for medspas and clinics.
1–8 configurable cryo boards and a 10.4” LCD screen support straightforward operation and session tracking for multiple body areas.
Video
Specifications
| Specification | Details |
|---|---|
| Therapy Type | Cryotherapy (Flat Cooling Boards) |
| Cooling Temperature | 0 °C to -11 °C |
| Preheating Temperature | 37 °C to 45 °C (≈3 min preheat) |
| Handles | 1–8 Flat Cryo Boards (select per treatment area) |
| Display | 10.4” LCD |
| Output Power | 1000 W |
| Input Voltage | AC 110 V / 220 V |
| Fuse | 15 A |
| Host Size | 57(L) × 34.5(W) × 41.5(H) cm |
| Gross Weight | 45.5 kg |
| Package Size | 66 × 43 × 76.5 cm |
Portable Ice Sculpture Board Fat Reduction Cryotherapy Cellulite Removal Body Sculpt Slimming Machine
Working mechanism
The ideal temperature from -5℃ to -11℃ which can induce adipocyte apoptosis is cooling energy to achieve non-invasive and powerful lipid-lowering.Different from adipocyte necrosis, adipocyte apoptosis is a natural form of cell death. It’s to maintain the stability of the internal environment. Cells die in an autonomous and orderly manner, thereby effectively reducing fat cells without causing damage to surrounding tissues.
1.The treatment head is attached to the treatment area. 2. The cooling energy treats the target fat layer without damaging. 3. Damaged fat cells are broken down and cleared through the natural body process (apoptosis).
Where are the fat cells?
The fat cells killed by apoptosis are absorbed by macrophages and are excreted from the body as waste products through the body.
● Non-vacuum application provides a very comfortable cooling treatment without the edema and bruising caused by inhalation of the cryolipolysis vacuum cup.
● The flat design ensures a stable and flat surface for a wide range of applications on the body. The handle is effective even in hard-to-reach areas of the upper arm.
● It is suitable for flat areas, widely used on multiple parts of the body.

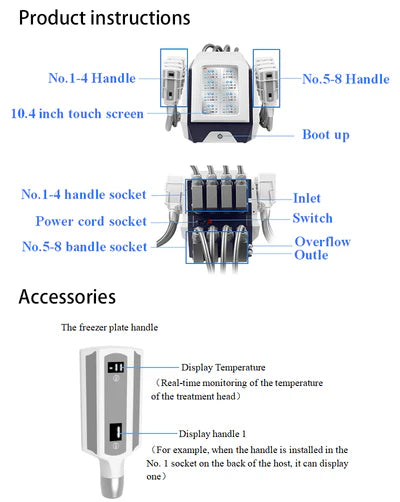

Operation use

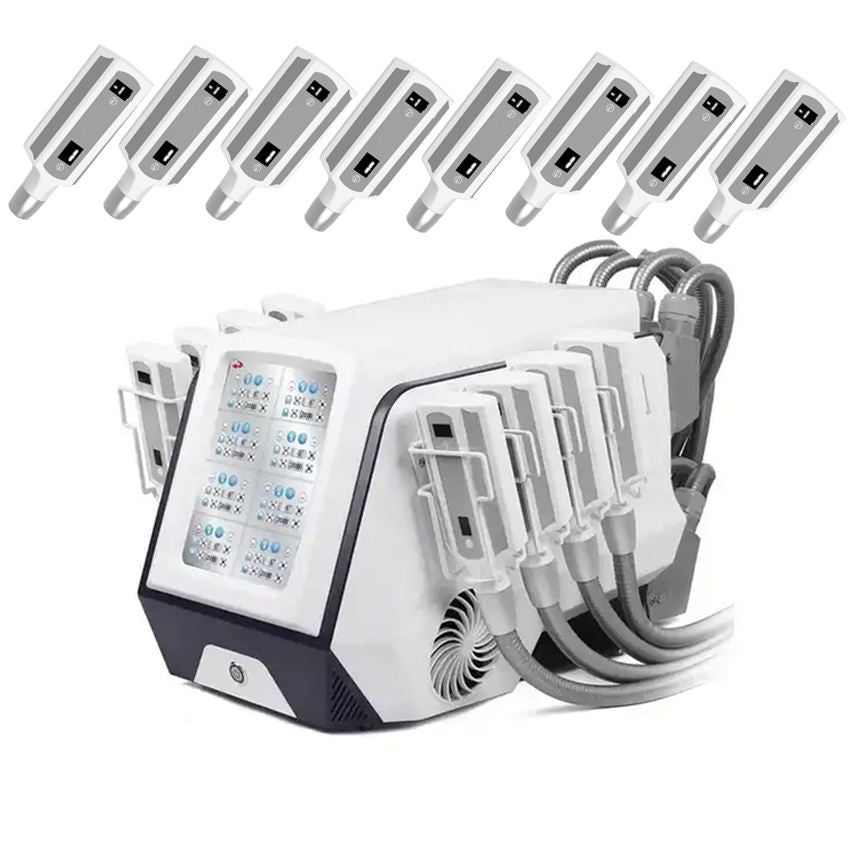

Choose from 1 to 8 handles depending on the size of the fat area.
Before and after use
Key Advantages
- Non-Vacuum Comfort: Flat plates provide even cooling without the edema or bruising sometimes caused by vacuum cups.
- Even Coverage: Board design sits stably on broad or hard-to-reach areas (e.g., upper arms).
- Scalable Setup: Choose 1–8 handles to match the treatment zone size.
- Quick Preheat: Built-in preheating (37–45 °C) helps prepare tissue before cooling.
- Simple Interface: Large 10.4” screen streamlines parameter setting & tracking.
- Clinic-Ready: Robust 1000 W output for professional, repeated sessions.
Principle
The B51 applies controlled contact cooling via flat cryo boards. Targeted cold exposure encourages adipocyte apoptosis while protecting surrounding tissues. Over time, the body’s metabolic processes clear affected fat cells, supporting circumference reduction and contouring outcomes.
How to Use
- Power on the device and select the number of boards (1–8) for the target area.
- Set preheat (if desired), then choose target cooling temperature and session time.
- Position boards flush on the treatment area and secure with straps for full contact.
- Start the session; monitor comfort and skin condition throughout.
- On completion, remove boards, clean the skin and wipe down handles per protocol.
Typical Applications
- Localized fat reduction: abdomen, flanks, thighs, arms, back
- Body contouring: waist shaping and circumference management
- Cellulite appearance support: smoothing effect with repeated use
- Post-training cool care: localized cooling for recovery routines
Warranty & Support
2-year warranty; lifetime online technical support.
Training
Free online training and protocol guidance; certificate available.
Shipping
Worldwide delivery via FedEx / DHL / UPS; DDP available on request.
CUSTOMIZATION & WHOLESALE
OEM/ODM available: add your brand logo on the body or start-up screen. Distributor programs and bulk pricing available.
FAQ
Q: How many boards can I use at once?
A: You can select from 1 to 8 boards depending on the area size.
Q: What’s the temperature range?
A: Cooling from 0 °C to -11 °C with an optional 37–45 °C preheat.
Q: Is vacuum suction used?
A: No. This system uses flat contact cooling for comfortable, even treatment.
Q: Do you offer DDP shipping and training?
A: Yes. DDP is available on request, and free 1-on-1 training is provided.
