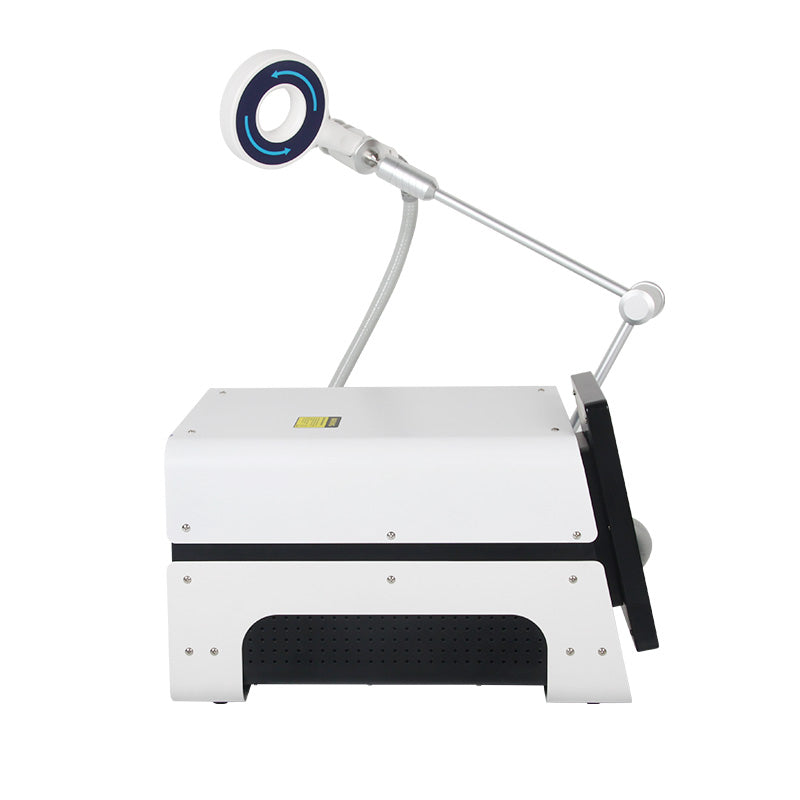

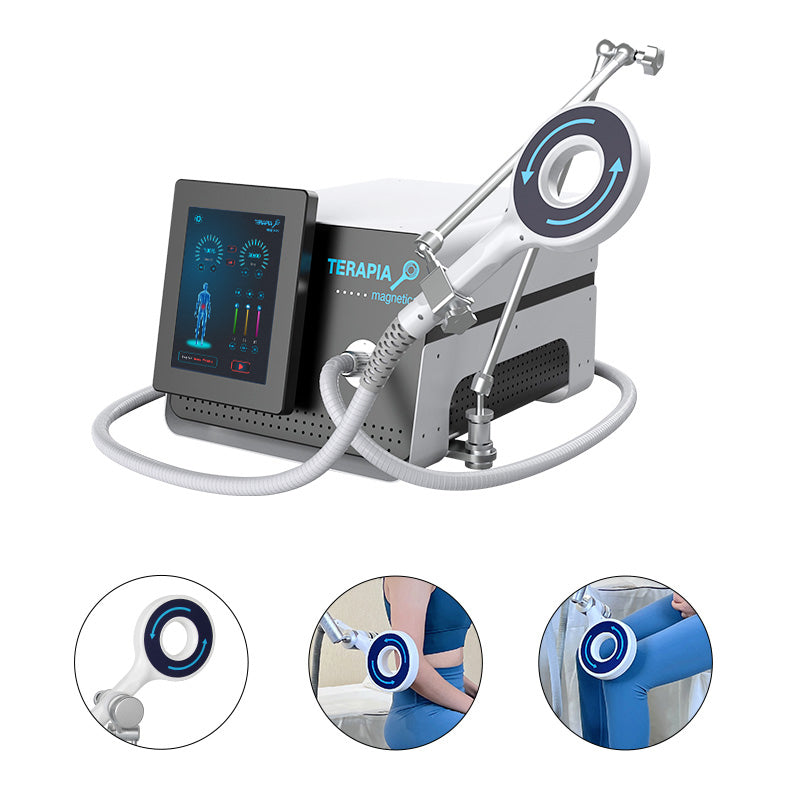

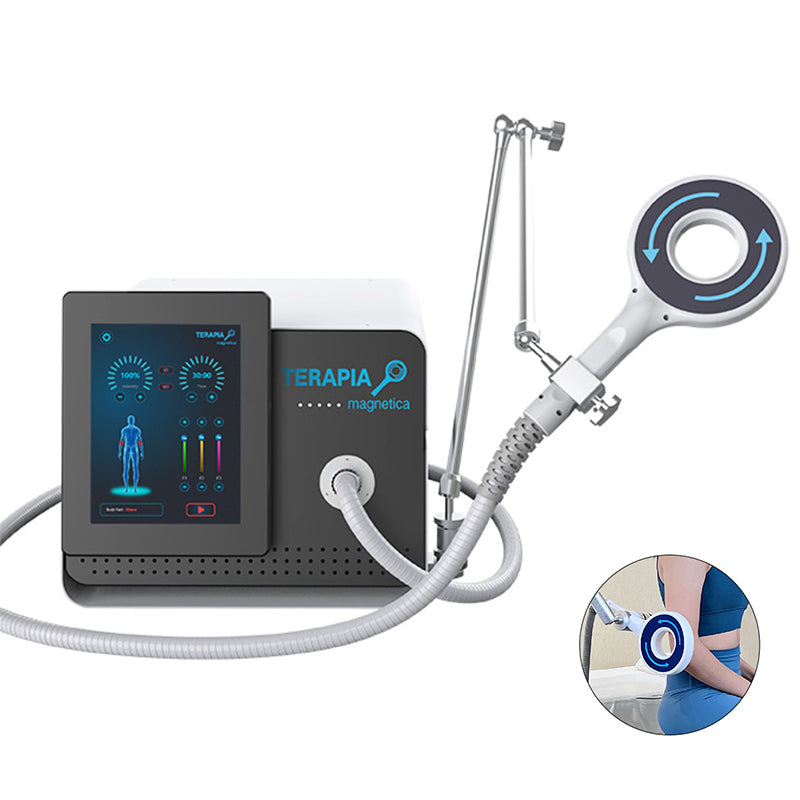

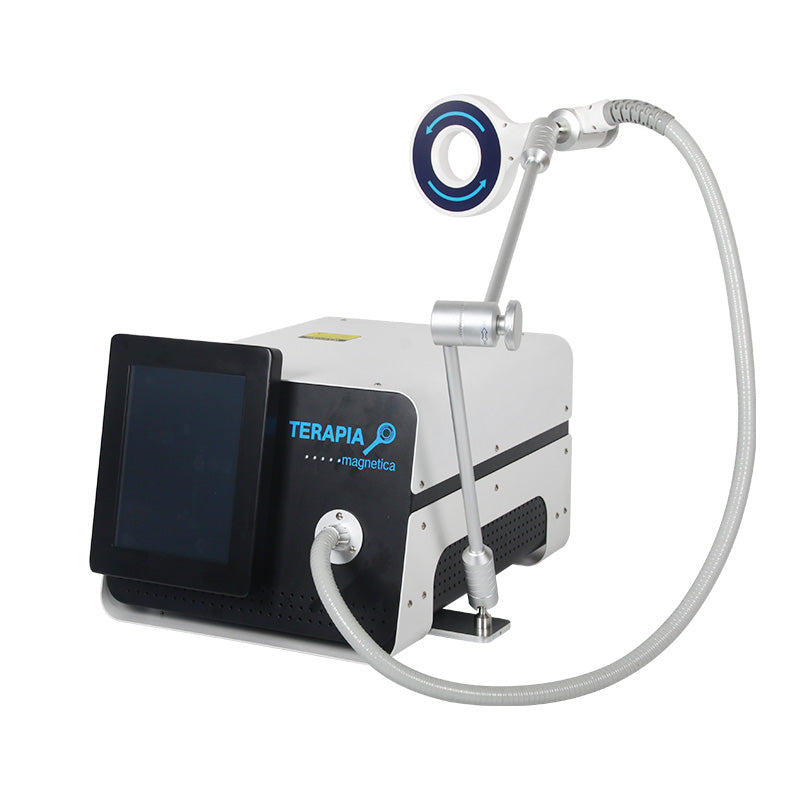

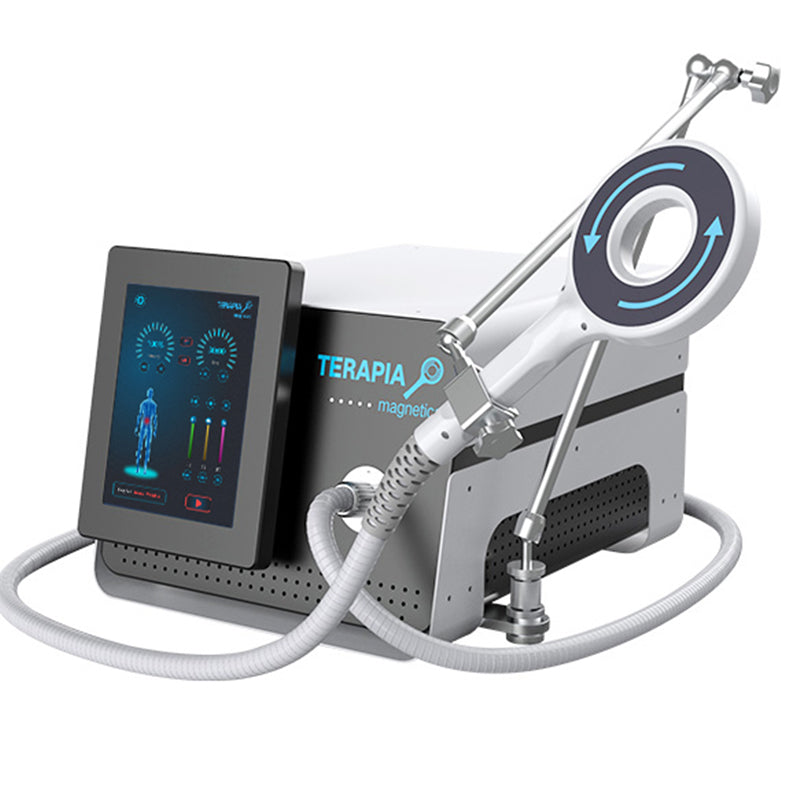

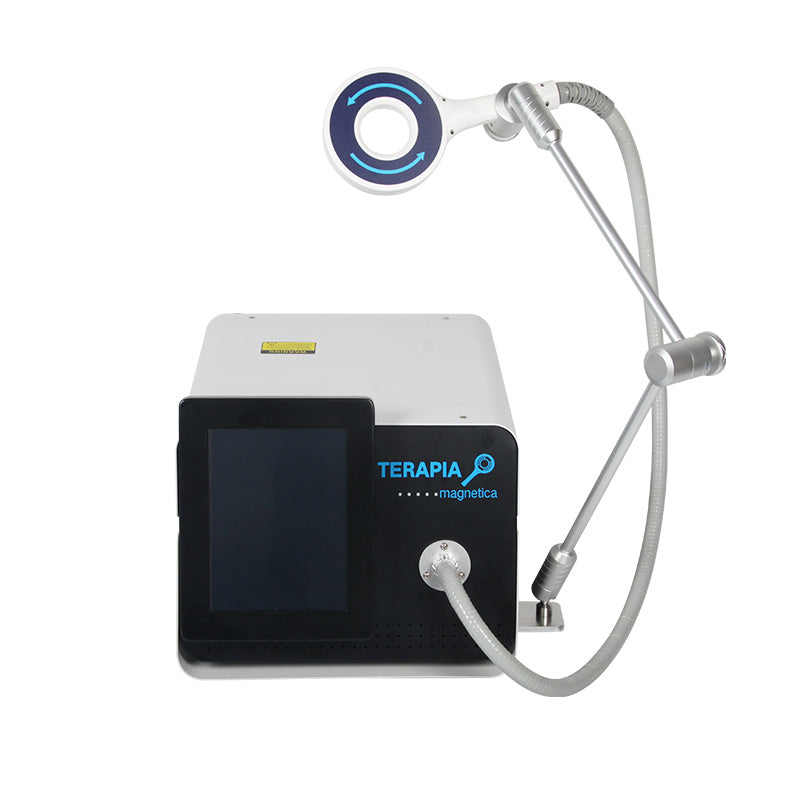

The MS-35 PRO is a professional pulsed electromagnetic magnetic therapy system designed for physiotherapy, rehabilitation, and pain management. It delivers 6 Tesla high-intensity stimulation with a frequency range of 0.01–100Hz, penetrating deeply into nerves and muscles without direct skin contact.
The system features a 12.1” capacitive touch screen and a 360° adjustable support arm, making it ideal for clinics, rehabilitation centers, and sports medicine practices.
Installation Video
Specifications
| Specification | Details |
|---|---|
| Magnetic Induction Intensity | 6 Tesla |
| Frequency | 0.01 – 100 Hz |
| Pulse Continuous Time | ≥340 μs (±20 μs) |
| Max Magnetic Change Rate | ≥40kT/s – 80kT/s |

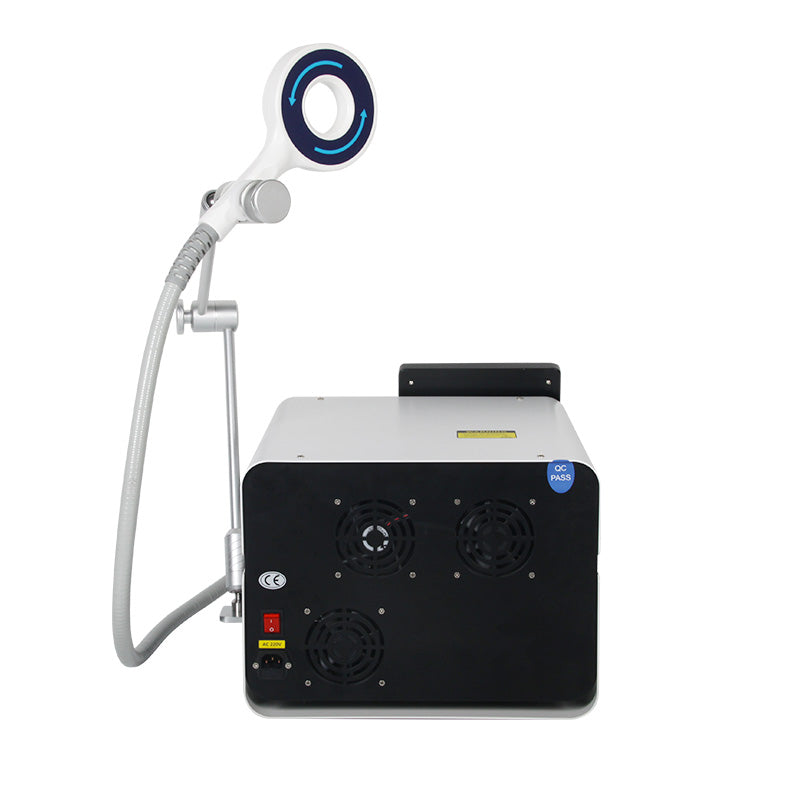

| Cooling System | Air Cooling |
| Display | 12.1” Capacitive Touchscreen |
| Voltage | AC110V/220V, 50–60Hz |
| Package Size | 66 × 58 × 43 cm (aluminum box) |
| Weight | 28 kg (Gross) |
| Stimulation Depth | Up to 8 cm |
| Certificates | CE, ISO13485 |
Key Advantages
- High Power 6T: Effective deep nerve and muscle stimulation up to 8 cm.
- Non-invasive & Painless: Works through clothing without electrodes.
- Air Cooling System: Reliable heat dissipation with zero maintenance cost.
- Smart Operation: 3-step quick setup with Auto/Manual modes.
- Comfortable Pulse: Progressive wave design ensures painless experience.

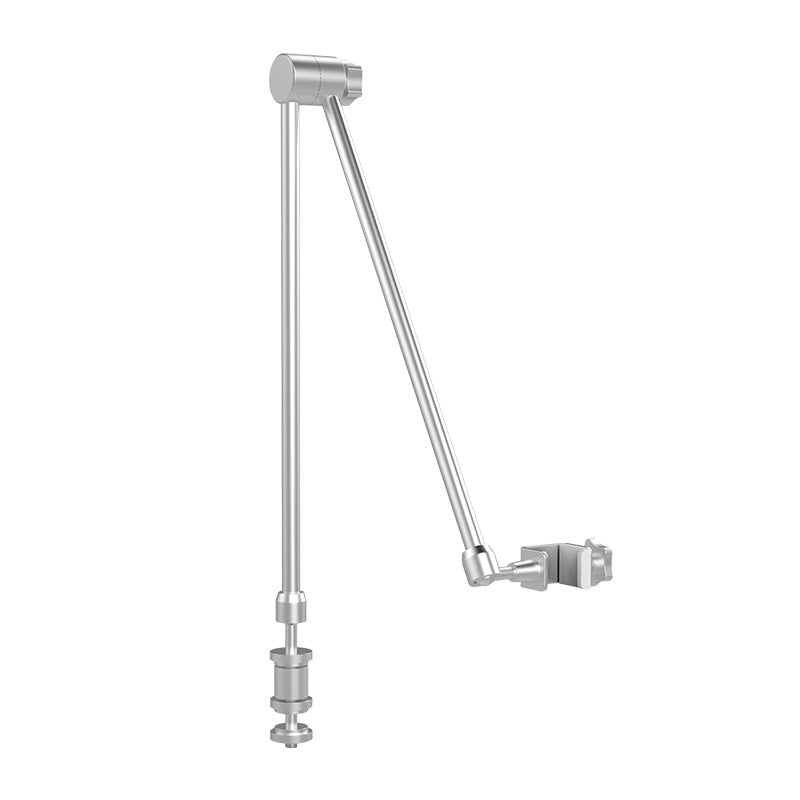

- Flexible Use: 360° telescopic support arm for precise positioning.
Principle

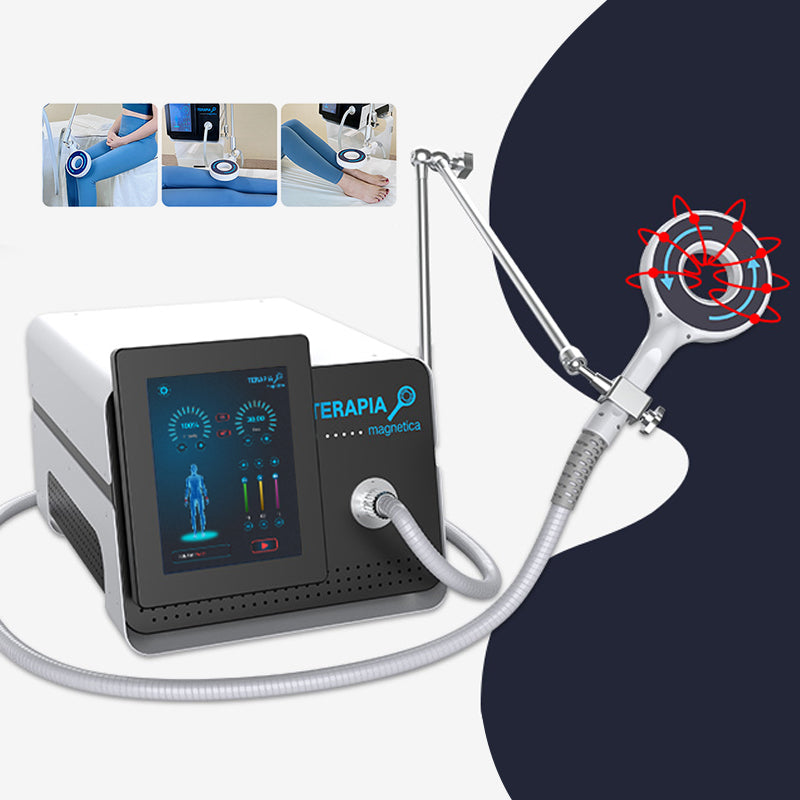

The MS-35 PRO applies Faraday’s electromagnetic induction principle, generating pulsed magnetic fields that penetrate deeply into tissue, inducing currents to stimulate nerves and muscles. This process accelerates circulation, reduces pain, relaxes tissues, and promotes cellular repair.
How to Use

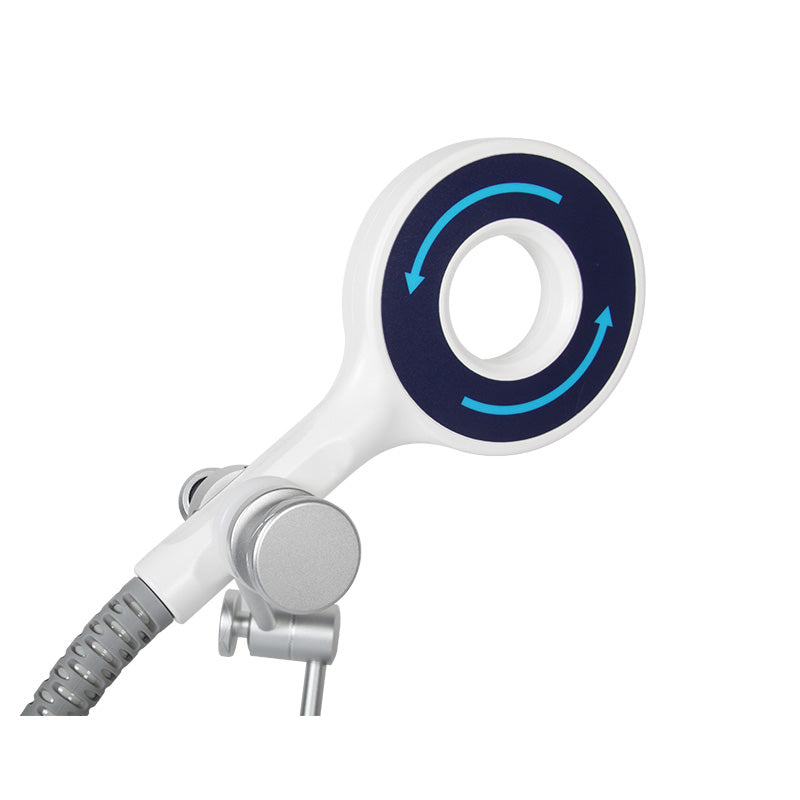

- Connect the power cable and attach the magnetic handle.
- Turn on the unit and select language on the touchscreen.
- Choose Auto or Manual mode.
- Set energy, frequency, and treatment time.
- Position the handle over the treatment area.
- Click Start to begin session; Stop when finished.
- Recommended: 5–20 minutes, 2 times per week, 6–8 sessions per course.
Typical Applications
- Muscle therapy: contractures, soreness, bruises, swelling
- Joint rehabilitation: shoulder, hip, knee, ankle
- Upper limb therapy: epicondylitis, tendinitis, carpal tunnel
- Spinal care: cervical, lumbar, thoracic vertebrae
- Tendon & ligament recovery: Achilles tendonitis, chronic edema
Warranty & Support
1-year warranty for the main unit.
Factory-based maintenance service.
Training
Free 1-on-1 online training.
Certificate provided after training.
Shipping
Worldwide delivery via FedEx / DHL / UPS.
DDP door-to-door available on request.
CUSTOMIZATION & WHOLESALE
We provide OEM logo customization. Add your brand logo to the machine body and/or start-up screen for professional branding.
FAQ
Q: Is magnetic therapy safe?
A: Yes, it is non-invasive, drug-free, and has no ionizing radiation risk.
Q: Do I need direct skin contact?
A: No, the handle works through clothing without electrodes.
Q: How many sessions are recommended?
A: 5–20 minutes, twice a week, 6–8 sessions per treatment course.
Q: Why is there noise during use?
A: It comes from coil expansion during high-power pulses, which is normal.
