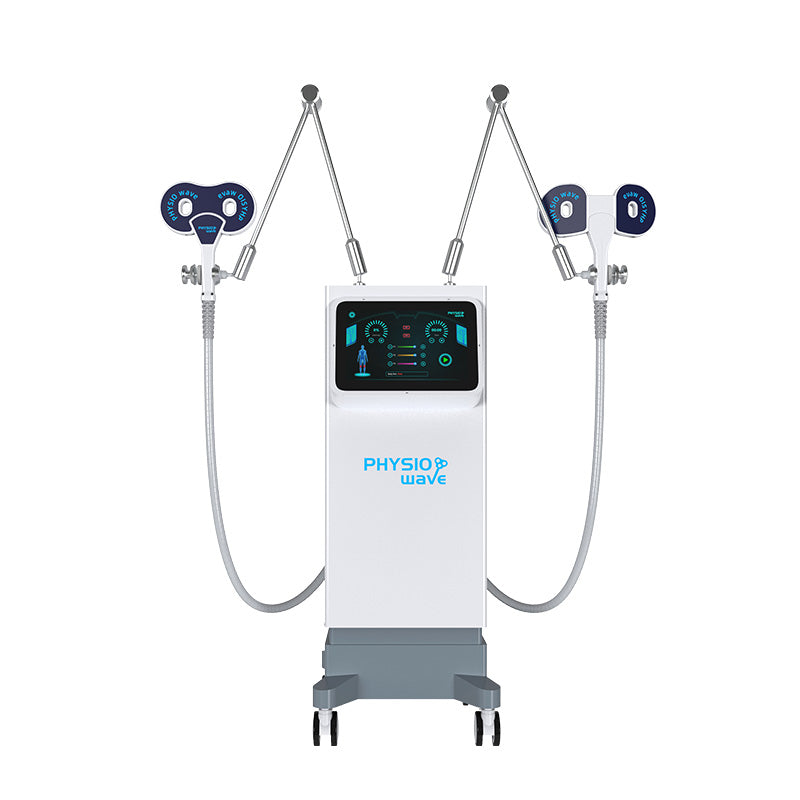

The MS-139 PHYSIO WAVE is a professional magnetic therapy system designed for pain relief, rehabilitation, and physiotherapy. It applies 6 Tesla high-intensity TMS (Transcranial Magnetic Stimulation) technology with advanced air-cooling, ensuring safe, stable, and long-lasting operation for clinics and rehabilitation centers.
With a 12.1” capacitive touch screen and multiple treatment modes (Auto/Manual), it enables easy navigation, smart data tracking, and wide clinical applications in orthopedics, neurology, and sports medicine.
Installation Video
Specifications
| Specification | Details |
|---|---|
| Magnetic Induction Intensity | Up to 6 Tesla |
| Frequency | 1Hz – 100Hz |
| Pulse Duration | ≥340μs (±20μs) |
| Max Induction Change Rate | 40–80 kT/s |
| Penetration Depth | Up to 8 cm |
| Display | 12.1” Capacitive Touchscreen |
| Cooling System | Air Cooling (Zero Maintenance) |
| Voltage | AC220V; 50Hz |
| Power | 1600W |
| Fuse | 15A |
| Weight | 41.5 kg (Net) / 61.5 kg (Gross) |
| Dimensions | 112 × 56 × 57 cm |
Key Advantages
- 6T High-Intensity Stimulation: Deep penetration up to 8 cm for effective muscle and nerve therapy.
- Non-Invasive & Painless: Safe alternative to drugs and electrodes.
- Air Cooling System: Zero maintenance cost, reliable long-term operation.
- Progressive Pulse: Smooth rise, continuous stimulation, gradual fall for patient comfort.
- Smart Touchscreen Control: Auto & Manual modes with preset parameters.

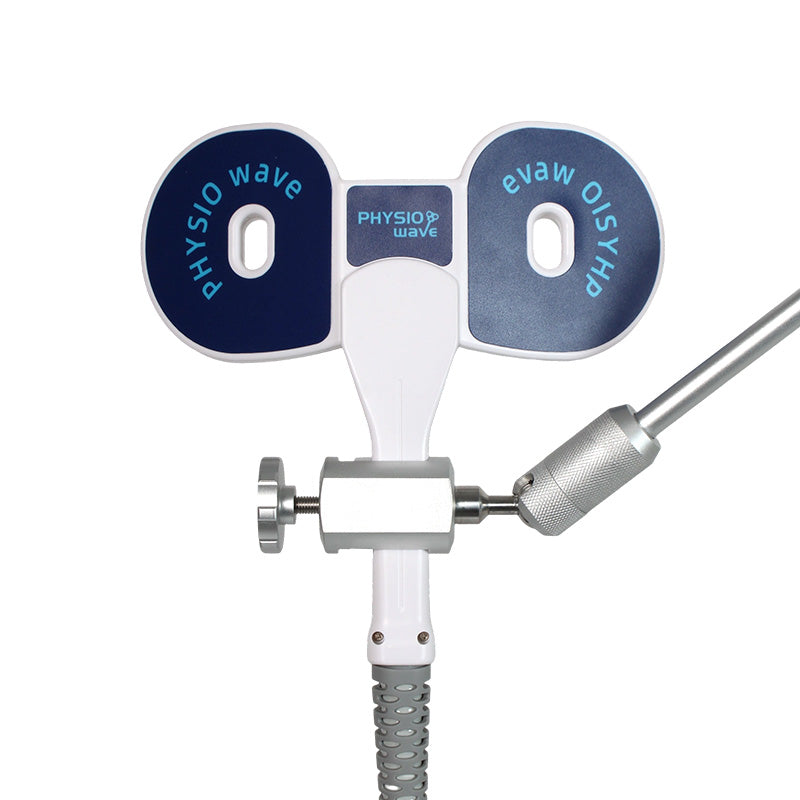

- 360° Positioning Bracket: Easy targeting of treatment zones, hands-free operation.
Principle
The MS-139 uses Faraday’s electromagnetic induction principle. A large-capacity capacitor discharges energy into a coil, generating a pulsed magnetic field. This field penetrates clothing, bone, and soft tissue, inducing electric fields that stimulate nerves and muscles. The result is enhanced blood flow, pain relief, reduced inflammation, and accelerated tissue recovery.
How to Use
- Connect power cord and magnetic handles.
- Turn on the machine, select language and treatment mode.

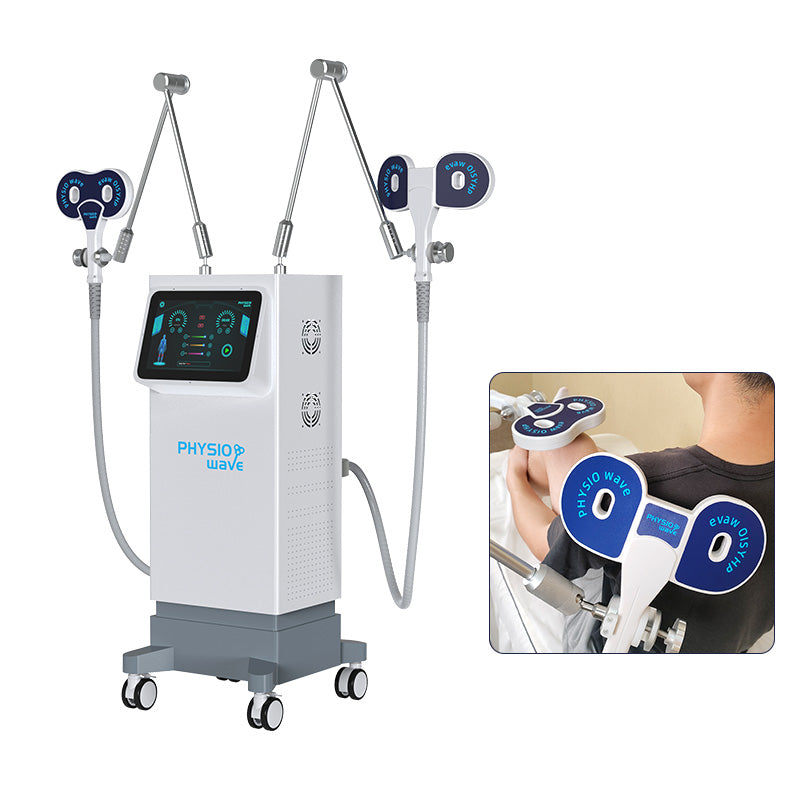

- Position magnetic handle over treatment area (clothes-on).
- Select Auto or Manual mode, adjust intensity, frequency, and time.
- Start treatment (5–20 minutes per session, 2 times per week).
- After session, switch off machine and store handles properly.
Typical Applications
- Musculoskeletal pain: arthritis, tendonitis, frozen shoulder
- Sports rehabilitation: muscle injury, contracture, soreness
- Orthopedic disorders: hip, knee, ankle, and lumbar therapy
- Nerve stimulation: carpal tunnel, cervical vertebra treatment
- Post-injury recovery: edema reduction, ligament repair
Warranty & Support
2-year warranty for the main unit.
Factory repair and support available.
Training
Free 1-on-1 online training.
Operation guidance included.
Shipping
Worldwide delivery via FedEx / DHL / UPS.
DDP door-to-door service on request.
CUSTOMIZATION & WHOLESALE
We offer logo customization and can add your brand to the machine body and/or the startup screen for most professional physiotherapy systems.
FAQ
Q: Does magnetic therapy cause radiation damage?
A: No, it generates electromagnetic radiation similar to mobile devices, safe for human use.
Q: Why is there noise during treatment?
A: The clicking sound comes from coil expansion during power pulses, which is normal.
Q: What is the cooling system?
A: Air cooling system with zero liquid maintenance, safe and efficient.
Q: How is it different from electrical stimulation?
A: Magnetic stimulation does not need electrodes or skin contact, making it more comfortable and non-invasive.
