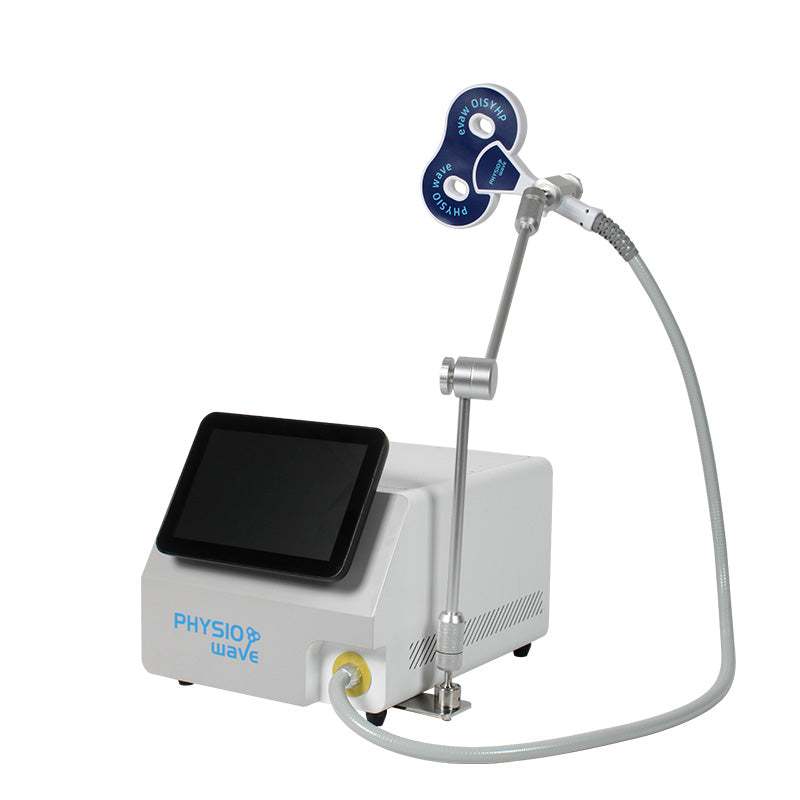

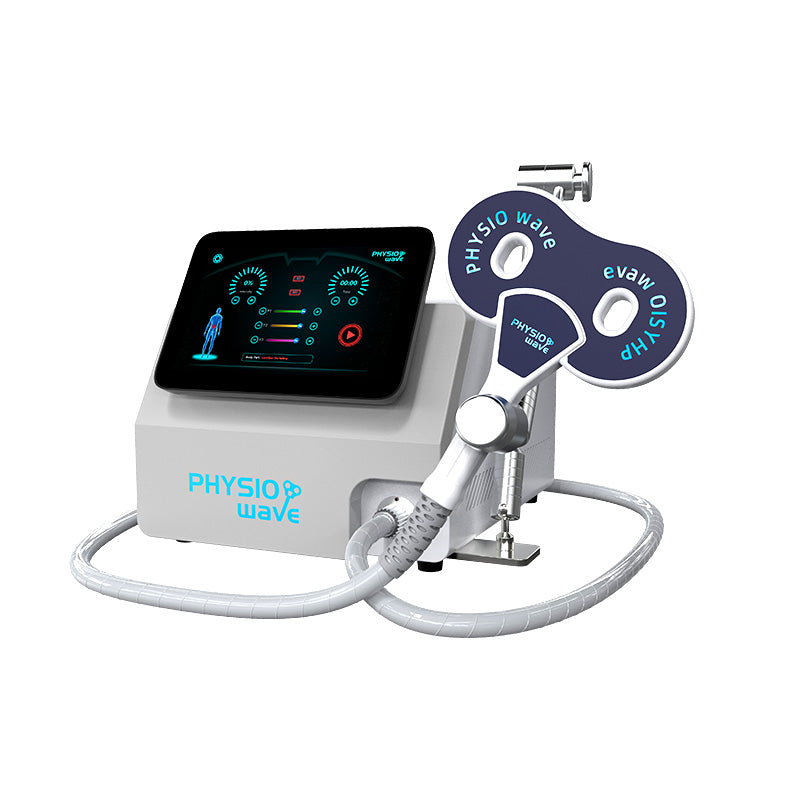

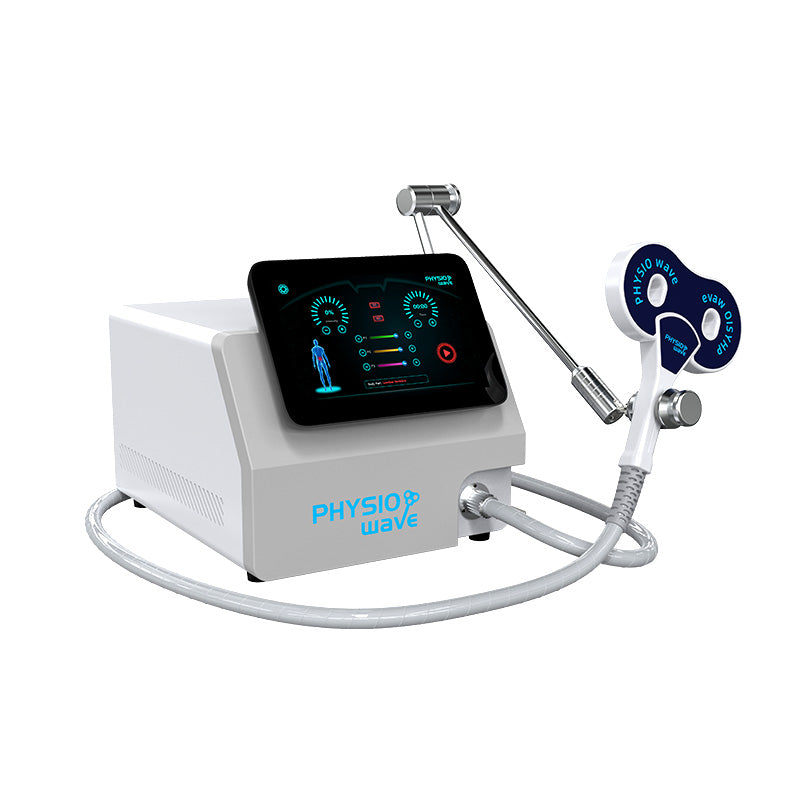

The MT-72 PHYSIO WAVE is a professional electromagnetic magnetic therapy system designed for pain relief, rehabilitation, and physiotherapy. It features a high-intensity 6 Tesla magnetic induction with frequencies from 1–100Hz, providing deep muscle and nerve stimulation without skin contact.
12.1” capacitive touch screen ensures intuitive operation, while the advanced cooling system allows continuous stable performance for clinical use.
Video
Specifications
| Specification | Details |
|---|---|
| Magnetic Induction Intensity | Up to 6 Tesla |
| Frequency | 1–100 Hz |
| Power | ≤1500 W |
| Screen | 12.1” Capacitive Touch Display |
| Voltage | AC110V–130V / 220V–240V, 50/60Hz |

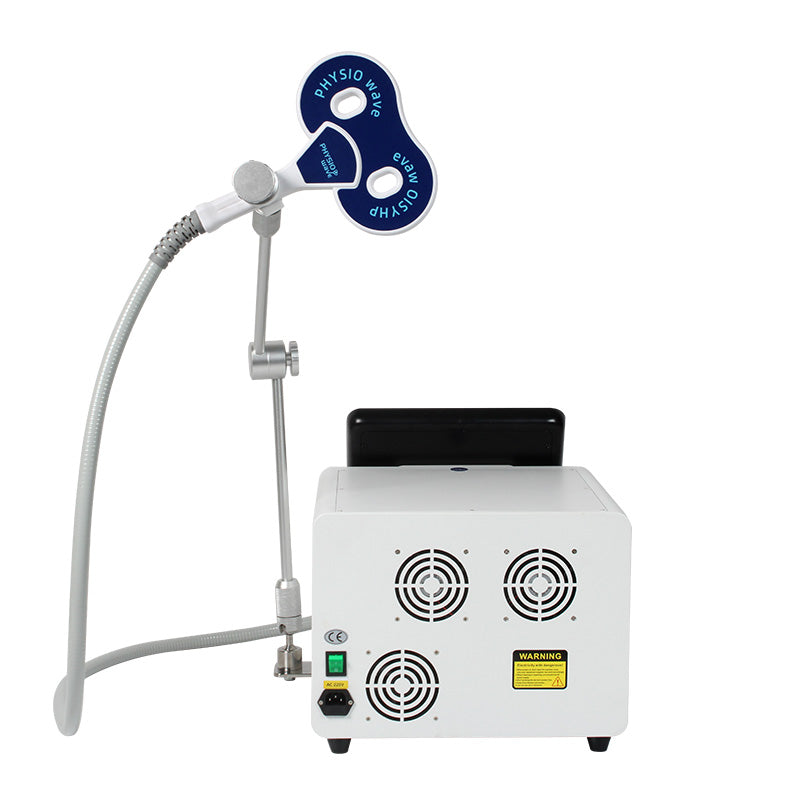

| Cooling System | Air Cooling |
| Stimulation Depth | Up to 8 cm under skin |
| Fuse | 15 A |
| Weight | 22.5 kg (Net) / 33.5 kg (Gross) |
| Package Size | 67 × 62 × 45.5 cm |
| Certificates | CE, ISO13485 |
Key Advantages
- 6 Tesla Power: Deep stimulation of nerves and muscles up to 8cm.
- Safe & Non-invasive: No electrodes, no skin contact needed.
- Air Cooling System: Efficient heat dissipation with zero leakage risk.
- Smart Interface: Easy 3-step treatment setup with 12.1” display.
- Progressive Pulse: Comfortable rising–steady–falling stimulation.
- Flexible Positioning: 360° adjustable support arm for hands-free use.
Principle
The MT-72 emits pulsed magnetic fields based on Faraday’s electromagnetic induction. These fields penetrate clothing and tissue, inducing currents that excite nerve cells and promote biochemical responses. This enhances blood circulation, reduces pain, relaxes muscles, and accelerates recovery.
How to Use
- Connect power cable and ensure handle is properly attached.
- Turn on the machine and select language.
- Choose Auto or Manual mode from the touchscreen.
- Adjust energy, frequency, and treatment time.

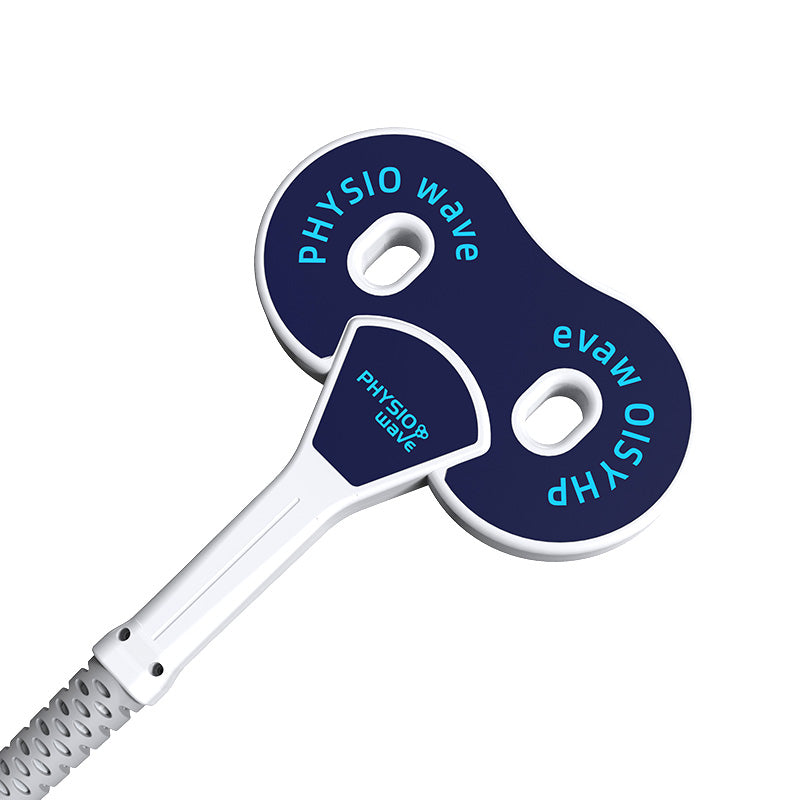

- Position magnetic handle over treatment area (clothes on).
- Click Start to begin session; click Stop when finished.
- Treatment time: 5–20 minutes, twice per week.
Typical Applications
- Muscle therapy: contractures, soreness, tears, swelling
- Joint injuries: shoulder, hip, knee, ankle disorders
- Upper limb therapy: epicondylitis, tendinitis, carpal tunnel
- Spinal care: cervical, thoracic, lumbar vertebrae
- Tendon & ligament rehabilitation: Achilles tendonitis, chronic edema
Warranty & Support
2-year warranty for the main unit.
Factory maintenance service available.
Training
Free 1-on-1 online training.
Certificate provided after completion.
Shipping
Worldwide delivery via FedEx / DHL / UPS.
DDP door-to-door service available on request.
CUSTOMIZATION & WHOLESALE
We support OEM logo customization. Your brand logo can be added to the device body and/or start-up screen for professional presentation.
FAQ
Q: Is there radiation damage from magnetic stimulation?
A: No, it uses electromagnetic pulses, not ionizing radiation, and is safe for clinical use.
Q: Do I need skin contact for treatment?
A: No, the magnetic handle works through clothing and skin without electrodes.
Q: How often should treatments be done?
A: Recommended 5–20 minutes, 2 sessions per week, 6–8 sessions per course.
Q: What is the cooling system?
A: Intelligent air-cooling with zero maintenance cost.
