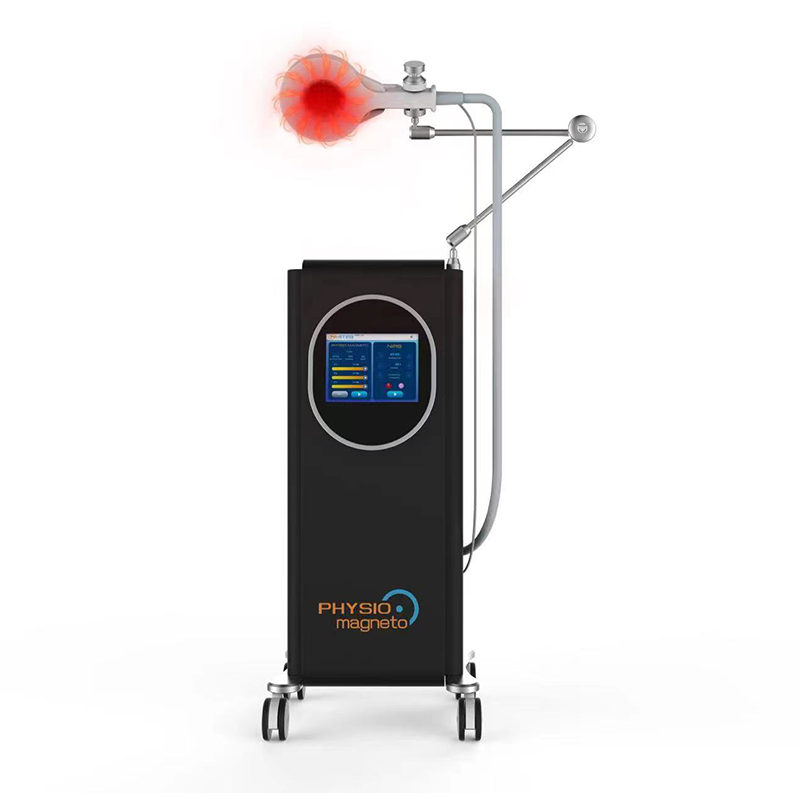

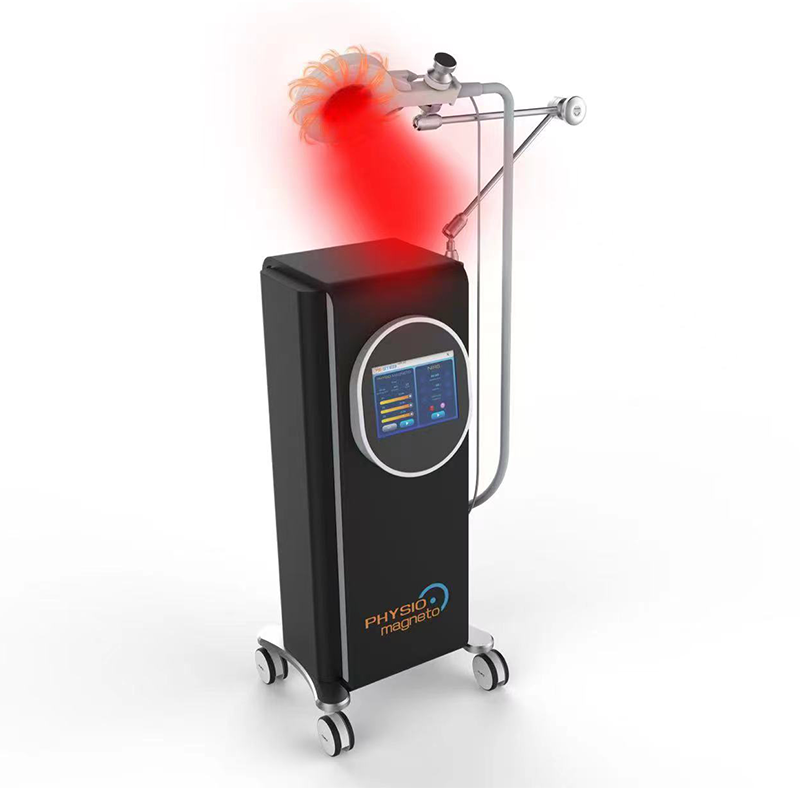

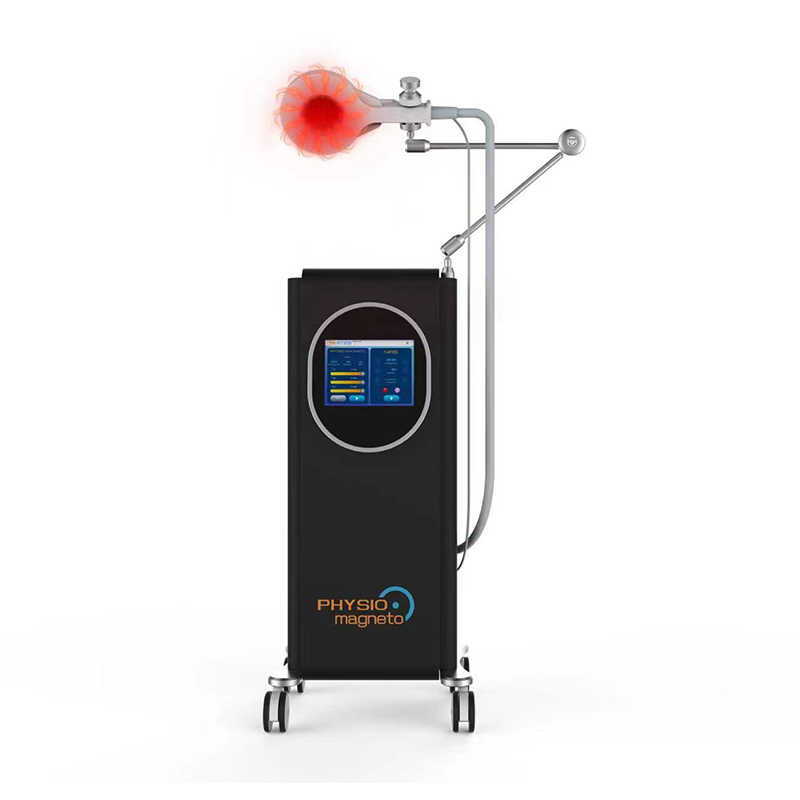

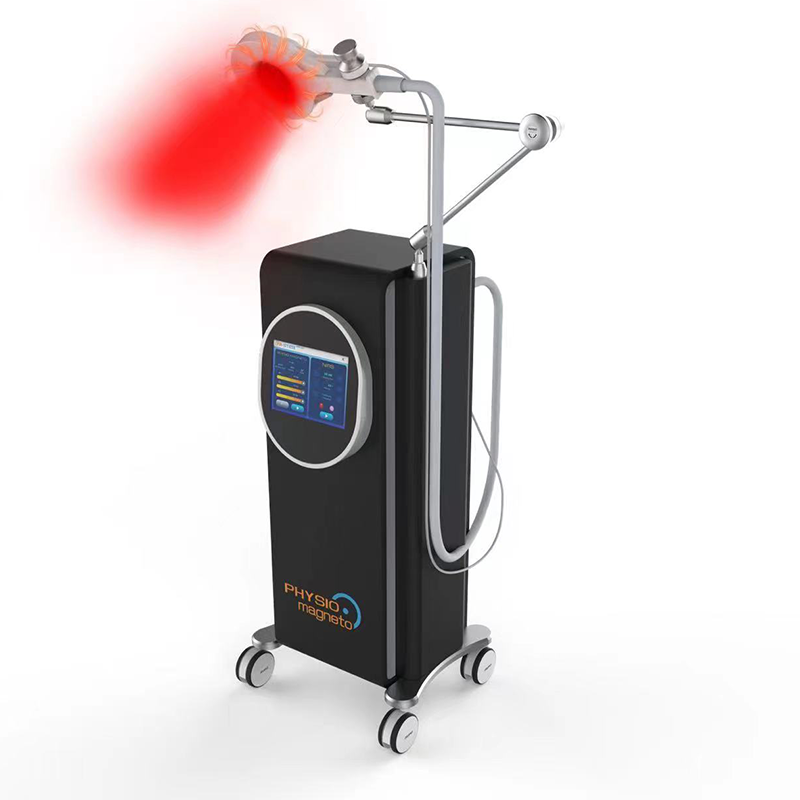

The PMST-3 NEO is a floor-standing physio magneto and near infrared therapy system designed for professional rehabilitation, physiotherapy, and sports medicine. It generates up to 4 Tesla field intensity with integrated NIRS light therapy (940nm / 660nm / 620nm), delivering deep, non-invasive treatment for chronic pain, musculoskeletal disorders, and injury recovery.
Standing design with a 10.4” touchscreen and flexible holding arm makes clinical use intuitive and efficient, allowing hands-free operation and easy applicator positioning.
Installation Video
Specifications
| Specification | Details |
|---|---|
| Magnetic Field Intensity | Up to 4 Tesla |
| Oscillation Frequency (ST Mode) | 1000–3000 Hz |
| Oscillation Frequency (MT Mode) | 1–100 Hz |
| Near Infrared Wavelengths | 940 nm / 660 nm / 620 nm |
| Touchscreen | 10.4” Color Display |
| Cooling System | Water Cooling (2.5L) |
| Output Power | 1200 W |
| Voltage | 100–240 V |
| Weight | 72 kg |
| Package Size | 60.5 × 60 × 114.5 cm (Flight Case) |
Key Advantages
- Standing Design: Clinical-grade floor-standing physiotherapy unit.
- 4 Tesla Magnetic Field: Deep penetration for effective musculoskeletal therapy.
- Combined Therapy: Magneto + NIRS light for accelerated healing.
- Hands-Free Operation: Adjustable holding arm ensures easy applicator placement.
- Safe & Non-Invasive: Pain-free, risk-free, and side-effect-free treatment.
- Multi-Application: Suitable for arthritis, chronic pain, sports injuries, and fractures.
Principle

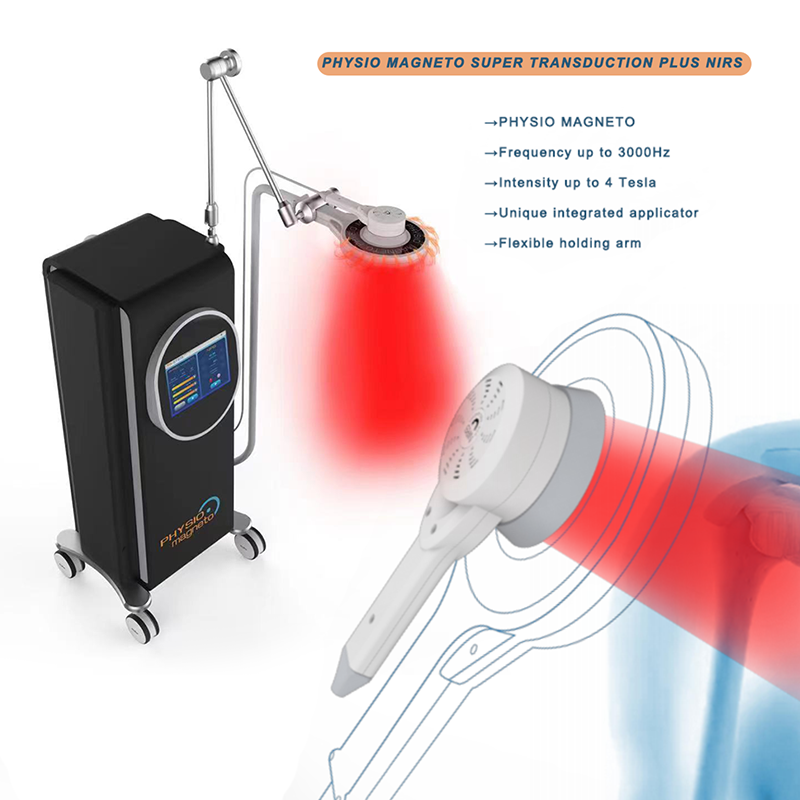

The PMST-3 NEO delivers pulsed magnetic fields through a ring-type applicator combined with near infrared light therapy. This dual-action approach stimulates blood circulation, enhances cell metabolism, relieves pain, and accelerates tissue repair. Patients remain clothed during treatment, with no need for direct skin contact.
How to Use
- Connect PM handle and NIRS infrared handle.
- Fill the water cooling tank (2.5L).
- Power on device and enter default password.
- Select MT (1–100Hz) or ST (1000–3000Hz) mode.
- Adjust intensity and frequency per treatment site.
- Position applicator ring close to treatment area.
- Start therapy session (5–20 min per area).
Typical Applications
- Chronic Pain Relief: back pain, knee pain, shoulder pain
- Degenerative Joints: osteoarthritis in hips, knees, hands
- Sports Injuries: tendon overuse, sprains, muscle strain
- Fracture Healing: accelerate bone repair & recovery
- Nerve Regeneration: carpal tunnel, neuropathy therapy
Warranty & Support
2-year warranty for the main unit.
24/7 online technical support.
Training
Free 1-on-1 online training.
Certificate provided after completion.
Shipping
Worldwide delivery via FedEx / DHL / UPS.
DDP door-to-door service available on request.
CUSTOMIZATION & WHOLESALE
We support OEM/ODM services with logo customization for wholesale orders. Brand logo can be added on the device body and system interface.
FAQ
Q: Is the therapy painful?
A: No, PMST-3 NEO treatment is painless and non-invasive.
Q: Can it be used through clothes?
A: Yes, direct skin contact is not required.
Q: How long is each session?
A: 5–20 minutes for magneto therapy, 20–30 minutes for NIRS.
Q: Is it safe?
A: Yes, it’s side-effect-free and widely used in physiotherapy clinics.
