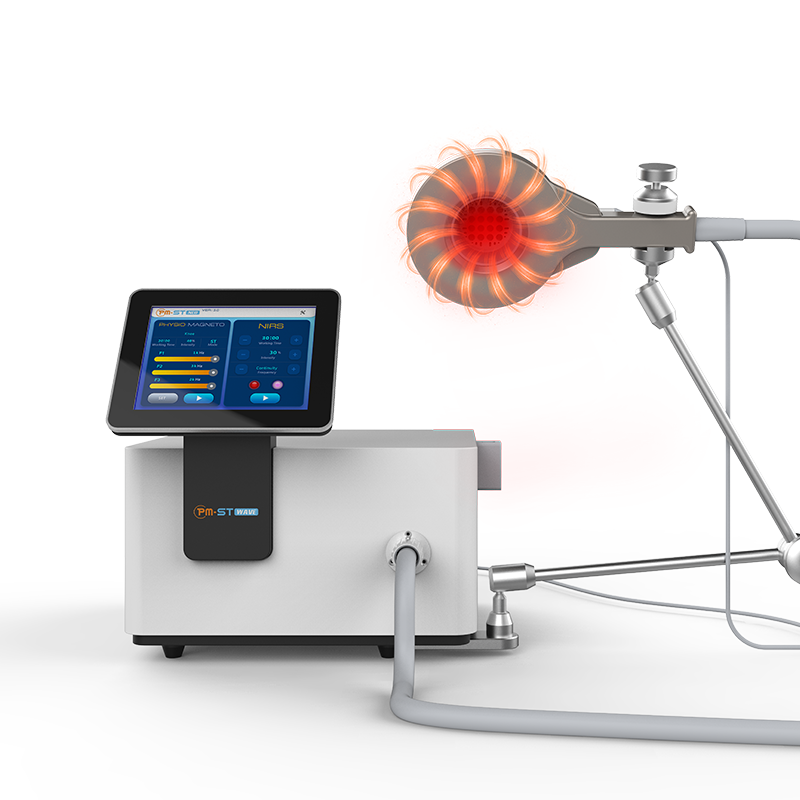

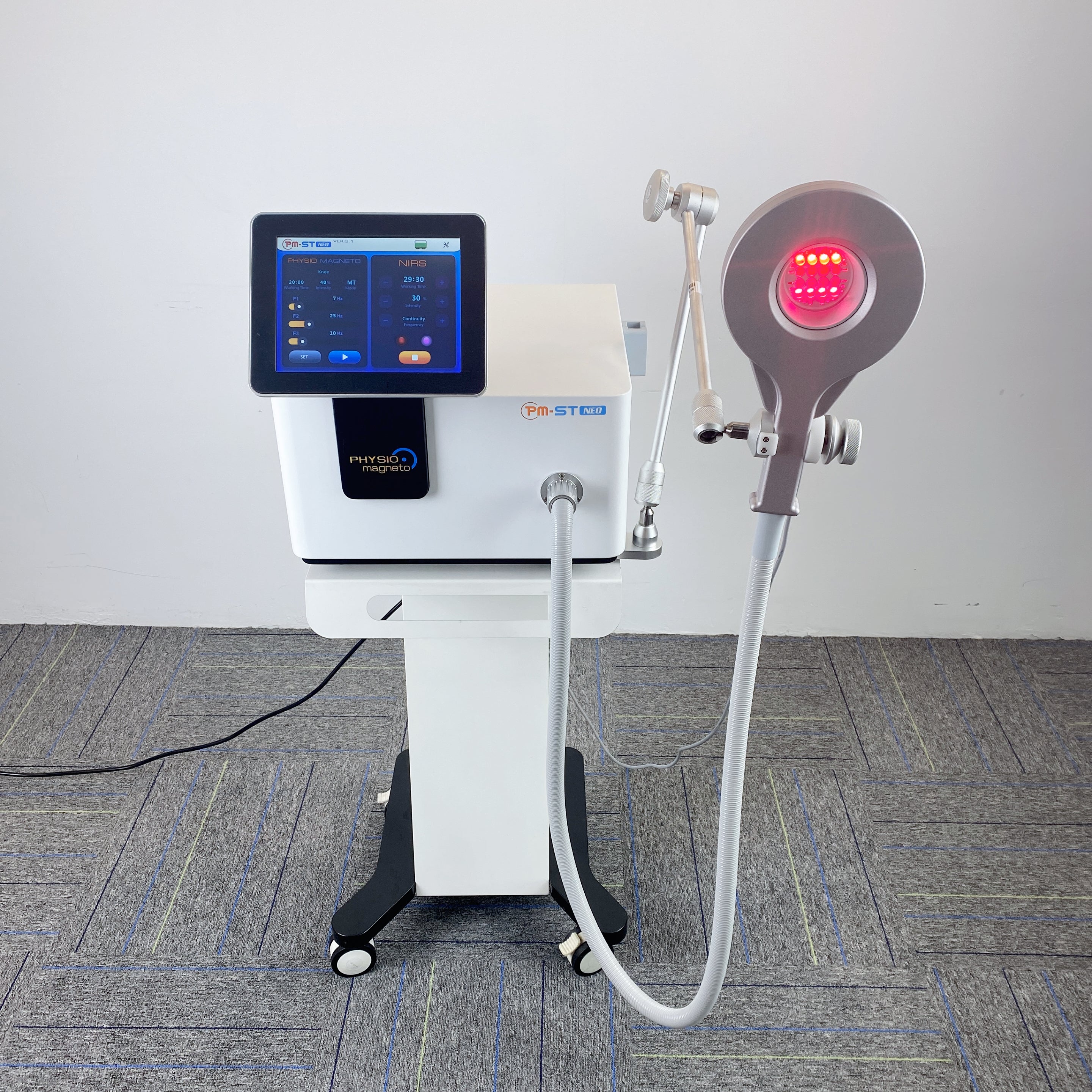

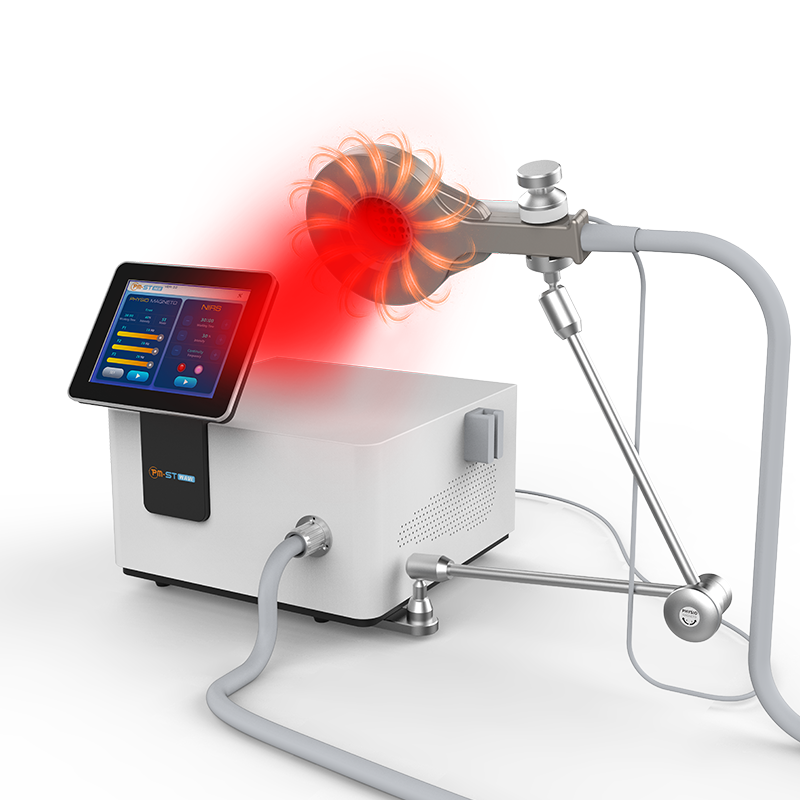

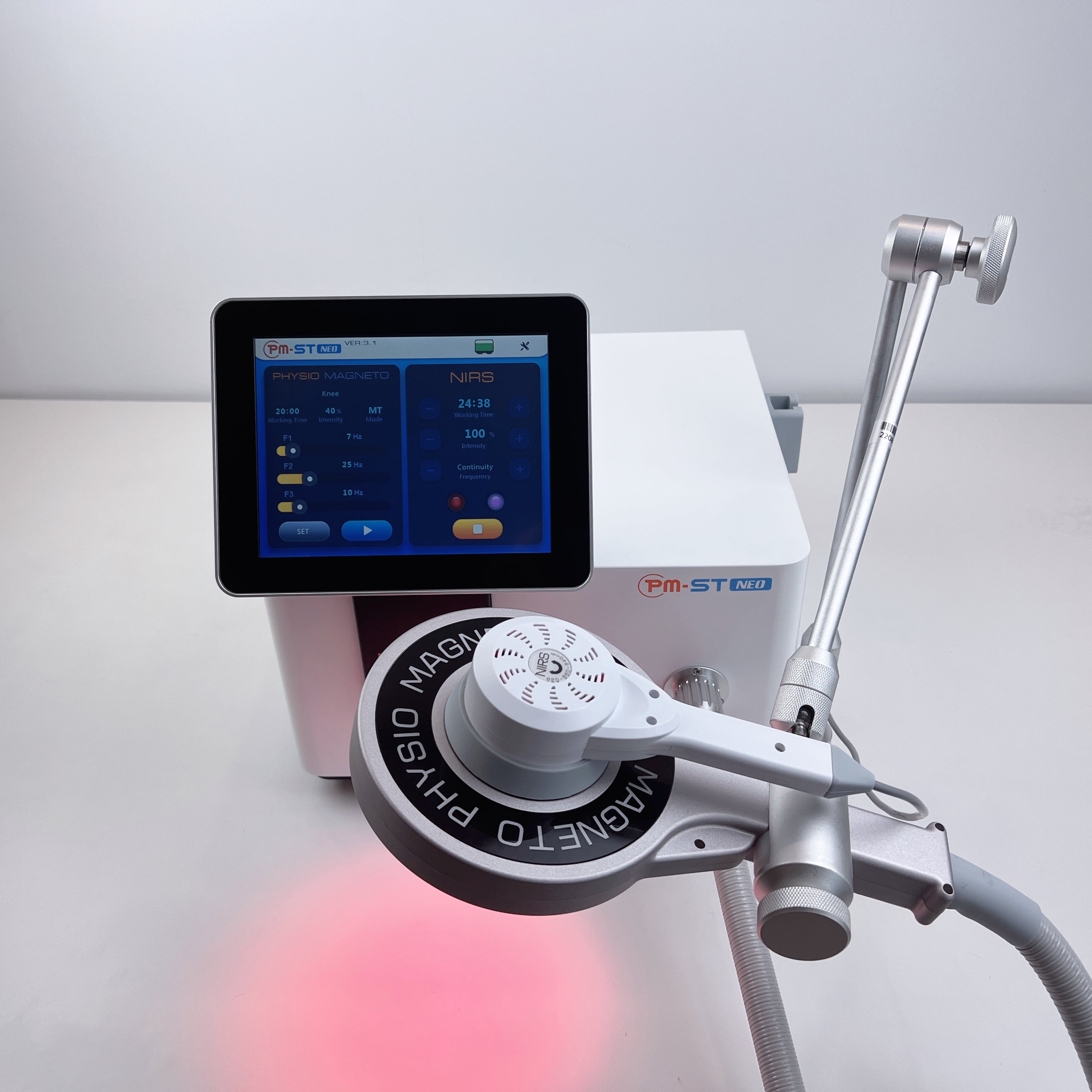

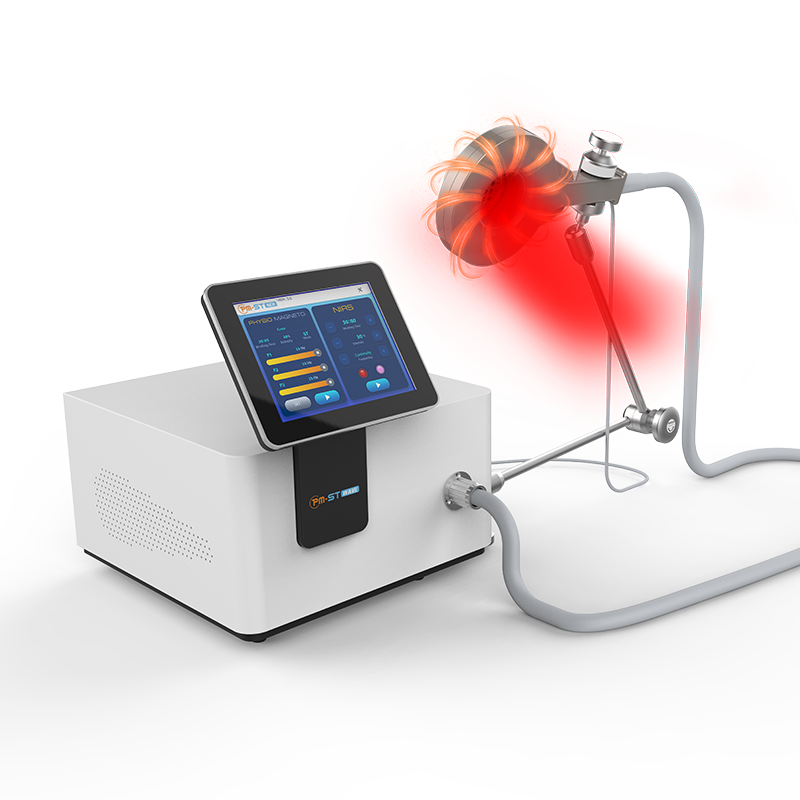

The PMST-4 NEO is a professional physio magneto therapy and near infrared system designed for pain relief, rehabilitation, and physiotherapy. It delivers up to 4 Tesla field strength with integrated NIRS light therapy at 940nm / 660nm / 620nm, making it ideal for sports medicine, clinics, and rehabilitation centers.
Dual therapy applicator (Magneto + NIRS) and a 10.4” touchscreen interface ensure intuitive operation, wide treatment coverage, and enhanced recovery results.
Installation Video
Specifications
| Specification | Details |
|---|---|
| Magnetic Field Intensity | Up to 4 Tesla |
| Oscillation Frequency (ST Mode) | 1000–3000 Hz |
| Oscillation Frequency (MT Mode) | 1–100 Hz |
| Near Infrared Wavelengths | 940 nm / 660 nm / 620 nm |
| Touchscreen | 10.4” Color Display |
| Cooling System | Water Cooling (2.5L) |
| Output Power | 1200 W |
| Voltage | 100–240 V |
| Weight | 45 kg |
| Package Size | 76 × 62 × 51 cm (Flight Case) |
Key Advantages
- 4 Tesla Magnetic Field: High penetration for deep musculoskeletal therapy.
- Dual Therapy: Combines magneto pulses with NIRS infrared for superior outcomes.
- Non-Invasive: Pain-free, risk-free, and side-effect-free treatment.
- Sports & Rehab: Ideal for injuries, chronic pain, fracture healing, and mobility support.
- Hands-Free Work: Applicator with flexible holding arm for easy positioning.
- Intuitive Interface: 10.4” touch screen with preset programs.
Principle
The PMST-4 NEO uses a unique ring-type electromagnetic applicator to deliver high-frequency magnetic pulses deep into tissues. Simultaneously, NIRS light wavelengths target the same area, promoting circulation, cell regeneration, and tissue repair. This dual synergy accelerates healing, reduces inflammation, and relieves pain.
How to Use
- Connect PM handle and NIRS applicator to the main device.
- Fill the water tank (2.5L) for cooling system.
- Turn on power and enter default password.
- Select MT or ST mode depending on treatment area.
- Adjust intensity and frequency as needed.
- Position applicator over treatment area (clothes-on, no skin contact required).
- Start session (5–20 minutes per treatment).
Typical Applications
- Chronic Pain Relief: back pain, knee pain, shoulder pain
- Sports Injuries: muscle strain, tendon overuse, joint sprains
- Fracture & Wound Healing: accelerate recovery & tissue repair
- Arthritis & Degenerative Joints: osteoarthritis in knees, hips, hands
- Nerve Regeneration: carpal tunnel, neuropathy support
Warranty & Support
2-year warranty for the main unit.
24/7 online technical support.
Training
Free 1-on-1 online training.
Certificate provided after completion.
Shipping
Worldwide delivery via FedEx / DHL / UPS.
DDP door-to-door service available on request.
CUSTOMIZATION & WHOLESALE
We support logo customization and can add your brand logo to the device body and start-up screen for wholesale orders.
FAQ
Q: Is the treatment painful?
A: No, PMST-4 NEO therapy is pain-free and non-invasive.
Q: How long is each session?
A: A session lasts 5–20 minutes, depending on the indication.
Q: Can clothes stay on during treatment?
A: Yes, direct skin contact is not required.
Q: Does it combine two therapies?
A: Yes, Magneto pulses and NIRS infrared light work together for enhanced results.
