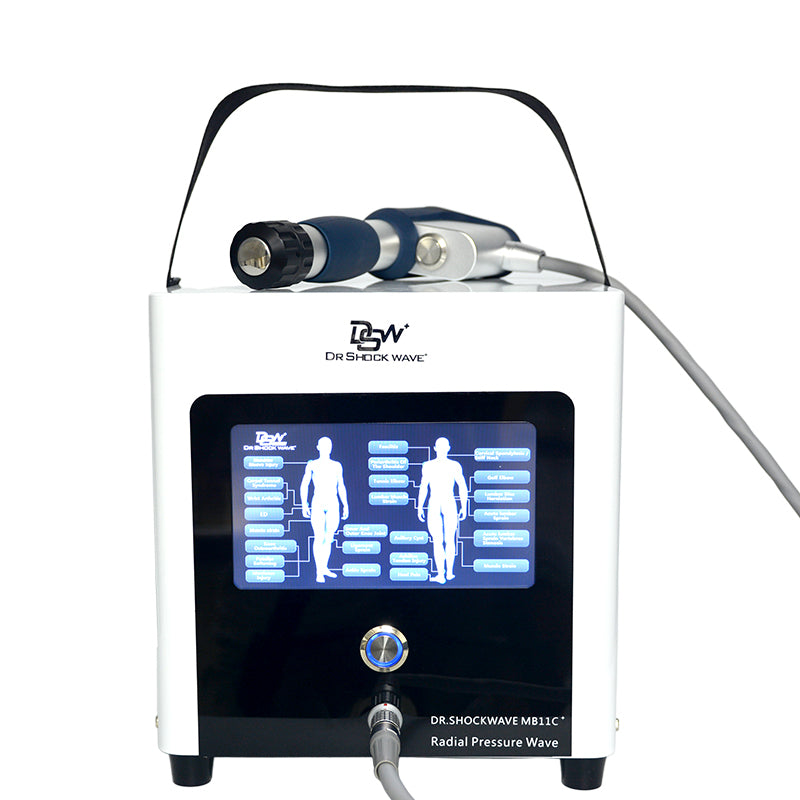

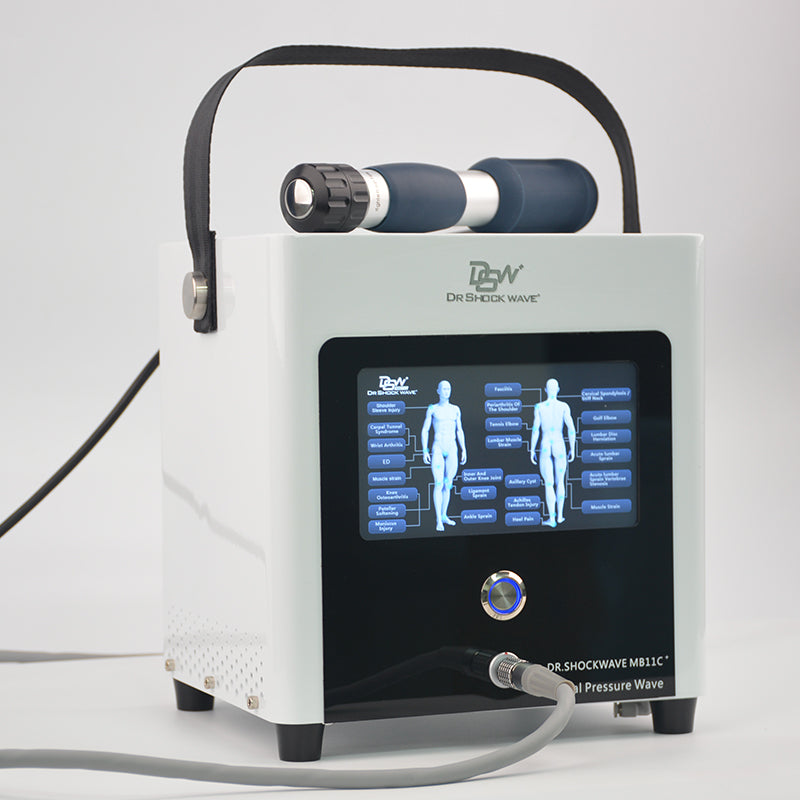

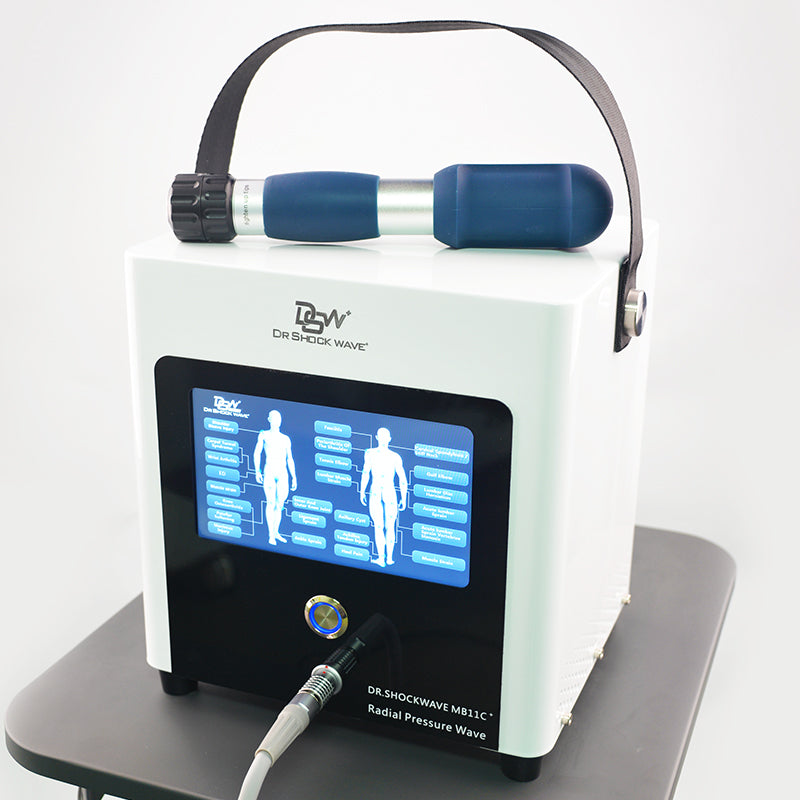

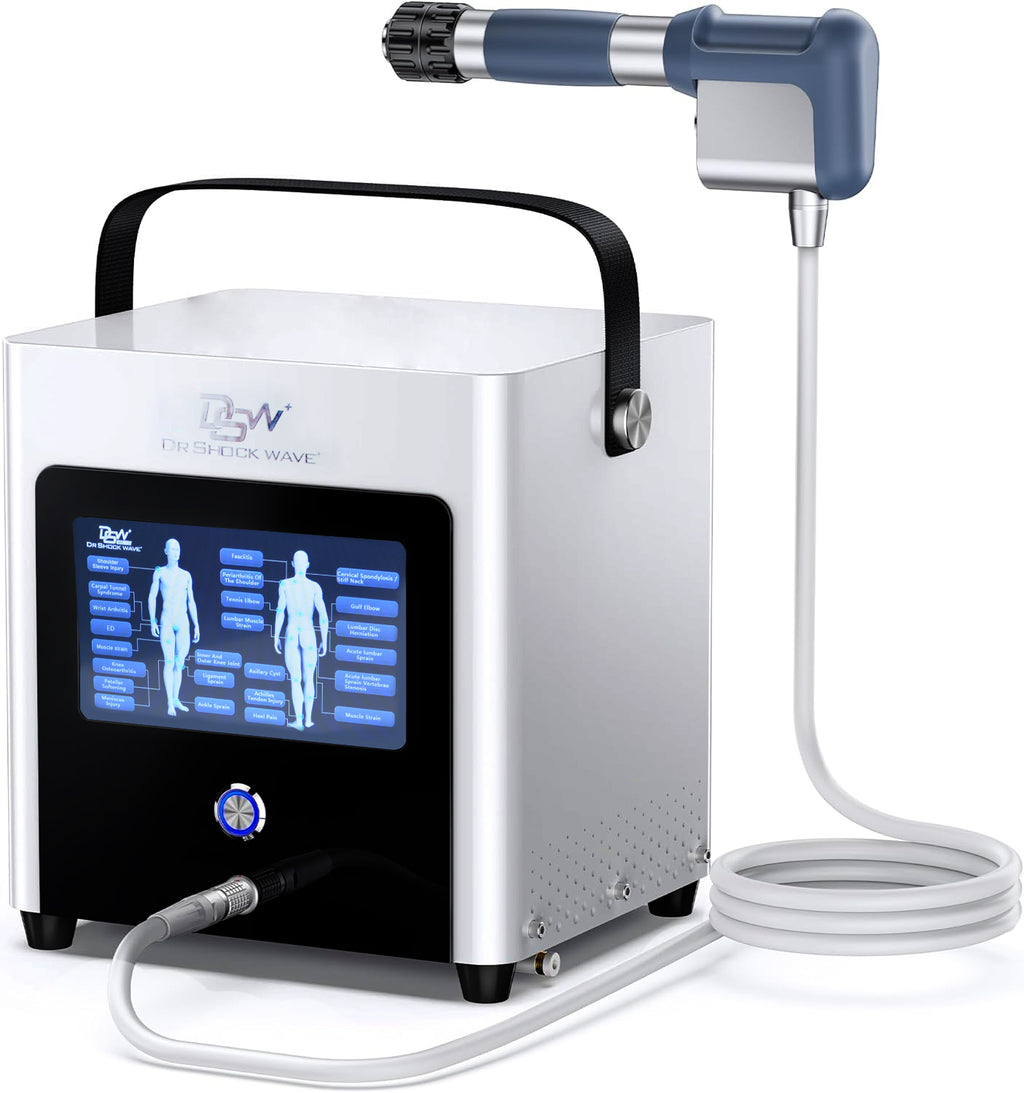

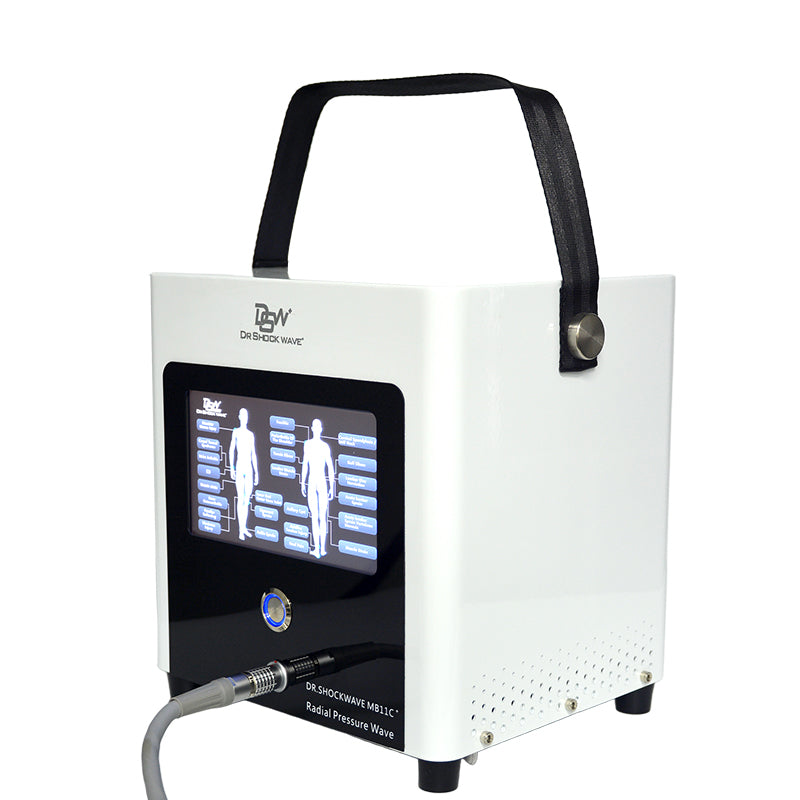

SW30 Portable Pneumatic Shockwave Therapy Machine
Full clinic-grade power that travels. The SW30 packs 10 Bar peak output, 1–21 Hz, and a 2 million-shot aluminum handle into a 13 kg hard case — carry it room-to-room, between clinic sites, or out to an athlete on the field, with no benchtop footprint and no setup compromise.
The SW30 is built for clinics, physiotherapy and sports-rehab centers, and mobile therapists who need consistent radial/ballistic shockwave output without a benchtop footprint. It is a wellness and physiotherapy device commonly used to support recovery in chronic tendon and soft-tissue conditions. Below we lay out, plainly: how it works, what the published evidence actually says, treatment protocols by indication, contraindications, and the training you receive — so you can make a purchasing decision with the real picture, not a sales pitch.
Why Clinics Choose the SW30

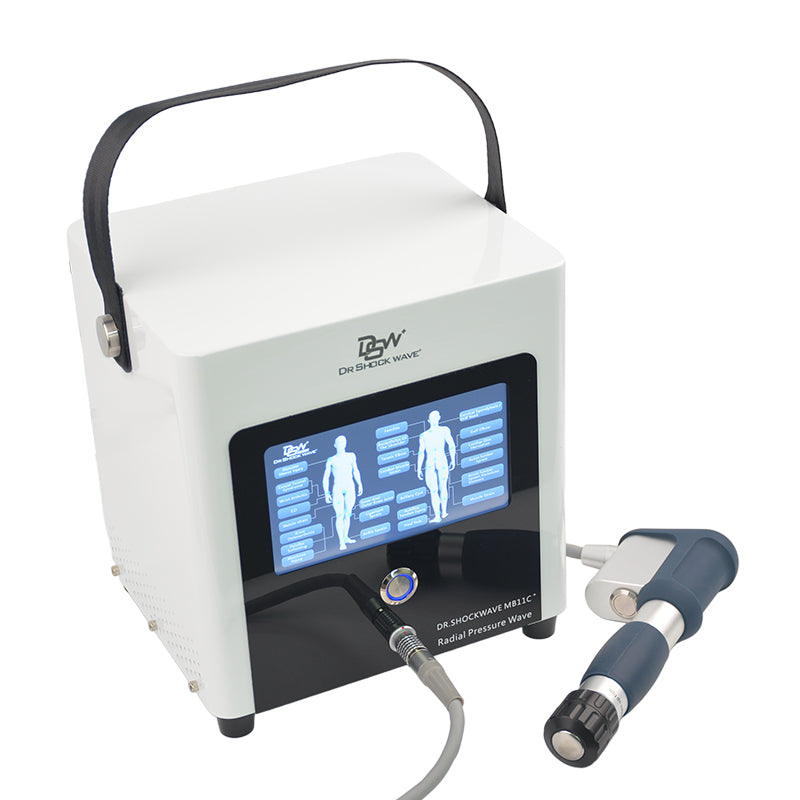

Truly portable — the core advantage
13 kg host in a protective hard case. Move it between treatment rooms, carry it to satellite clinics, or take it pitch-side to an athlete. Mobile therapists get full clinic output without a fixed install.
10 Bar peak output
Pneumatic ballistic delivery up to 10 Bar for deep soft-tissue penetration on larger muscle groups and stubborn insertional tendinopathy.
1–21 Hz, step-adjustable
Wide frequency band lets you dial low-energy regenerative protocols or higher-frequency myofascial work from one handle.

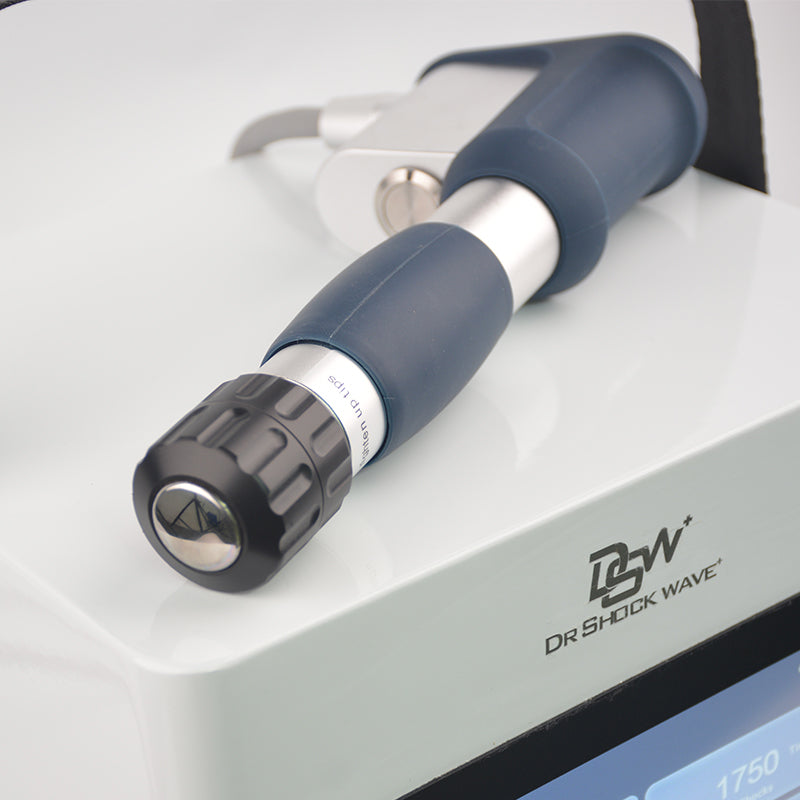

2M+ shot handle life
Aluminum-alloy ballistic handle with a durable bullet system — engineered for high daily throughput and low cost-per-shot.
Automatic drainage
Smart air-cooling + auto water-outlet system means no manual water maintenance between sessions.

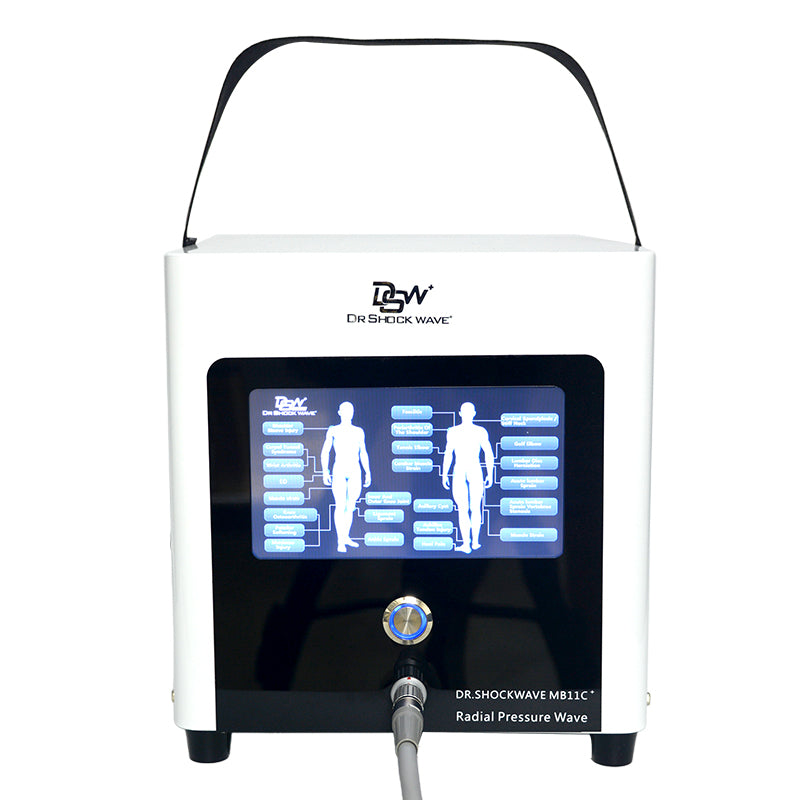

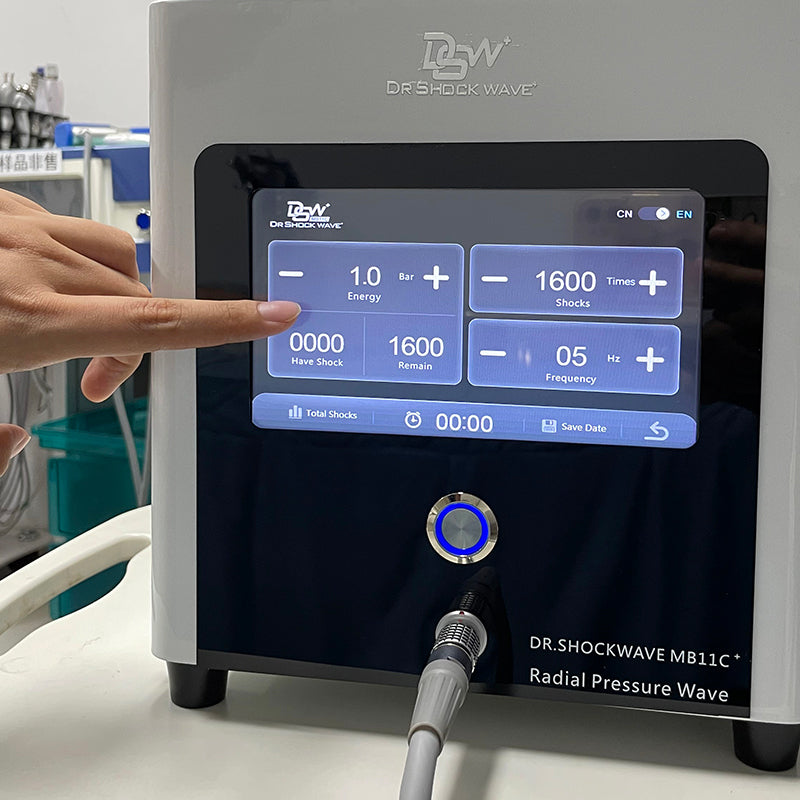

Touchscreen control
Set energy, frequency and pulse count directly; recall parameters quickly between back-to-back patients.
Dedicated Men’s Health Application
Beyond musculoskeletal work, the SW30 is widely chosen by clinics offering low-intensity shockwave protocols to support erectile function and men’s sexual wellness — one of the fastest-growing cash-pay services in physiotherapy and men’s-health practices.
Low-intensity ED-support protocol
Dedicated low-energy settings (2–4 Bar, 3–6 Hz) for the protocols clinicians use to support erectile function via improved local blood flow. A high-margin, repeat-visit service line.
Backed by published research
Low-intensity shockwave for erectile function is one of the most-studied non-invasive options — see the Clinical Evidence section for real meta-analysis sources, presented objectively.
Cash-pay revenue line
Men’s-health shockwave is typically a self-pay service, adding a profitable stream alongside your pain and rehab caseload — from one portable device.
How Pneumatic Shockwave Works
The SW30 accelerates a ballistic projectile (“bullet”) inside the handle against a transmitter, generating a mechanical pressure wave that travels into the underlying tissue. At the physiological level, this mechanotransduction is associated with several proposed mechanisms studied in the literature:
- Increased local blood flow and angiogenesis in the treated area.
- Stimulation of collagen and tissue-repair signaling in chronic tendinopathy.
- Breakdown of calcific deposits in calcific tendinopathy.
- Reduced pain transmission via local nerve-fiber modulation.
Clinical Evidence (Shockwave Therapy Category)
The following summarizes peer-reviewed research on extracorporeal shockwave therapy (ESWT) as a treatment category — not on this specific device model. We present it objectively, including where trials disagree, so your clinical team can set realistic expectations with patients.
Calcific tendinopathy of the rotator cuff — strongest signal
- A 2024 systematic review with meta-analysis found ESWT clinically superior to sham for pain reduction and function at 24 weeks, with high-energy protocols outperforming low-energy ones and showing significantly higher calcification resorption at 12 weeks. The authors rated overall certainty of evidence as very low via GRADE, so results should be read as encouraging but not definitive.
Source: Brindisino F. et al., Physiotherapy Research International, 2024. PMID: 38878302. A 2020 Cochrane review (Surace SJ et al., CD008962) reached more cautious conclusions on rotator cuff disease overall.
Upper-limb tendinopathy (lateral epicondylitis / “tennis elbow,” rotator cuff)
- A 2024 meta-analysis of RCTs reported ESWT significantly reduced VAS pain scores at 3-month follow-up for both rotator cuff tendonitis and lateral epicondylitis versus sham. Effect sizes were modest and heterogeneity for lateral epicondylitis was moderate-to-high.
Source: Upper-limb tendonitis systematic review & meta-analysis, PMC11319137 (2024).
Plantar fasciitis — genuinely mixed results
- Evidence here is inconsistent. A large multicentre RCT (272 patients) concluded ESWT was ineffective for chronic plantar fasciitis (Haake M. et al., BMJ 2003), while a confirmatory placebo-controlled trial of radial ESWT (Gerdesmeyer L. et al., Am J Sports Med 2008; n=172) found it safe and effective. Several 2016–2024 meta-analyses report a benefit over placebo, but trial quality and protocols vary widely.
Sources: PMID 12855524 (negative RCT); PMID 16818146 (positive RCT); PMID 27977431 (meta-analysis). More high-quality RCTs are still needed to settle protocol questions.
Low-intensity shockwave & erectile function
- Multiple meta-analyses of RCTs (e.g., 16 RCTs / 1,064 men; and a 21-RCT / 1,357-men synthesis) report improvements in IIEF-EF scores after low-intensity shockwave, mainly in men with mild-to-moderate vasculogenic erectile dysfunction. However, reviewers consistently note limited overall evidence quality and wide variation in treatment protocols, and a 2026 review reiterated these limitations.
Sources: PMID 35319291; PMID 40654049; J Sex Med 2026 (qdag070). This application uses dedicated low-energy settings and should be performed only by appropriately trained clinicians.
Treatment Protocols by Indication
Starting-point parameters commonly used in clinical practice and in the literature. Always adjust to patient tolerance and your own clinical judgment; these are reference ranges, not prescriptions.
| Indication | Energy | Frequency | Pulses / session | Schedule |
|---|---|---|---|---|
| Plantar fasciitis | 2–4 Bar | 8–12 Hz | 2000–2500 | 1×/week, 3–5 sessions |
| Lateral epicondylitis | 2–3 Bar | 8–10 Hz | 2000 | 1×/week, 3–5 sessions |
| Calcific rotator cuff | 3–5 Bar | 6–10 Hz | 2000–3000 | 1×/week, 3–4 sessions |
| Achilles / patellar tendinopathy | 2–4 Bar | 8–12 Hz | 2000–2500 | 1×/week, 3–5 sessions |
| Myofascial / trigger points | 1.5–3 Bar | 12–21 Hz | 1500–2000 | 1–2×/week as needed |
| Men’s health (erectile function support) | 2–4 Bar | 3–6 Hz | 1500–2000 | Per trained protocol |
Contraindications & Safety
Do NOT treat the following without specialist clearance
- Pregnancy (especially over the abdomen, pelvis, or lower back)
- Over malignant tumors or suspected malignancy in the treatment area
- Active infection, open wounds, or skin breakdown at the site
- Blood-clotting disorders or patients on anticoagulant therapy
- Directly over large nerves, major blood vessels, the spine, or the skull
- Over implanted devices such as pacemakers or cardiac defibrillators
- Patients with thrombosis or vascular disease in the treatment region
- Over growth plates / epiphyseal regions in children and adolescents
- Acute inflammation in the immediate target zone (treat sub-acute/chronic)
Technical Specifications
| Output | |
| Shockwave Type | Pneumatic Ballistic (radial) |
| Energy Level | 1.0–10.0 Bar |
| Frequency | 1–21 Hz (step adjustable) |
| Pulse Count | 2000–3000 per session |
| Hardware | |
| Handle | Aluminum alloy, 2M+ shot bullet system |
| Cooling | Air cooling + automatic drainage |
| Interface | Smart touchscreen |
| Physical & Power | |
| Host Weight | 13 kg (28.6 lbs) |
| Dimensions | 21 × 24 × 26 cm |
| Power | 350 W |
| Voltage | AC 110V / 220V, 50/60 Hz |
| Compliance & Support | |
| Certification | CE + RoHS |
| Warranty | 2 years (host) |
| Shipping | Free worldwide (DHL / FedEx / UPS) |
The Business Case
At $1,699, the SW30 is positioned to pay for itself quickly in a working clinic. A single shockwave session is commonly billed in the $50–$150 range depending on market and indication; a typical course runs 3–5 sessions per patient.
Billing figures are illustrative market ranges and vary by region, payer, and scope of practice — confirm against your local rates.
Training & Onboarding
Free 1-on-1 online training
Live session with our technical team covering setup, parameter selection, handle handling, and maintenance.
Clinical protocol guide
Written starting-point protocols by indication, plus the operation manual, included with every unit.
Certificate of completion
Issued after training — useful documentation for your clinic’s records and staff onboarding.
Ongoing support
Email & WhatsApp technical support with 24h response, plus free spare-parts replacement under warranty.

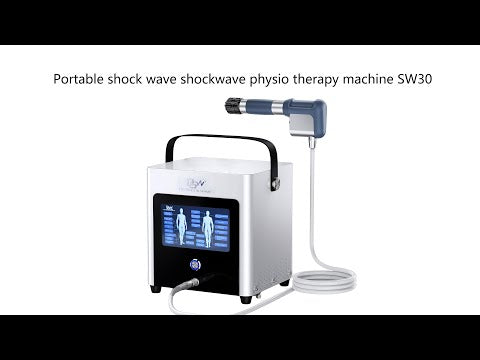

Product & Setup Video
What’s in the Box
- 1 × SW30 Main Machine
- 1 × Pneumatic Shockwave Handle
- 2 × Bullet System
- 1 × Spare Massage Head
- 1 × Protective Hard Case
- 1 × Power Cord
- 1 × Cleaning Brush & Rod · 1 × Tweezers · 1 × Steel Pipe
- 4 × Yellow Colloids · 10 × Sealing Rings
- 1 × User Manual & Clinical Protocol Guide
OEM & Wholesale
We support OEM and logo customization — your clinic or distributor logo can be added to the machine body and startup screen. Volume pricing available for distributors. Contact us to discuss.
Frequently Asked Questions
What is the maximum energy output?
Up to 10 Bar pneumatic ballistic output, step-adjustable down to 1 Bar for low-energy protocols.
How many treatments before the device pays for itself?
Roughly 17–34 sessions at typical $50–$100 billing, depending on your local rates. Many clinics treat several patients per day, so payback is often within weeks of regular use.
What conditions is shockwave best supported by evidence for?
The strongest published signal is for calcific rotator cuff tendinopathy. There is supportive but modest evidence for other tendinopathies, mixed evidence for plantar fasciitis, and promising-but-limited evidence for low-intensity protocols in erectile function. See the Clinical Evidence section above for sources.
Can the SW30 be used for men’s health / erectile function?
Yes. The SW30 includes dedicated low-intensity settings (commonly 2–4 Bar, 3–6 Hz) used in clinical protocols to support erectile function and men’s sexual wellness. This is a wellness application performed by trained clinicians; published meta-analyses on low-intensity shockwave for erectile function are summarized objectively in the Clinical Evidence section above.
How often should treatments be performed?
Commonly 1–3 times per week, with most courses running 3–5 sessions per indication. Spacing allows tissue to respond between treatments.
Does it need water maintenance?
No. The SW30 uses air cooling with an automatic drainage system, so there is no manual water upkeep between sessions.
Is training included?
Yes — free 1-on-1 online training, a written clinical protocol guide, a certificate of completion, and ongoing email/WhatsApp support.
What certification and warranty does it carry?
CE + RoHS certified, with a 2-year warranty on the host and free spare-parts replacement. Free worldwide shipping via DHL/FedEx/UPS in a protective case.
What type of shockwave system is the SW30?
It is a ballistic pneumatic (radial) shockwave system. Compressed air accelerates a projectile inside the handle against a transmitter, generating a radial pressure wave delivered into the tissue through the probe head.
What compressor does it use, and is it medical-grade?
The SW30 uses a genuine Thomas-brand compressor. It is a medical-grade compressor, with pressure adjustable from 1 to 10 Bar. Please check the attached product images for the manufacturer label.
Are spare bullets, O-rings, and internal parts replaceable?
Yes. The bullet and O-rings are housed inside the handle and are replaceable wear parts. Machine Internal parts are covered for 2 years — if a covered part fails, we ship the replacement to you free of charge.
What does a replacement handpiece cost?
A replacement handpiece is $600 per unit. With proper maintenance, a handle can be expected to last at least 5 years in normal clinic use, since the handle itself has no fixed shot limit — only the internal bullet is rated by shot count and is replaceable.
Can the SW30 run continuously for 30–60 minutes without overheating?
If operated continuously for 30 minutes, the handle will get hot, but the machine will not stop or give an alarm. You can continue operating, or let the handle cool down.
Is spare-parts support available in the United States?
We do not have an office in the USA, so spare parts and replacement units are shipped from China to your location, including New York. Lifetime technical consultation is included to support diagnosis and replacement.
Do you offer OEM customization?
Yes. For OEM, we can talk about the design, the program, and the parts that you require. Contact us to start the conversation.
