SA10F-V Professional Vertical Pressotherapy Machine
The floor-standing version of our full-body air-compression system — a wheeled vertical console with a top-mounted touchscreen, paired with a 12-chamber jacket and 24-chamber pants (36 airbags total) that work together for full-body sessions or independently for targeted work. Six programmable modes, infrared heat, and a professional clinic presence that rolls room to room.
The SA10F-V is the floor-standing edition of our full-body pressotherapy (air-compression) device, designed for clinics and medspas that want their equipment to look as professional as the service. The wheeled vertical console with a top-mounted touchscreen reads as serious clinical kit the moment a client walks in — and that perceived quality is part of what lets a premium spa command premium prices. Functionally it delivers the same rhythmic, sequential compression as our tabletop model: a 12-chamber jacket and 24-chamber pants (36 airbags) that run together for full-body work or independently for targeted sessions. Prefer a compact unit for a smaller room or a mobile setup? See our desktop SA10F instead.
Below is everything you need for a confident purchase: how it works, what the research on the compression-therapy category actually shows (objectively, including its limits), the six modes, treatment protocols, contraindications, and the business case for adding it to your menu.
Why Premium Clinics Choose the Vertical Console
A console that signals quality
A floor-standing cabinet with a top-mounted touchscreen looks like serious clinical equipment. That professional presence reassures clients and supports premium pricing — the machine sells the service before you say a word.
Rolls room to room
Built-in wheels let one console serve multiple treatment rooms. Park it where the day's bookings are, with no tabletop to clear and no fixed install.
Ergonomic at standing height
The raised screen sits at a comfortable working height, so your therapist sets pressure, mode and time without bending over a desktop unit between clients.
Whole-body service menu
12-chamber jacket (arms, shoulders, waist, back) + 24-chamber pants (hips to feet) — 36 airbags. Sell full-body, upper-body or lower-body sessions from one console.
6 modes + infrared heat
Six inflation programs (A–F) plus adjustable infrared warming (0–75℃) — the full range of drainage, recovery and relaxation protocols in one machine.
Two finishes to match your room
Console and suit available in silver-grey or black — choose the look that fits your clinic's interior. Durable, high-end fabric built for daily professional use.
How Pressotherapy Works
Whichever console format you choose, the therapy works the same way: the SA10F-V's multi-chamber garments inflate sequentially from the distal body (feet, hands) toward the core, creating a peristaltic-like pressure wave. The mechanisms studied for the intermittent pneumatic compression (IPC) category include:
- Enhanced venous & lymphatic return — rhythmic compression is associated with moving fluid toward the heart and supporting drainage.
- Improved local circulation — sequential inflation is studied for augmenting blood flow in the limbs.
- Reduced fluid pooling & swelling — compression limits the space for fluid to accumulate, helping reduce the feeling of heaviness.
- Faster waste clearance after exertion — improved fluid exchange is the proposed mechanism behind its use in sports recovery.
What the Research Says (Compression-Therapy Category)
The following summarizes peer-reviewed research on intermittent pneumatic compression (IPC) as a therapy category — not on this specific device. Presented objectively, including its limitations, so your team can set realistic client expectations.
Lymphatic drainage & limb swelling
- A 2018 systematic review found moderate-quality evidence that IPC can produce meaningful outcomes at dosage times of 45–60 minutes using pressures around 30–60 mmHg in sequential programs. A 2021 pilot trial found IPC reduced lower-limb volume and improved quality of life, with sequencing that mimics manual lymphatic drainage outperforming traditional graduated compression.
- Results are often transient — limb volume tends to rebound after sessions stop, so ongoing, regular treatment is needed to maintain effects, and benefits in advanced/chronic lymphedema can be limited.
Sources: Phillips & Gordon, IPC dosage systematic review 2018 (PMID 30339493); lower-limb IPC pilot trial 2021 (PMID 34883036). Some meta-analyses find no clear added benefit over standard care alone (PMID 24732640) — evidence is mixed and protocol-dependent.
Sports recovery & muscle soreness
- A 2024 systematic review & meta-analysis (17 studies) found lower-limb IPC offers a trivial-to-small benefit for muscle function and a trivial-to-moderate effect on pain/soreness, with highly variable effects on muscle-damage markers — common protocols run ~20–30 min at ~80 mmHg.
- In short: clients often report feeling less sore and more recovered, but objective performance data is modest and inconsistent. It's a useful comfort/recovery tool, not a guaranteed performance enhancer.
Source: lower-limb IPC sports-recovery systematic review & meta-analysis (PMC11475002).
The 6 Working Modes
The vertical console gives you the same six inflation programs as our desktop unit, selectable from the top-mounted screen. Each numbered section (1–12) is a pair of chambers (left & right) that work together; match the program to the client and goal:
| Mode | Name | How it works |
|---|---|---|
| A | Sequential single-pair | Each pair inflates/deflates one by one, from No.1 to No.12 — one pair active at a time. |
| B | Progressive accumulation | Starts at pair 1, then adds the next in sequence (1 → 1+2 → 1+2+3 …) until all pairs are inflated. |
| C | Paired-zone | Inflates in grouped pairs: 1+2 → 3+4 → 5+6 → 7+8 → 9+10 → 11+12. |
| D | Full inflation | All pairs inflate simultaneously. |
| E | Alternating single + full | Combines Mode A and D: sequential single-pair inflation with full-inflation intervals. |
| F | Alternating zone + full | Combines Mode C and D: paired-zone inflation with full-inflation intervals. |
Treatment Protocols by Use
Starting-point parameters commonly used in practice and reflected in the literature. Adjust to client comfort and your training — these are reference ranges, not prescriptions.
| Use | Garment | Suggested mode | Time | Frequency |
|---|---|---|---|---|
| Lymphatic drainage / detox program | Full body or pants | A or B (sequential) | 30–45 min | 2–3×/week |
| Leg fatigue / circulation | Pants | A or C | 20–30 min | As needed |
| Upper-body / arm recovery | Jacket | A or C | 20–30 min | As needed |
| Sports recovery (post-workout) | Pants or full body | C or F | 20–30 min | After training |
| Relaxation / wellness (with heat) | Full body | B or E + infrared | 30 min | Flexible |
Contraindications & Safety
Do NOT use on the following without specialist clearance
- Pregnancy & menstruation
- High blood pressure (hypertension)
- Known or suspected DVT / thrombophlebitis
- Acute or recent thrombosis
- Internal or external hemorrhage
- Acute feverish or inflammatory states
- Renal or liver failure
- Late-stage varicose veins
- Cardiovascular collapse / cardiac edema
- Vascular, aortic or cardiac aneurysm
- After recent heart attack or stroke
- Severe arteriosclerosis / ischemic vascular disease
- Fractures or dislocations near the area
- Pulmonary edema
- Diabetic micro-/macroangiopathy
- Skin injuries, dermatitis, infected wounds
- Malignant or growth-prone tumors
- Electronic medical implants (e.g., pacemakers)
- Gangrene or recent skin grafts
- Any pain or numbness during use
Technical Specifications
| Performance | |
| Type | Full-Body Air-Compression Pressotherapy + Infrared Heat |
| Console Format | Vertical floor-standing cabinet with wheels + top-mounted screen |
| Total Airbags | 36 (Jacket 12 + Pants 24) |
| Working Modes | 6 Modes (A / B / C / D / E / F) |
| Air Pump | 90 kPa |
| Max Air Pressure | 360 mmHg |
| Air Flow Rate | 60 L/min |
| Infrared Heating | 0–75℃ adjustable |
| Time Setting | ≤90 min (default 30 min) |
| Garments | |

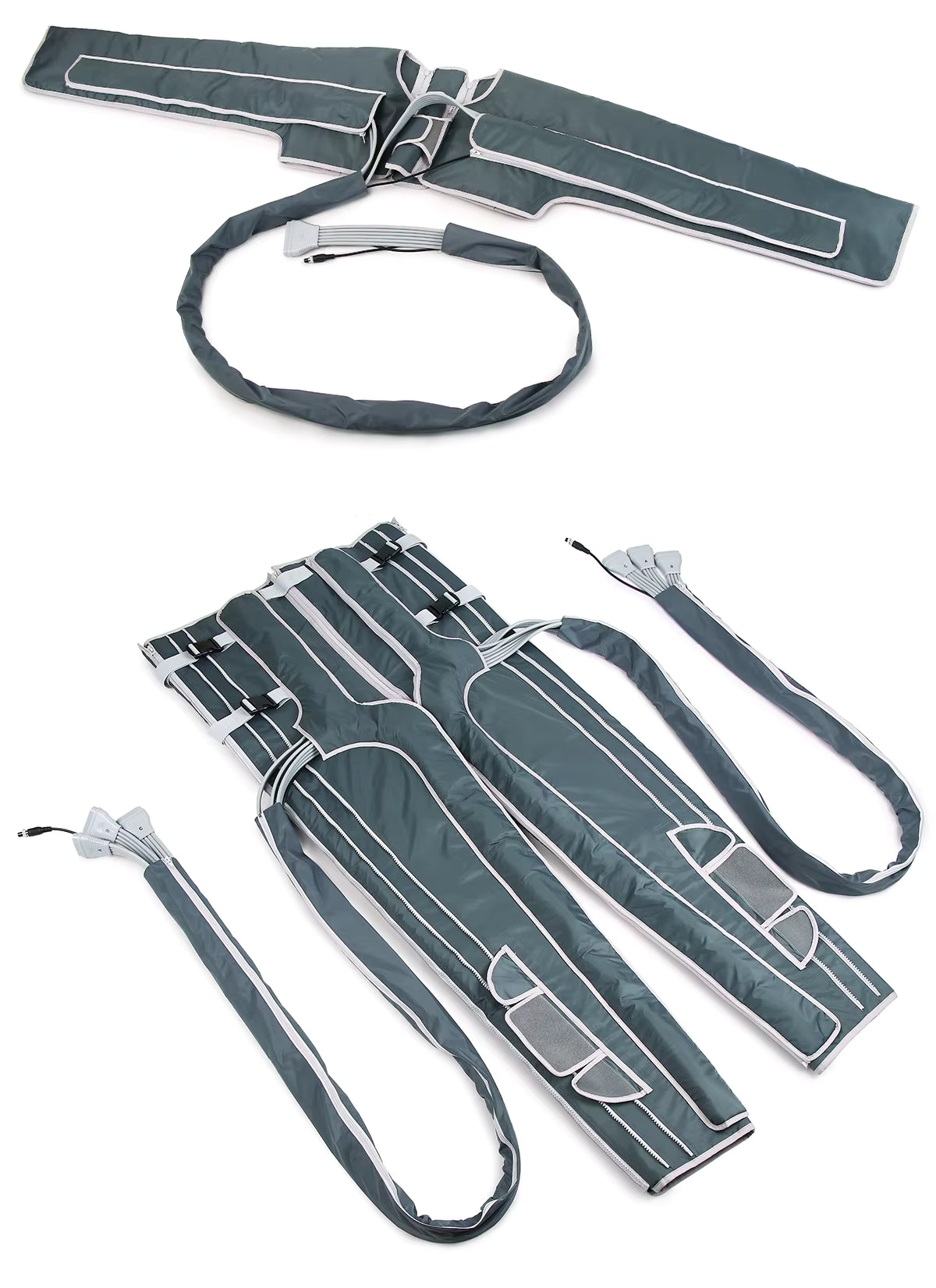

| Suit | Jacket + Pants (work together or independently) |

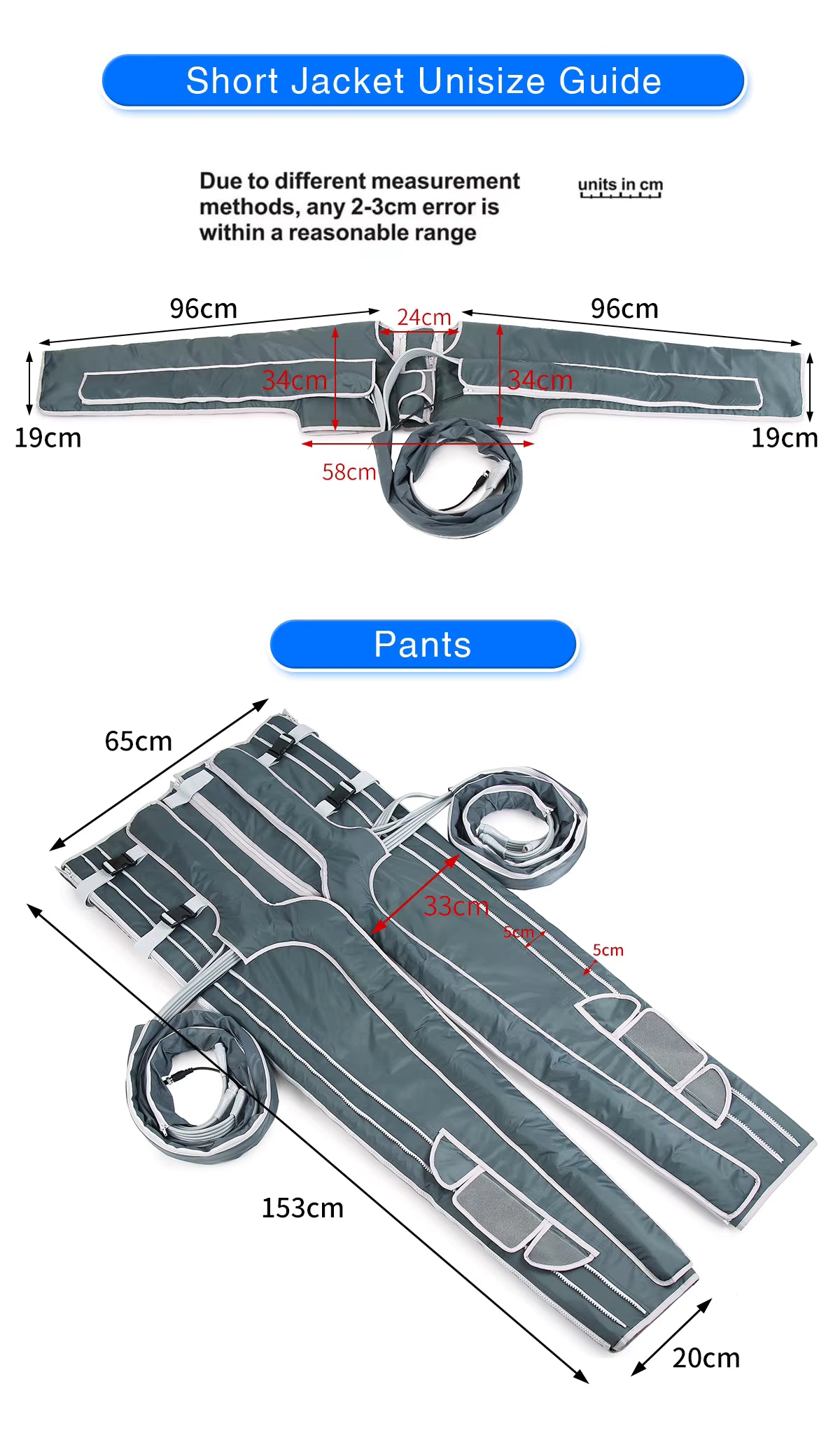

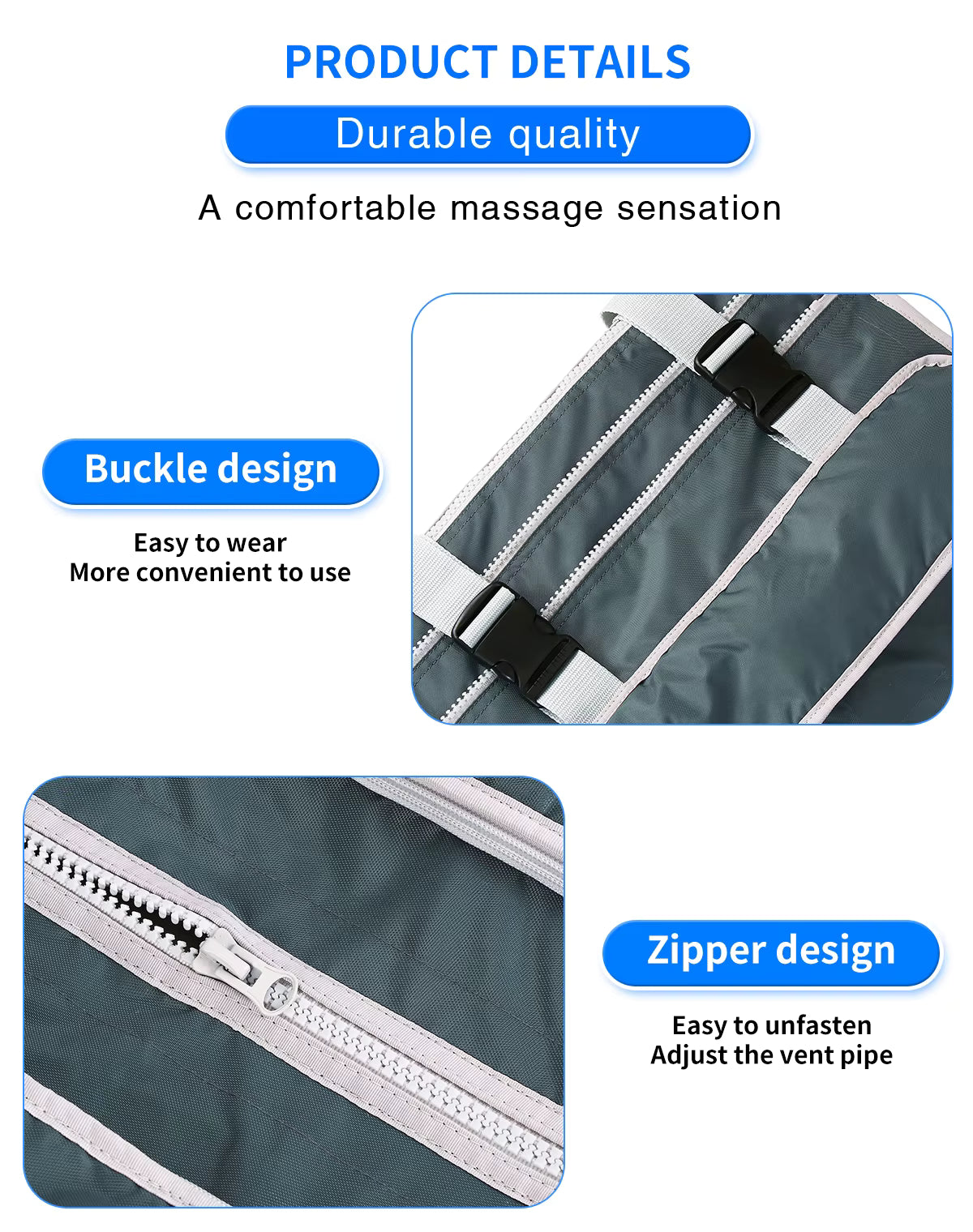

| Jacket | 12 air chambers, back zipper, tidy cable design |
| Pants | 24 air chambers, triple zippers, adjustable fit |
| Per-Zone Control | Each pair of chambers can work independently |

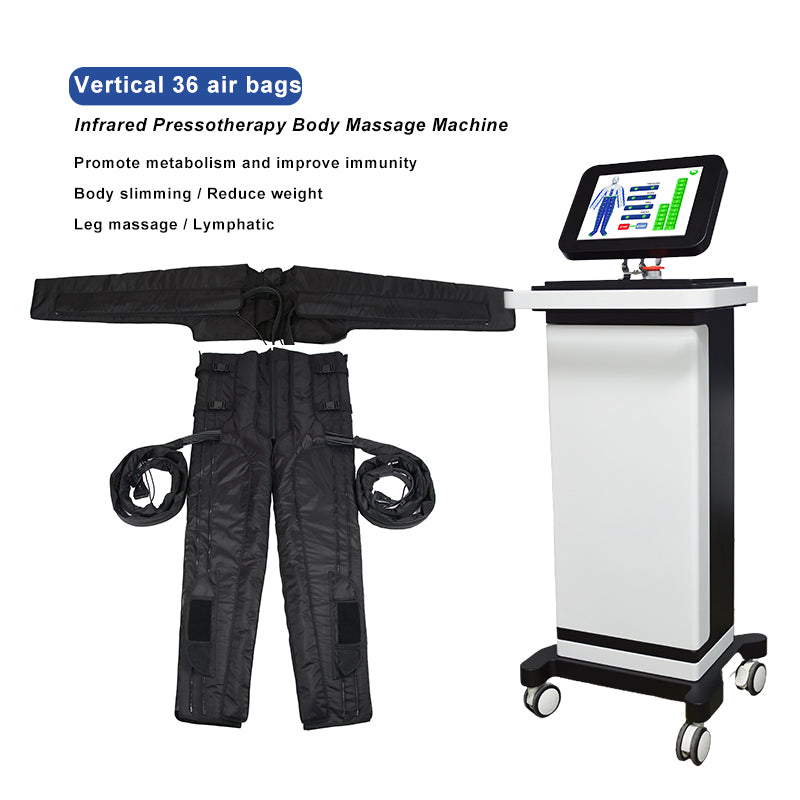

| Suit & Case Color | Silver-grey or Black |
| Screen | LCD touch interface |
| Power & Compliance | |
| Voltage | 110–240V / 50/60 Hz |
| Plug Options | US / EU / UK / AU |
| Certification | CE + RoHS |
| Warranty | 2 years (main unit) |
| Shipping | Free worldwide (DHL / FedEx / UPS); DDP available |
The Business Case
A floor-standing console does two jobs: it delivers the treatment, and it raises the perceived value of your clinic. Clients associate substantial, professional-looking equipment with expertise — which makes premium session pricing easier to justify. A full-body pressotherapy session commonly retails at $50–$120, often sold in packages or bundled with body and facial services.
Pricing figures are illustrative market ranges and vary by region and service menu — confirm against your local rates.
Training & Onboarding
Free online training
Live setup and usage guidance covering the 6 modes, pressure selection, suit fitting, infrared use, and maintenance.
Protocol & manual
Starting-point protocols by use case, plus the full operation manual, included with every unit.
After-sales service
As the manufacturer, we provide professional after-sales support and genuine spare parts.
Lifetime support
Email & WhatsApp technical support with 24h response — free for the life of the machine.
Installation & Setup Video
What's in the Box
- 1 × SA10F-V Vertical Console (floor-standing, with wheels)
- 1 × 12-Chamber Jacket
- 1 × 24-Chamber Pants
- 1 × Air Pipe
- 1 × Power Cord
- 1 × User Manual & Protocol Guide
Suit and machine case available in silver-grey or black — please specify your preferred color when ordering.
OEM & Wholesale
OEM / ODM available — add your brand logo to the control unit, suit, or start-up screen. Distributor programs and bulk pricing available. Contact us to discuss.
Frequently Asked Questions
How many airbags and modes does it have?
36 airbags in total — a 12-chamber jacket and a 24-chamber pants suit — with 6 working modes (A–F) ranging from single-pair sequential to full inflation.
Can the jacket and pants be used separately?
Yes. You can run a full-body session with both garments, or use the jacket alone for upper-body work or the pants alone for legs — giving you several service options from one machine.
What colors are available?
Both the suit and the machine case are available in silver-grey or black. Please specify your preferred color when you order.
Does it have infrared heating?
Yes. The SA10F-V includes adjustable infrared heating (0–75℃) that adds gentle warmth during compression, which many clients find more relaxing.
How long is each session?
Typically 20–45 minutes depending on the program; the timer supports up to 90 minutes (default 30). It's hands-free once running, so staff can attend to other clients.
Does pressotherapy cause weight loss?
No. The research supports it for helping lymphatic flow, reducing limb swelling and easing perceived soreness — it is not a weight-loss treatment. Effects are often temporary and benefit from regular sessions. Position it as wellness, recovery and comfort.
What certification and warranty does it carry?
CE + RoHS certified, with a 2-year warranty on the main unit, free online training, and ongoing email/WhatsApp support. As the manufacturer, we also provide after-sales service and spare parts.
Can you ship internationally, including the EU?
Yes — we ship worldwide via DHL/FedEx/UPS, with DDP (Delivered Duty Paid) available to the EU so import duties and taxes are prepaid with no surprise customs charges on arrival.
Does it really have 36 chambers?
Yes, real 36 chambers. The jacket has 12 chambers and the pants have 24 chambers.
Are there chambers on the back as well?
Yes. The chambers cover from foot to breast, including the back.
Can each airbag be controlled independently?
Yes, it could be controlled independently on the display program.
Are chambers controlled individually or as pairs?
Normally as pairs, but you could set individually on the display program.
Can I set different pressures for different chambers?
No, you cannot set different pressures for different chambers.
Does it support continuous operating time?
Yes.
Is the pump noisy?
No, it is a silent pump.
How long does it take to get ready, and what is the delivery time?
Ready time is 3 days. Delivery time is 7–8 days by DHL / FedEx.
If anything comes up after I receive it, can you help?
Yes. If you have any questions after you receive it, please contact us.
Are you the manufacturer?
Yes. You are welcome to visit us on a Zoom video meeting, or come to China to check if you can.
What's the difference between this and the desktop model?
The technology, garments and performance are the same — 36 airbags, 6 modes, infrared heat. This SA10F-V is the floor-standing version: a wheeled vertical console with a top-mounted screen that rolls between rooms and gives a more premium clinic presence. The desktop version is a compact tabletop unit for smaller spaces. Choose based on your room setup and the look you want.
Who should not use the SA10F-V?
Avoid use with pregnancy, high blood pressure, known/suspected blood clots (DVT), severe cardiovascular or arterial disease, active infection or open wounds, and the other conditions listed in the contraindications section above. Always screen clients first and refer to a physician when in doubt.
