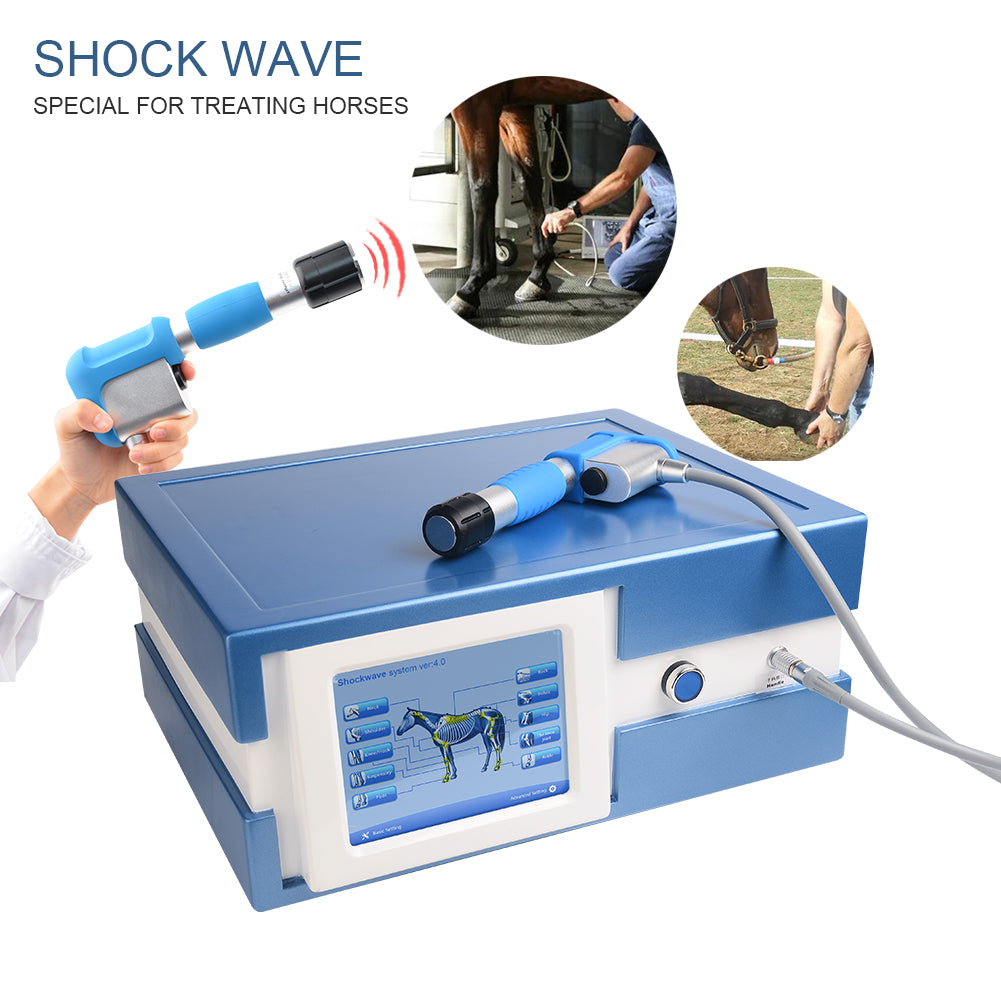

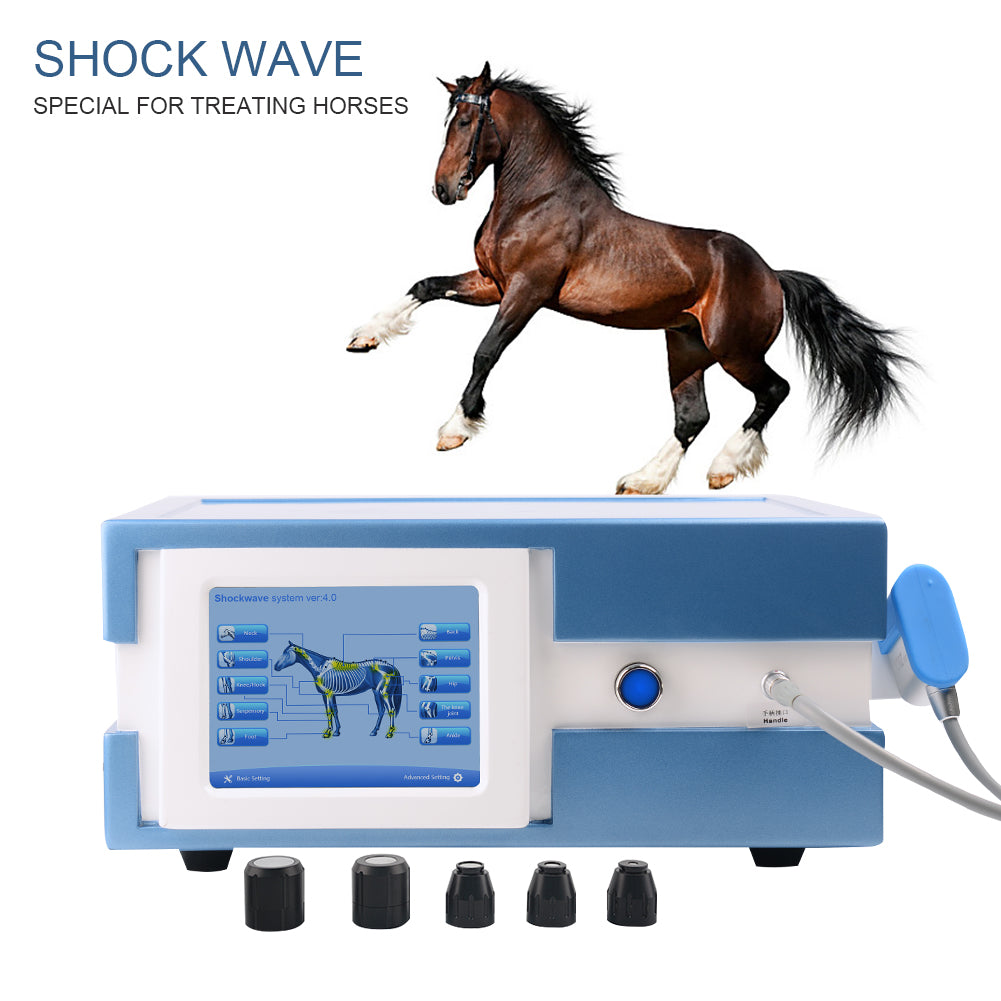

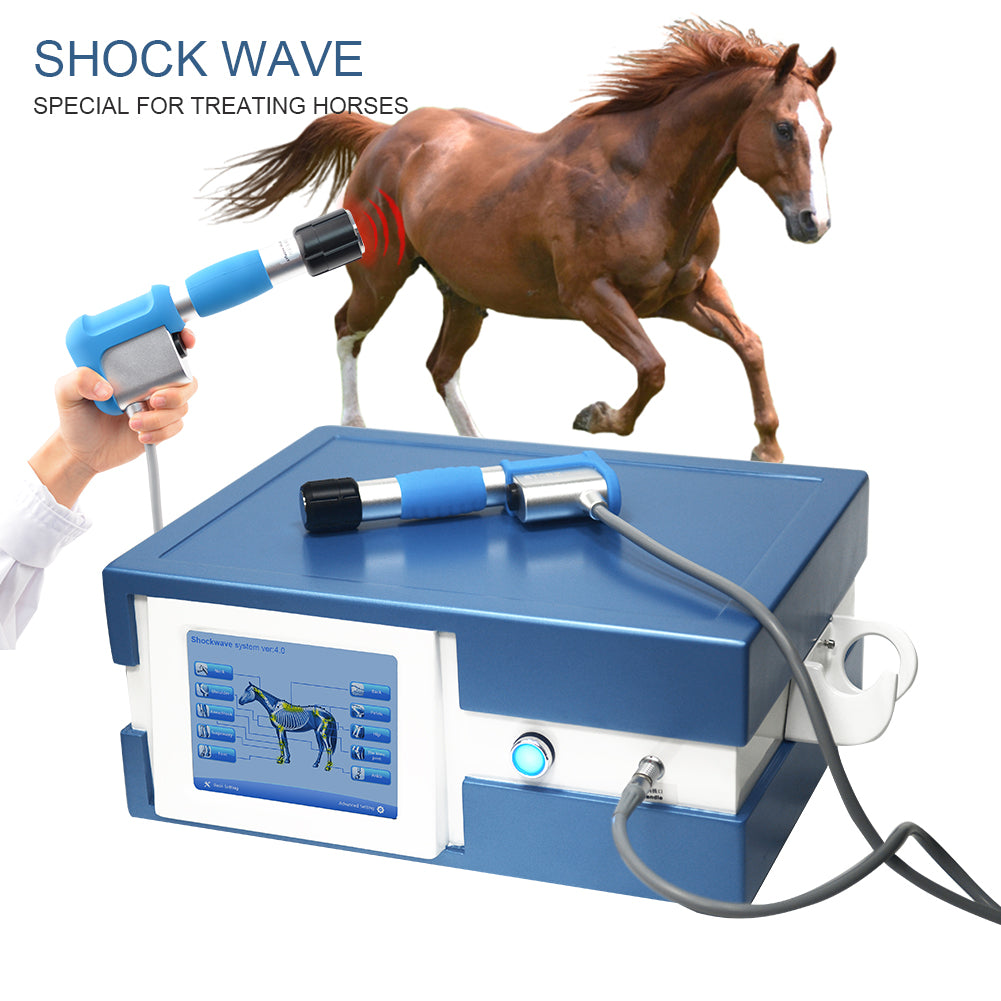

The SW13H is a professional pneumatic shockwave therapy system designed for pain relief, rehabilitation, physiotherapy, and veterinary applications. It uses the ballistic principle of compressed air acceleration to generate shockwaves with 0.5–8 Bar adjustable energy and 1–15 Hz frequency. These waves penetrate deep tissues, dissolving calcium deposits, improving blood circulation, stimulating collagen regeneration, and accelerating healing.
With 10 preset treatment modes, multi-language interface (English & Spanish), and applicator heads for different zones, it is suitable for both human physiotherapy clinics and veterinary use (especially equine tendon and ligament rehabilitation).
Installation Video
Specifications
| Specification | Details |
|---|---|
| Model | SW13H |
| Shockwave Type | Pneumatic Ballistic |
| Energy | 0.5–8.0 Bar (Foot energy: 0.5–2.0 Bar) |
| Frequency | 1–15 Hz |

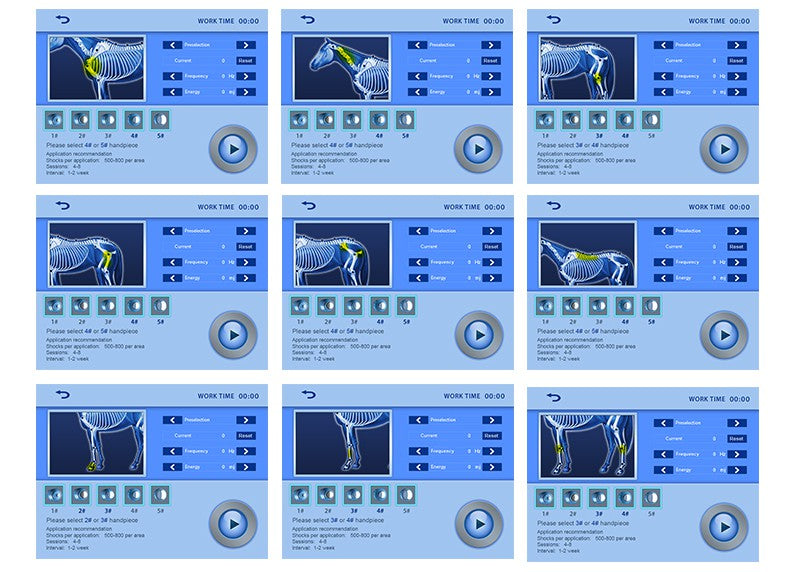

| Modes | 10 Preset Modes |
| Impacts | 100–9900 Preselection |
| Handle Lifespan | 2 million+ shots (bullet replacement required) |
| Screen | Touchscreen Control |
| Languages | English, Spanish |
| Package Size | 47 × 36 × 20 cm |
| Weight | 25 kg |
| Voltage | 110V–220V, 50/60Hz |
Key Advantages
- Adjustable Power: 0.5–8 Bar, suitable for both human physiotherapy and veterinary treatment.
- Wide Applications: Pain relief, tendon & ligament injuries, musculoskeletal rehab, equine medicine.
- Durable Handle: Up to 2 million shocks per bullet with easy replacement.
- Touchscreen Interface: 10 preset modes with intuitive control.
- Multi-Language: Supports English and Spanish operation.
- Veterinary Use: Proven for horse tendon, ligament, and musculoskeletal rehabilitation.
Principle
The SW13H generates pneumatic ballistic shockwaves using compressed air acceleration. These waves are transmitted through applicator heads into tissue, creating biological effects such as enhanced circulation, collagen stimulation, calcium deposit dissolution, and pain relief. Widely applied in both human and veterinary medicine, especially equine rehabilitation.
How to Use
- Apply conductive gel to treatment area.

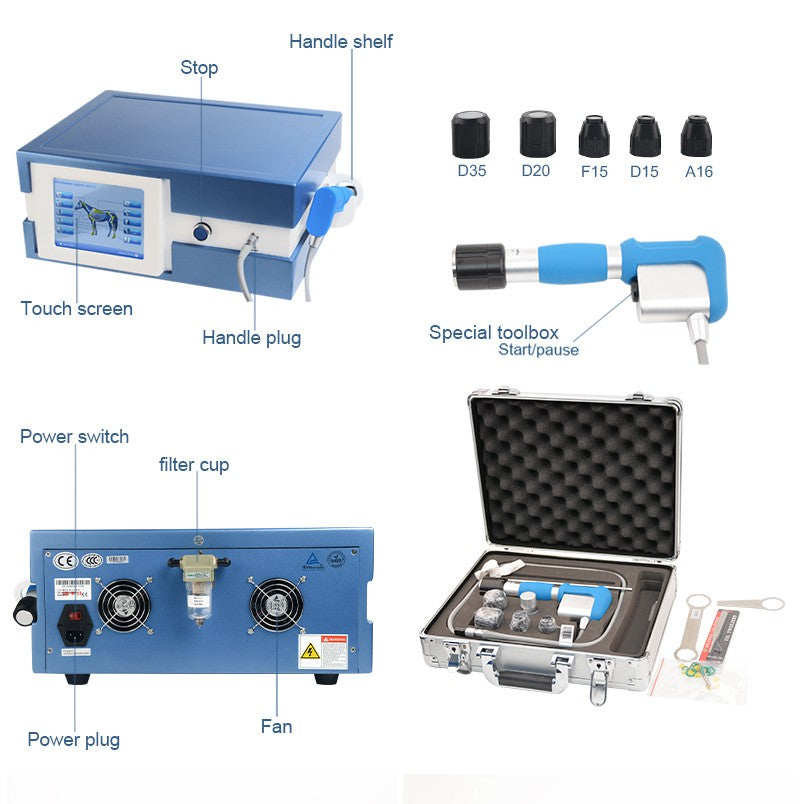

- Select appropriate applicator head (5 included).
- Set parameters: 0.5–8 Bar, 1–15 Hz, and shocks (100–9900).
- Place applicator on target area and press start.
- Deliver 800–2000 shocks per session, 15–20 minutes each.
- Clean applicator head after treatment.
Typical Applications
- Human therapy: plantar fasciitis, tendonitis, frozen shoulder, tennis elbow, chronic pain
- Veterinary therapy: horse tendon injuries, ligament sprains, navicular syndrome
- Sports rehab: muscle stiffness, joint injuries, mobility support
- Trigger point therapy: sore muscles, back pain, neck pain
- Orthopedic care: bone healing support, arthritis-related pain
Warranty & Support
2-year warranty for the main unit.
24/7 online technical support.
Training
Free 1-on-1 online training.
Certificate provided after completion.
Shipping
Worldwide delivery via FedEx / DHL / UPS.
DDP door-to-door service available on request.
CUSTOMIZATION & WHOLESALE
We support logo customization and can add your brand logo to the machine body and/or the start-up screen for wholesale orders.
FAQ
Q: What is the maximum pressure?
A: The SW13H delivers up to 8 Bar (0.5–8 Bar adjustable).
Q: How many applicators are included?
A: Five applicator heads for different therapy zones.
Q: What is the handle lifespan?
A: The handle supports 2 million+ shots; replace bullet after that.
Q: Can this machine be used for horses?
A: Yes, the SW13H is widely applied in equine tendon & ligament therapy.
