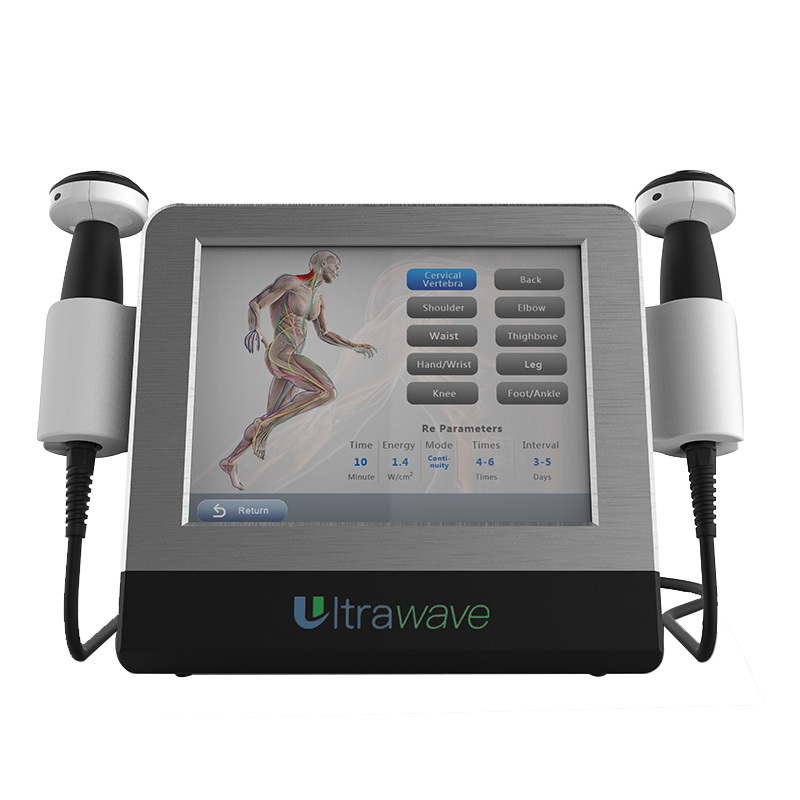

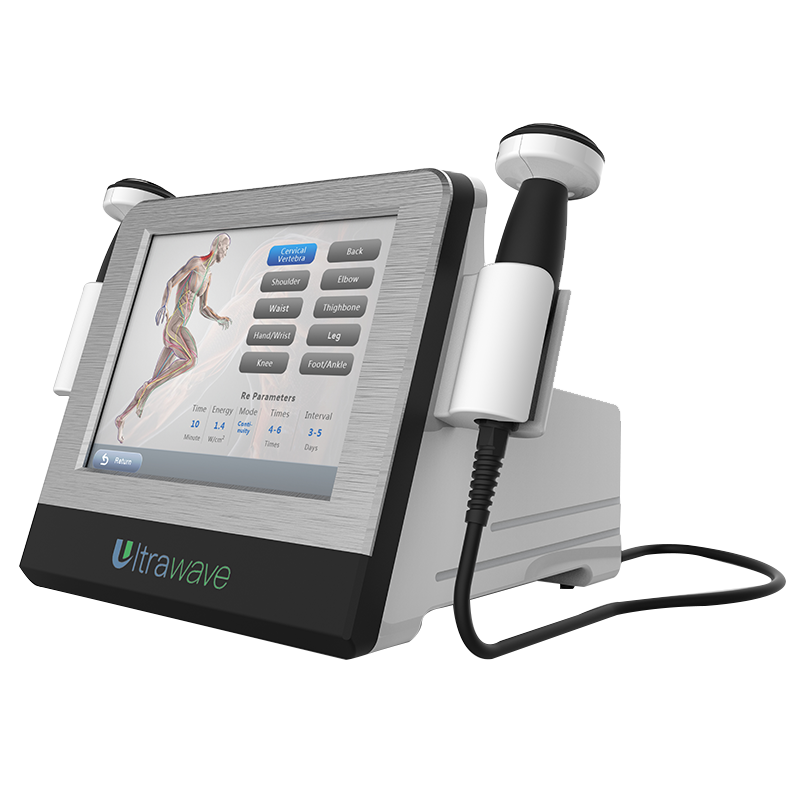

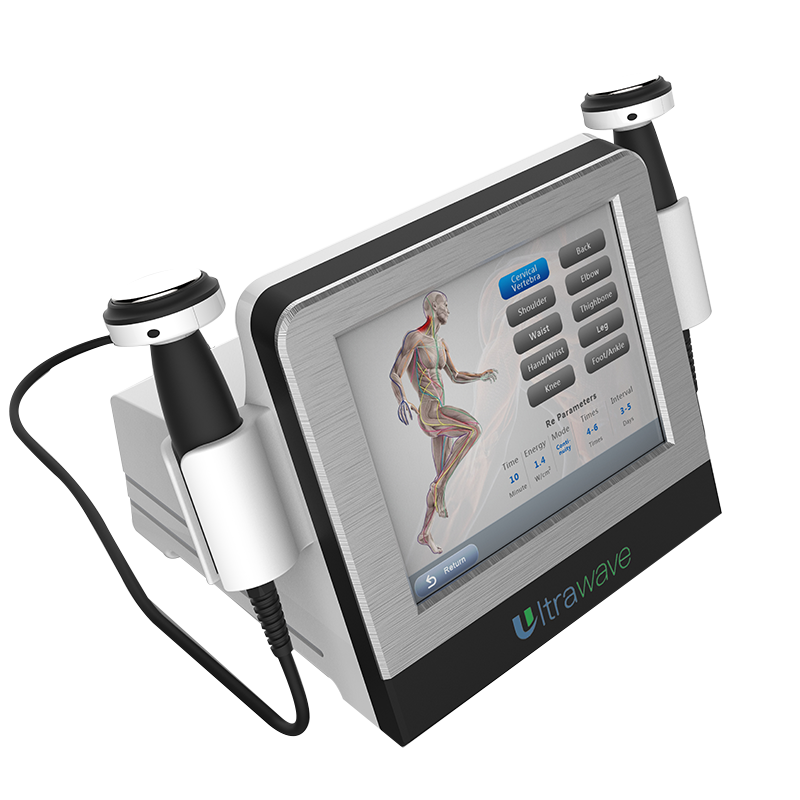

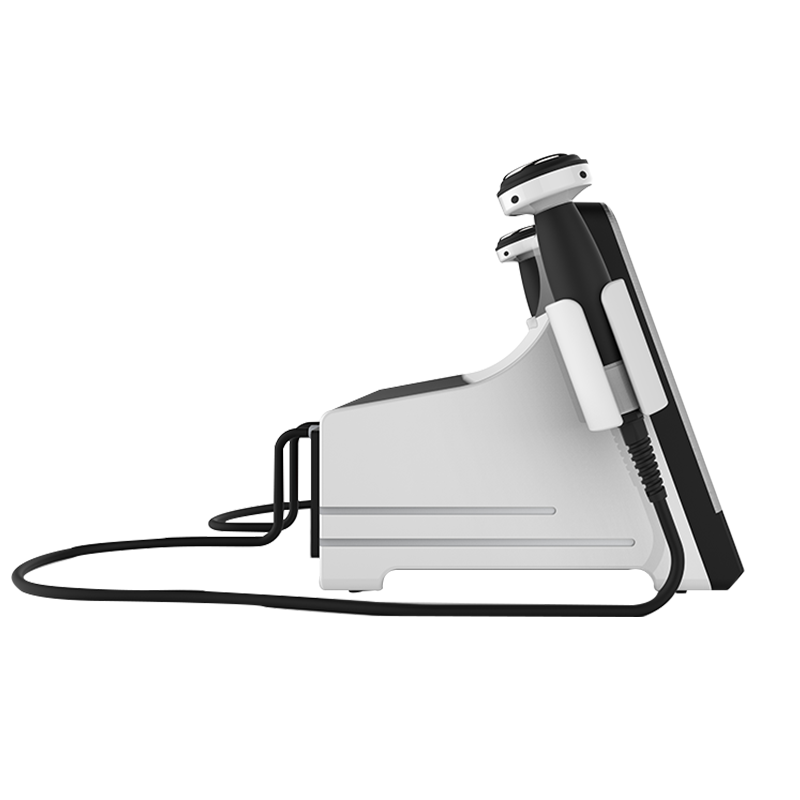

The Ultrawave is a professional double-channel ultrasound therapy system designed for pain relief, rehabilitation, and physiotherapy. Equipped with two handpieces that can work simultaneously or alternately, it delivers adjustable ultrasound energy of 0.2–3W/cm² at 1 MHz, with a penetration depth of 3–5 cm, making it highly effective for treating soft tissue injuries, chronic pain, and musculoskeletal conditions.
10 preset treatment zones and a touchscreen interface provide guided protocols, ensuring safe and efficient therapy sessions in clinics and rehabilitation centers.

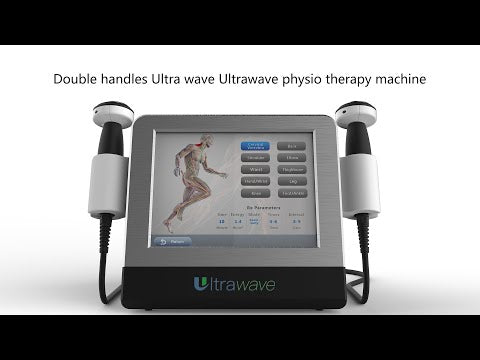

Installation Video
Specifications
| Specification | Details |
|---|---|
| Model | Ultrawave |
| Voltage | AC110–240V |
| Frequency | 1 MHz |
| Energy | 0.2–3 W/cm² |
| Penetration Depth | 3–5 cm |

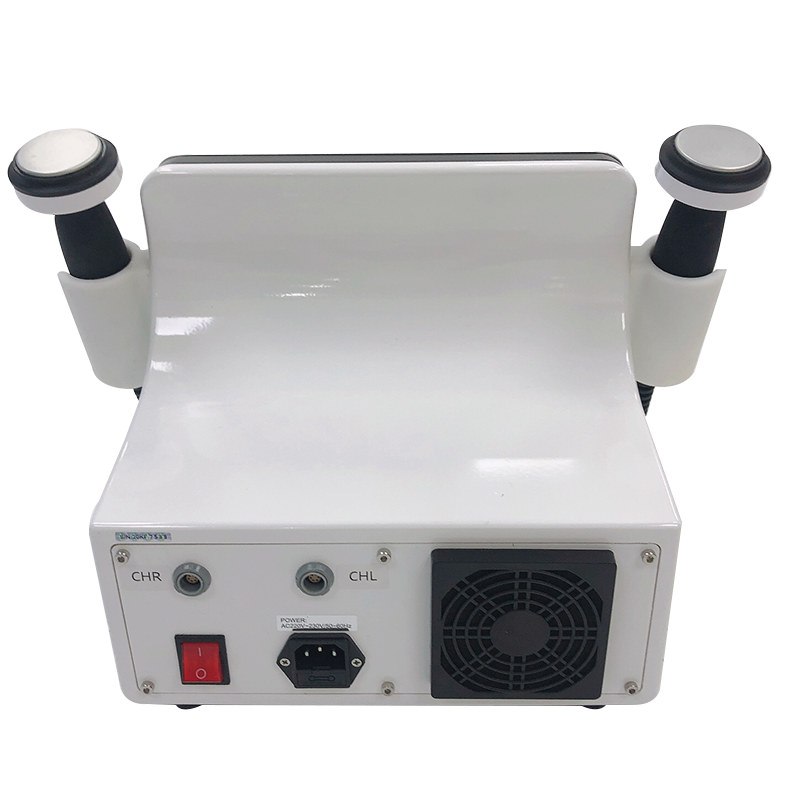

| Handles | 2 ultrasound handpieces (dual-channel) |
| Package Size | 390 × 390 × 370 mm |
| Package Type | Alu Box + Carton |
Key Advantages
- Double Channels: Two handpieces work simultaneously or alternately for efficient treatments.
- Deep Penetration: 3–5 cm penetration depth for effective tissue therapy.
- Preset Programs: 10 body zones with automatic treatment parameters.
- Adjustable Power: 0.2–3 W/cm² energy with thermal & non-thermal modes.
- Compact Design: Portable unit with alu box packaging for clinics and mobile use.
Principle
The Ultrawave uses high-frequency ultrasound vibrations to deliver thermal and non-thermal effects in soft tissues. The applicator transmits acoustic power through gel into the skin, creating microscopic stimulation that increases blood circulation, accelerates metabolism, relieves pain, reduces inflammation, and promotes tissue repair.
How to Use
- Apply ultrasound gel to the treatment area.
- Insert handpiece into output jack and connect power cord.
- Turn on the system, select treatment zone on the screen.
- Adjust intensity (0.2–3 W/cm²) and treatment time (5–10 minutes).
- Move the applicator slowly in circular motions during therapy.
- Clean the applicator head after each session.
Typical Applications
- Soft tissue injuries: strains, sprains, muscle inflammation
- Joint conditions: osteoarthritis, bursitis, tendonitis
- Pain management: chronic pain, plantar fasciitis, myositis
- Rehabilitation: muscle recovery, scar tissue reduction, fracture healing
- Sports therapy: injury recovery, mobility support
What’s in the Box
- 1 × Ultrawave Main Unit
- 2 × Ultrasound Handpieces
- 1 × Handpiece Supporter
- 1 × Power Cord
- 1 × Screwdriver + Screws
- 1 × User Manual (English)
- 1 × Aluminum Box + Carton Package
Warranty & Support
2-year warranty for the main unit.
24/7 online technical support.
Training
Free 1-on-1 online training.
Certificate provided after completion.
Shipping
Worldwide delivery via FedEx / DHL / UPS.
DDP door-to-door service available on request.
CUSTOMIZATION & WHOLESALE
We support logo customization and can add your brand logo to the machine body and/or the start-up screen for wholesale orders.
FAQ
Q: Can both ultrasound handpieces work at the same time?
A: Yes, the Ultrawave supports dual-channel operation.
Q: What is the penetration depth of ultrasound therapy?
A: 3–5 cm, suitable for deep soft tissue and musculoskeletal treatment.
Q: Do I always need gel?
A: Yes, ultrasound must be used with gel to ensure effective energy transfer.
Q: Can it treat osteoarthritis and plantar fasciitis?
A: Yes, preset protocols include these common conditions.
